7P1820741AP Refrigerant Line
- 7P1820741SNot stocked
Jun 2014 - 7P1820741APThis pageNot stocked
Aug 2014 - 7P1820741BGNot stocked
Jul 2017 - 7P1820741CBCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

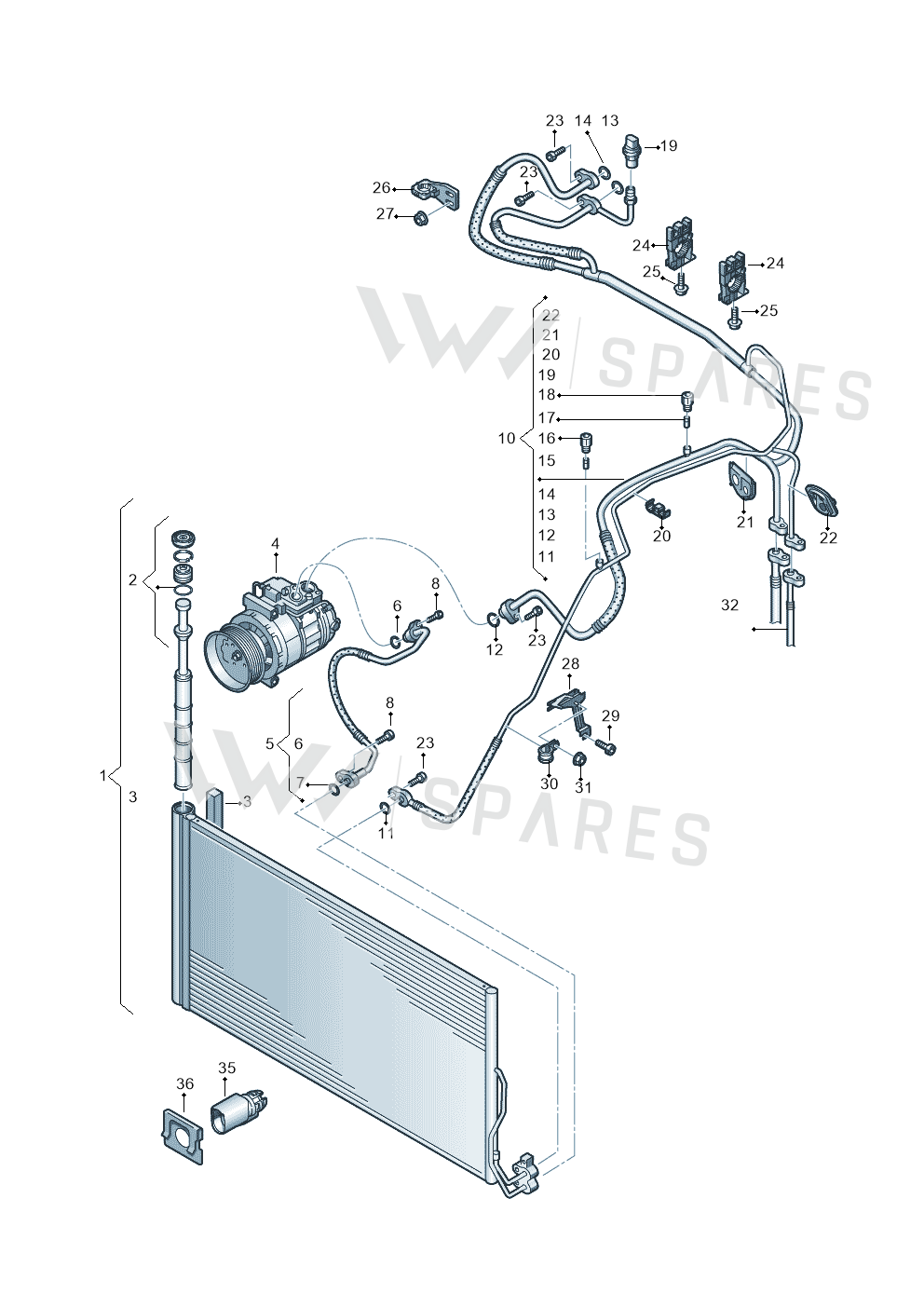

2 vehiclesRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly30
- 1Condenser 7P0820411A
- 2Drier 7P0898191
- 3Seal 7P0820877
- 5Line 7P0820721H
- 6Seal Ring 4E0260749A
- 8Screw N10414402
- 10Line 7P1820741BG
- 10Line 7P2820741AK
- 10Line 7P2820741AL
- 10Line 7P1820741BH
- 11Seal Ring 3D0260749C
- 12Seal Ring 8E0260749C
- 14Seal Ring 4E0260749B
- 15Valve 8E0820855
- 16Part 3C0820581
- 18Part 3C0820231
- 19Pressure 4H0959126A
- 20Bracket 8E0260759AD
- 21Grommet 7P0820667
- 22Grommet 7P0820668
- 24Clip 7P0820055B
- 25Bolt N91123501
- 26Clip 7P0820055A
- 27Collar Nut N90455301
- 28Bracket 7P0820893A
- 29Bolt N91096701
- 30Clamp N0206015
- 31Collar Nut N01508210
- 35Sensor 8Z0820535
- 36Bracket 6Q0971845C
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| touareg | 2012-2014 | 10 | 1 | PR:9AD,KH4 | |
| touareg | 2010-2012 | 1 | 1 | PR:KH4 | L0L |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: touareg 2012-2014; touareg 2010-2012.
