80A616013 Valve Unit
- 80A616013This pageNot stocked
Mar 2020 - 80A616013ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

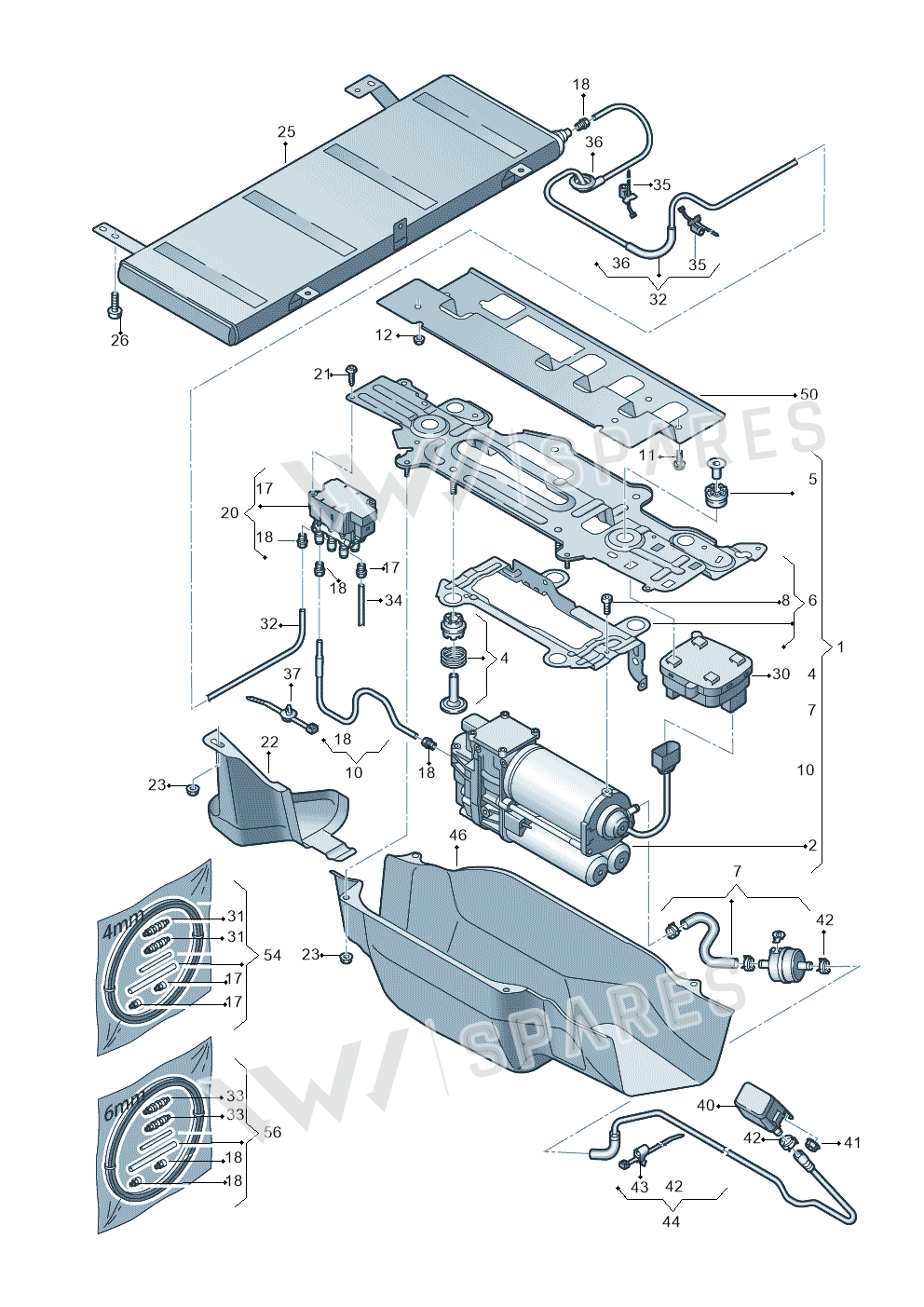

1 vehicleValve Unit — locate Valve Unit in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Assembly 80A616005F
- 1Assembly 80A616005E
- 4Repair Kit 80A698505
- 5Repair Kit 80A698649
- 6Repair Kit 80A698999
- 7Repair Kit 80A698030
- 10Part 80A616703
- 11Bolt N91207001
- 12Ut"hex Nut Self-locking With Washer Hex Nut N90570805
- 17Connection 4B0616751
- 18Connection 7L0616758
- 20Valve Unit 80A616013A
- 21Screw N10721401
- 22Part 80A616113A
- 25Press Res 80A616203B
- 26Screw N90921801
- 30Control Unit 4M0907778
- 31Connection 4F0616241
- 33Connector 7L0616829
- 35Cable Tie 3D0971838A
- 36Grommet 8K0971841
- 37Cable Tie 6H0957818
- 37Cable Tie 4F0971850A
- 40Exhaust Si 80A616010A
- 41Part N90495301
- 42Clamp N90686701
- 43Cable Tie 6Q0971838C
- 44Hose 80A616091A
- 46Plate 80A616105C
- 50Plate 80A802397A
- 54Rep Set 4M0698141
- 56Spacer 4G0611853
- 56Rep Set 4M0698141A
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Audi Q5 | 2016-2020 | 20 |
Diagrams & fitment data powered by oemdiagrams.com
Valve Unit is fitted on: Audi Q5 2016-2020.
