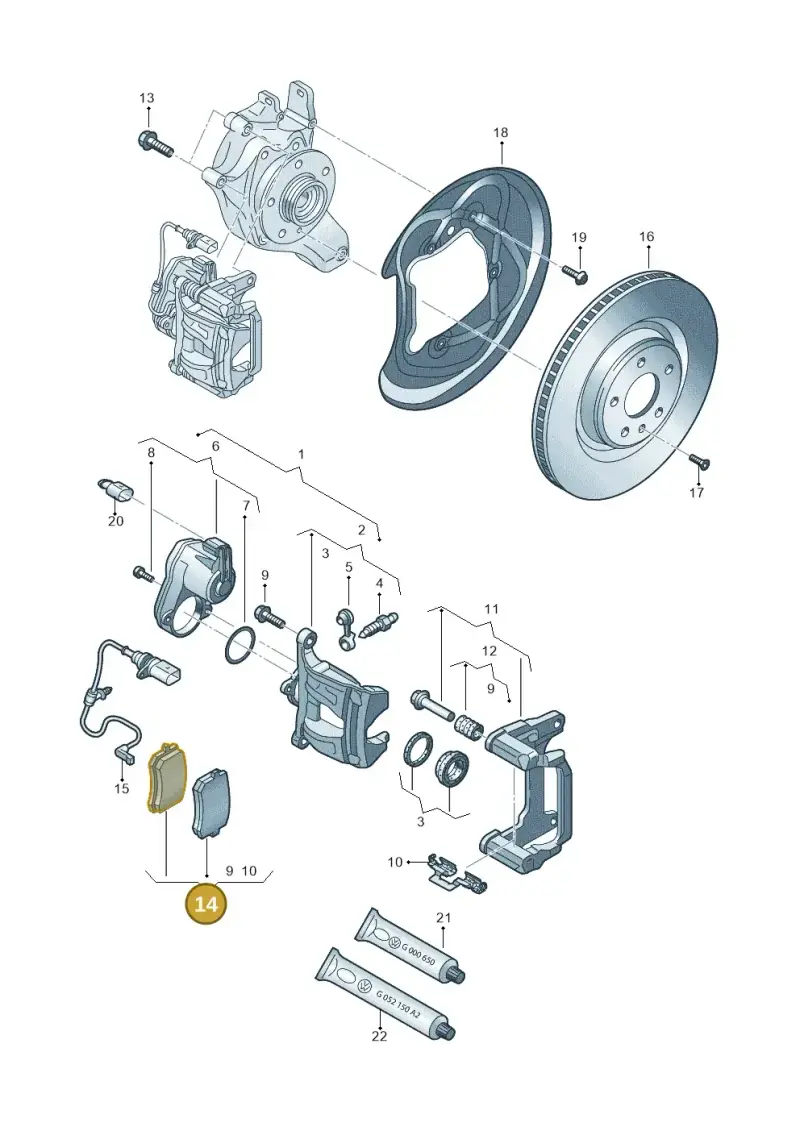

Number 14 marks the part’s position in the exploded view (Audi A6 (2018-2025)).
Product overview
Genuine OEM Audi 1 Set of Brake Pads for Disk Brake, part number 80A698451P. Fits Audi A6 (2018-2025), Audi A7 Sportback (2018-2025), Audi Q5 (2016-2025). Shown as position 14 in the wheels and brakes diagram 849615600.
Catalogue entry: BR. LINING rear; also use: 80A 615 121; 4K0 615 231 ×4; WHT 010 085 ×4.
Use with: 80A615121, 4K0615231 (×4), WHT010085 (×4). Fitted with: N91041702 bolt, N91126801 bolt, 80A615121 SENDER, 80A615601B BRAKEDISC, N10648301 BOLT, G000650 PASTE, G052150A2 GREASE, 8W0615403M Housing, 8W0615403MSL7 GREY, 8W0615404M Housing, 8W0615404MSL7 GREY.
Technical details
- Category
- Brakes
- Diagram sheet
- Audi 849615600, position 14
- ETKA group
- 6 / 15 (615)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 300x12 mm
Equipment codes
- 1KD
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehicles1 Set Of Brake Pads For Disk Brake — locate 80A698451P Audi 1 Set of Brake Pads for Disk Brake in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1HousingRight8W0615404M
- 1HousingLeft8W0615403M
- 3Gask Set 8W0698671A
- 4Valve 1K0615273C
- 5Part 4H0611483
- 6Servomotor 8W0998281
- 7Seal Ring 4E0615137
- 8Bolt N10285506
- 9Bolt WHT010085
- 10Ret Spring 4K0698231
- 10Spring 4K0615231
- 11Plate BrakRight8W0615426G
- 11Plate BrakLeft8W0615425G
- 12Rep Set 7N0698647A
- 13Bolt N91126801
- 13Bolt N91041702
- 14Part 80A698451F
- 15Sender 80A615121
- 16Brakedisc 8W0615601H
- 17Bolt N10648301
- 18Cov PlateLeft80A615611B
- 18Cov PlateRight80A615612B
- 18Cov PlateRight8W0615612D
- 18Cov PlateLeft8W0615611D
- 19Bolt N10741402
- 20Housing 1J0973722
- 21Paste G000650
- 22Grease G052150A2
Compatible / alternative parts(12)
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. |
|---|---|---|
| audi a6 2.0 | 2018- | 14 |
| Audi A7 Sportback | 2018- | 14 |
| Audi Q5 | 2016-2020 | 14 |
Diagrams & fitment data powered by oemdiagrams.com
80A698451P Audi 1 Set of Brake Pads for Disk Brake is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi Q5 2016-2020.
