80A810075ASTL Frame (Primed)
- 80A810075ASTLThis pageNot stocked
Jun 2023 - 80A810075CSTLCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

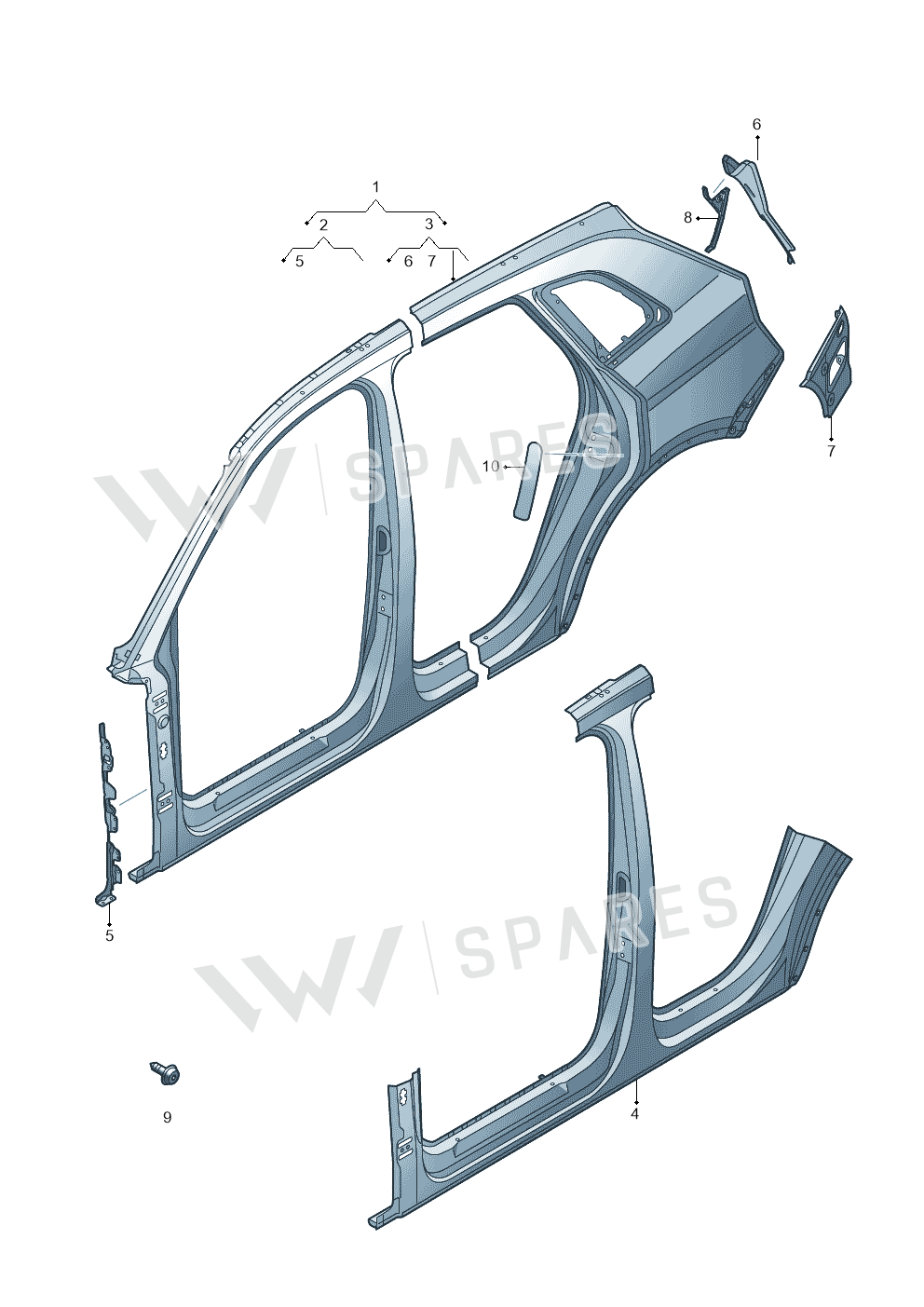

1 vehicleFrame (Primed) — locate Frame (Primed) in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
You are ordering the primed version — 80A810075ASTL. The diagram shows its base part number 80A810075A.
Parts in this assembly48
- 1FrameLeft80A810075A
- 1FrameLeft80A810075B
- 1FrameLeft80A810075C
- 1FrameRight80A810076
- 1FrameRight80A810076A
- 1FrameLeft80A810075
- 1FrameLeft80F810075
- 1FrameRight80F810076
- 1FrameLeft80F810075A
- 1FrameLeft80F810075TA
- 1FrameLeft80F810075TB
- 1FrameRight80F810076TA
- 2SectionRight80A809840
- 2SectionRight80A809840A
- 2SectionLeft80A809839
- 2SectionLeft80A809839A
- 2SectionLeft80F809839
- 2SectionRight80F809840
- 3SectionLeft80A809837A
- 3SectionLeft80A809837C
- 3SectionRight80A809838
- 3SectionRight80A809838A
- 3SectionLeft80A809837
- 3SectionLeft80A809837B
- 3SectionLeft80F809837
- 3SectionRight80F809838
- 3SectionLeft80F809837A
- 4SectionRight80A809848
- 4SectionRight80A809848A
- 4SectionLeft80A809847
- 4SectionLeft80A809847A
- 4SectionLeft80F809847
- 4SectionRight80F809848
- 5BracketLeft80A809075B
- 5BracketRight80A809076A
- 5BracketLeft80A809075A
- 6PlateRight80A810258A
- 6PlateLeft80A810257A
- 6PlateLeft80F810257
- 6PlateRight80F810258
- 7PlateRight80A809650A
- 7PlateLeft80A809649A
- 7PlateLeft80F809649
- 7PlateRight80F809650
- 8PlateRight80A810570A
- 8PlateLeft80A810569A
- 8PlateLeft80F810569
- 8PlateRight80F810570
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | PR |
|---|---|---|---|
| Audi Q5 | 2016-2020 | 1 | 0K3 |
Diagrams & fitment data powered by oemdiagrams.com
Frame (Primed) is fitted on: Audi Q5 2016-2020.
