80A971228J Wiring Set
- Current number
- Current number
- 80A971228JThis pageNot stocked
Mar 2020
- Current number80A971228ACCurrent number
- Current numberN10685401Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

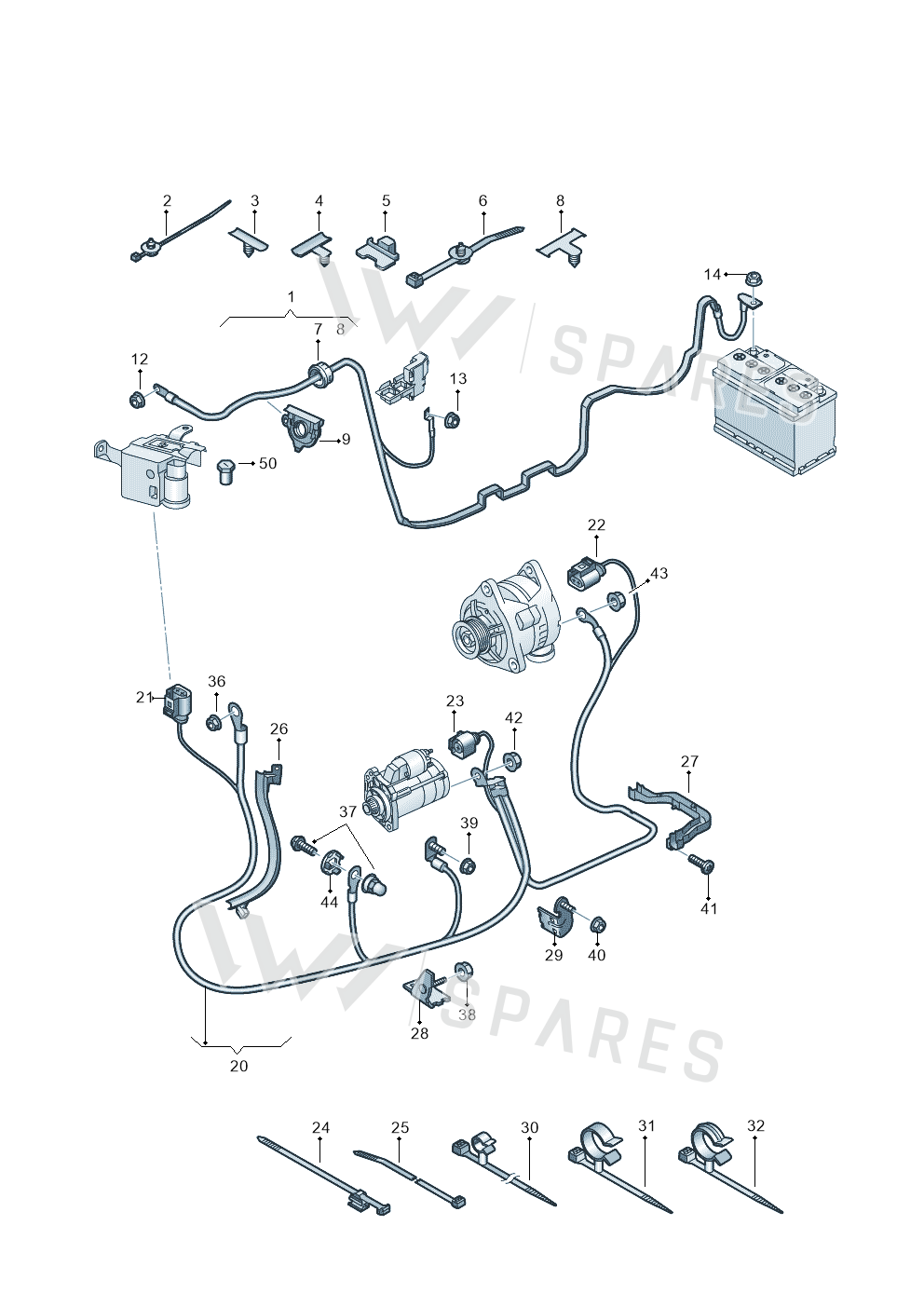

2 vehiclesWiring Set — locate Wiring Set in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Wiring Set 80D971225
- 2Part 3W0971838
- 3Clip 4B0971848
- 4Part 3B0971848F
- 5Bracket 8S0971818
- 6Cable Tie N90937702
- 7Grommet 8K0971871J
- 8Clip 1Z0971848E
- 9Grommet 80A971871B
- 12Collar Nut N90295502
- 13Part N90488005
- 20Wiring Set 80A971228AC
- 20Wiring Set 80A971228AD
- 20Wiring Set 80A971228R
- 21Part 071973851
- 21Part 3B0973852A
- 22Part 4D0971992B
- 23Part 1K0973751
- 24Part 5M0971838
- 26Cable Duct 80A971341
- 27Cable Duct 8W0971824AM
- 27Cable Duct 8W0971824AA
- 28Cable Duct 80A971502C
- 29Bracket 8W0971502A
- 30Bracket N10685401
- 31Cable Tie N10667101
- 32Cable Tie N10679001
- 36Collar Nut N90183803
- 36Collar Nut N10609201
- 37Screw WHT000869
- 38Collar Nut N01508210
- 41Bolt N91096701
- 44Fuse 4B0971260A
- 50Contactpin 4F0972501
Vehicle fitment table2
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Q5 | 2016-2020 | 20 | 1 | D |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Q5 qu. 2.0 | 2018- | 20 | 1 | D |
Diagrams & fitment data powered by oemdiagrams.com
Wiring Set is fitted on: Audi Q5 2016-2020; Audi Q5 qu. 2.0 2018-.
