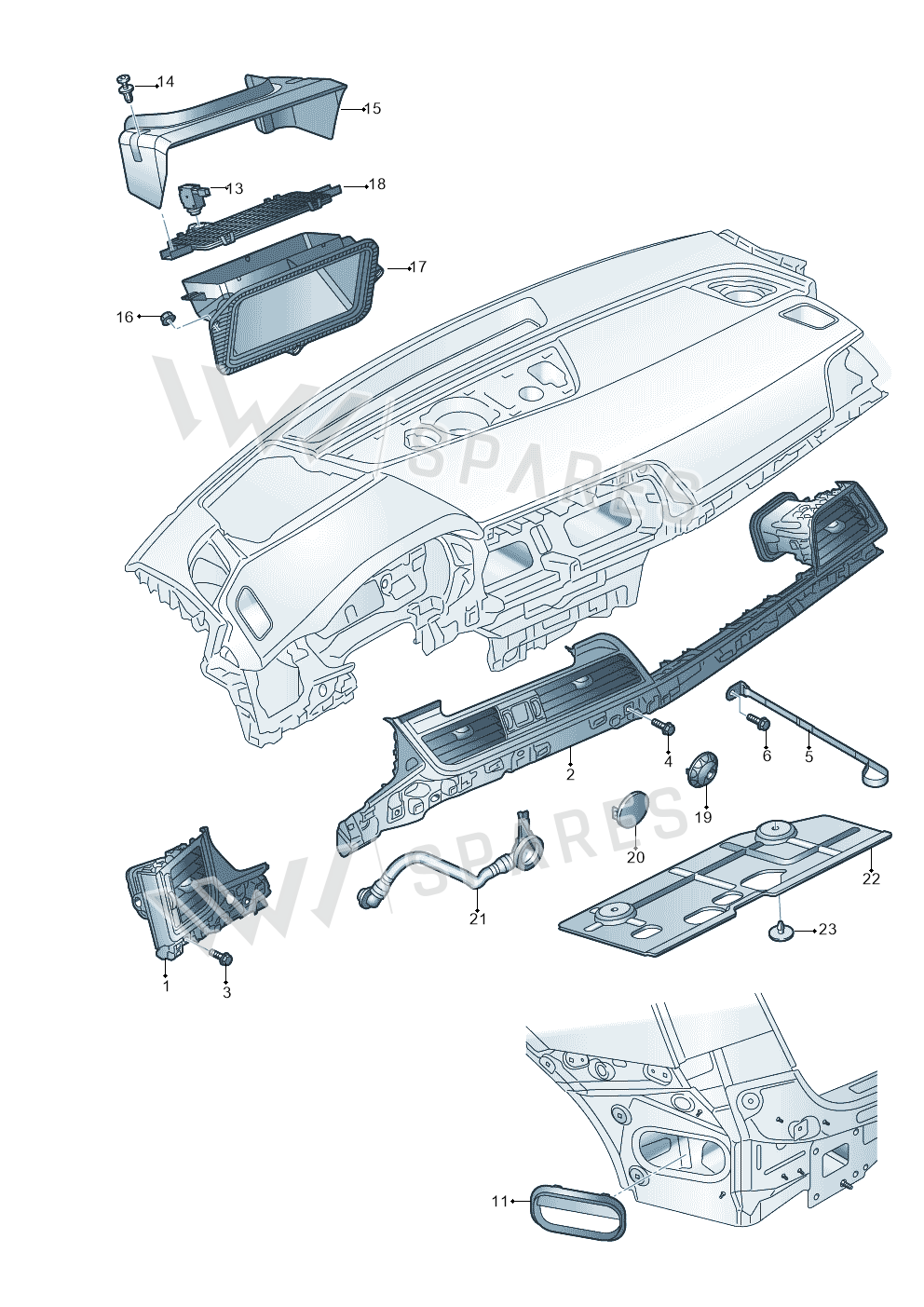

Air Hose exploded parts diagram — Audi Q5 · 2016-2020, position 21
Exploded view
Audi Q5 · 2016-2020 · position 21Full diagram ↓
80B816311

80B816311 Air Hose

£13.42
£11.09 excl. VAT
Supersession roadoldest to newest
  1. 80B816311This pageNot stocked
    Jul 2017
  2. 80B816311ACurrent number
Current part number80B816311AWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Air Hose — locate Air Hose in the official exploded view and explore the surrounding assembly.

Parts in this assembly48
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyRemarkPR
Audi Q52016-20202119AQ

Diagrams & fitment data powered by oemdiagrams.com

Air Hose is fitted on: Audi Q5 2016-2020.
