861611053 Wheel Brake Cylinder
- 861611053This pageNot stocked
Jan 1995 - 1H0611053Not stocked
Nov 2009 - 6Q0611053BCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

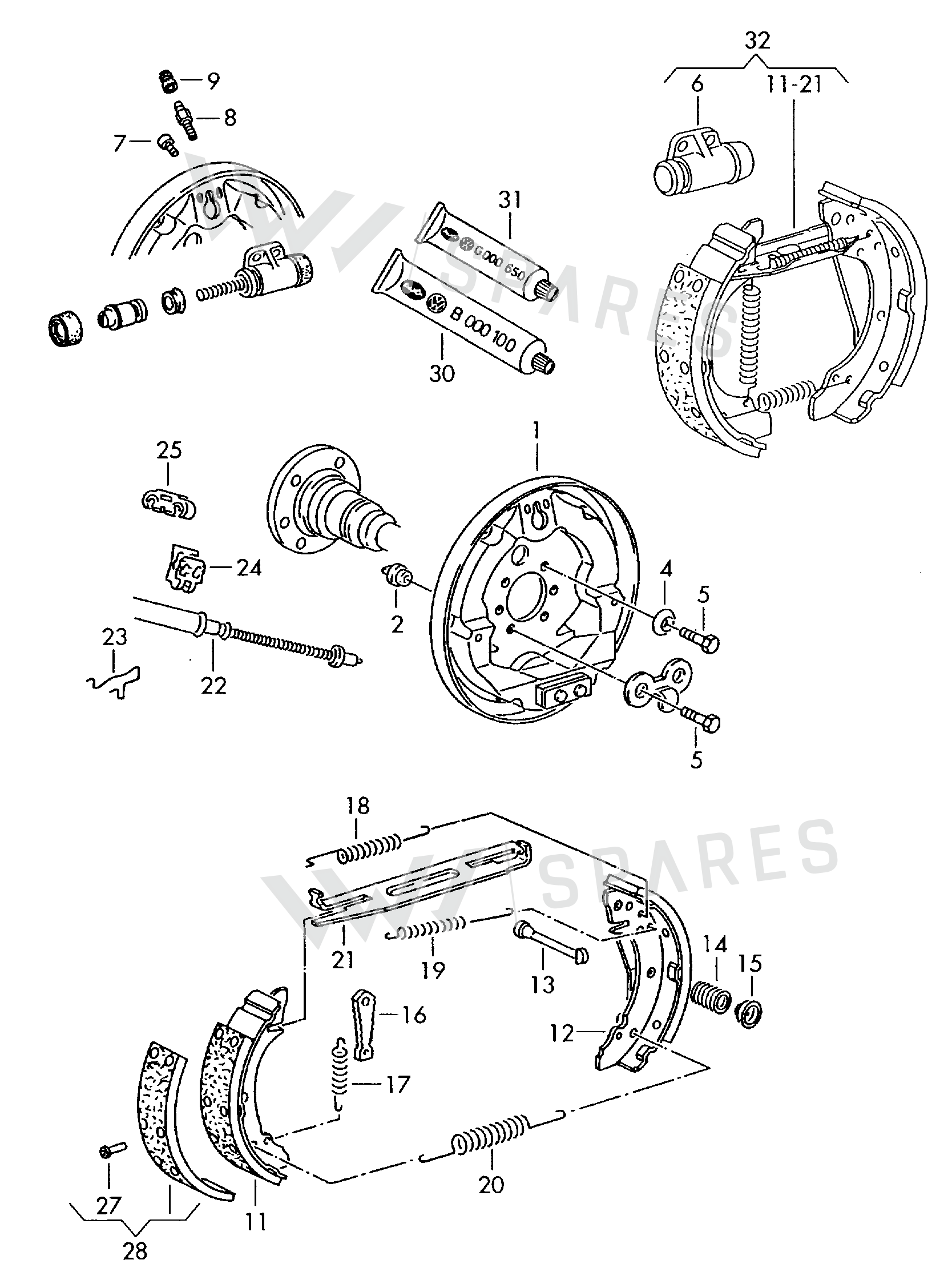

7 vehiclesWheel Brake Cylinder — locate Wheel Brake Cylinder in the official exploded view and explore the surrounding assembly.
Parts in this assembly31
- 1Back PlateRight1H0609426C
- 1Back PlateLeft1H0609425E
- 2Bungs 171609163
- 4Spring 321501119A
- 6Brake Cyli 1H0611053
- 6Part JZW698511A
- 7Screw N0147506
- 8Valve 113611475
- 9Part 211611483
- 11Brake ShoeRight1H0609526D
- 11Brake ShoeLeft1H0609525D
- 12Brake ShoeRight1H0609528D
- 12Brake ShoeLeft1H0609527D
- 13Part WHT001953
- 14Press Spring 171609583A
- 15Springseat 6Q0609709
- 16Wedge 171609705
- 17Spring 171609715
- 18Spring 357609707A
- 19SpringRight357609712A
- 19SpringLeft357609711A
- 20Spring 171609717
- 21Push BarRight357609820
- 21Push BarLeft357609819
- 22Brakecable 357609721
- 23Bracket 357609639
- 25Bracket 811611797
- 30Grease G052150A2
- 31Paste G000650
- 32Part 6R0698520X
- 32Part JZW698520B
Vehicle fitment table7
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Passat | 1989-1991 | 6 | 2 | |
| Audi 80/90 | 1987-1989 | 6 | 2 | 80:JN,JV,NE, |
| Golf/Jetta syn, Rallye | 1985-1991 | 6 | 2 | |
| POLO/COUPE/DERBY | 1981-1990 | 6 | 2 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 1 | 2 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 1 | 2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Golf/Jetta "USA","MEX"93>96 | 1992-1996 | 6 | 2 | ABA,ADC |
Diagrams & fitment data powered by oemdiagrams.com
Wheel Brake Cylinder is fitted on: Passat 1989-1991; Audi 80/90 1987-1989; Golf/Jetta syn, Rallye 1985-1991; POLO/COUPE/DERBY 1981-1990; POLO,DERBY,AUDI 50 1974-1981; Golf/Jetta "USA","MEX"93>96 1992-1996.
