About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

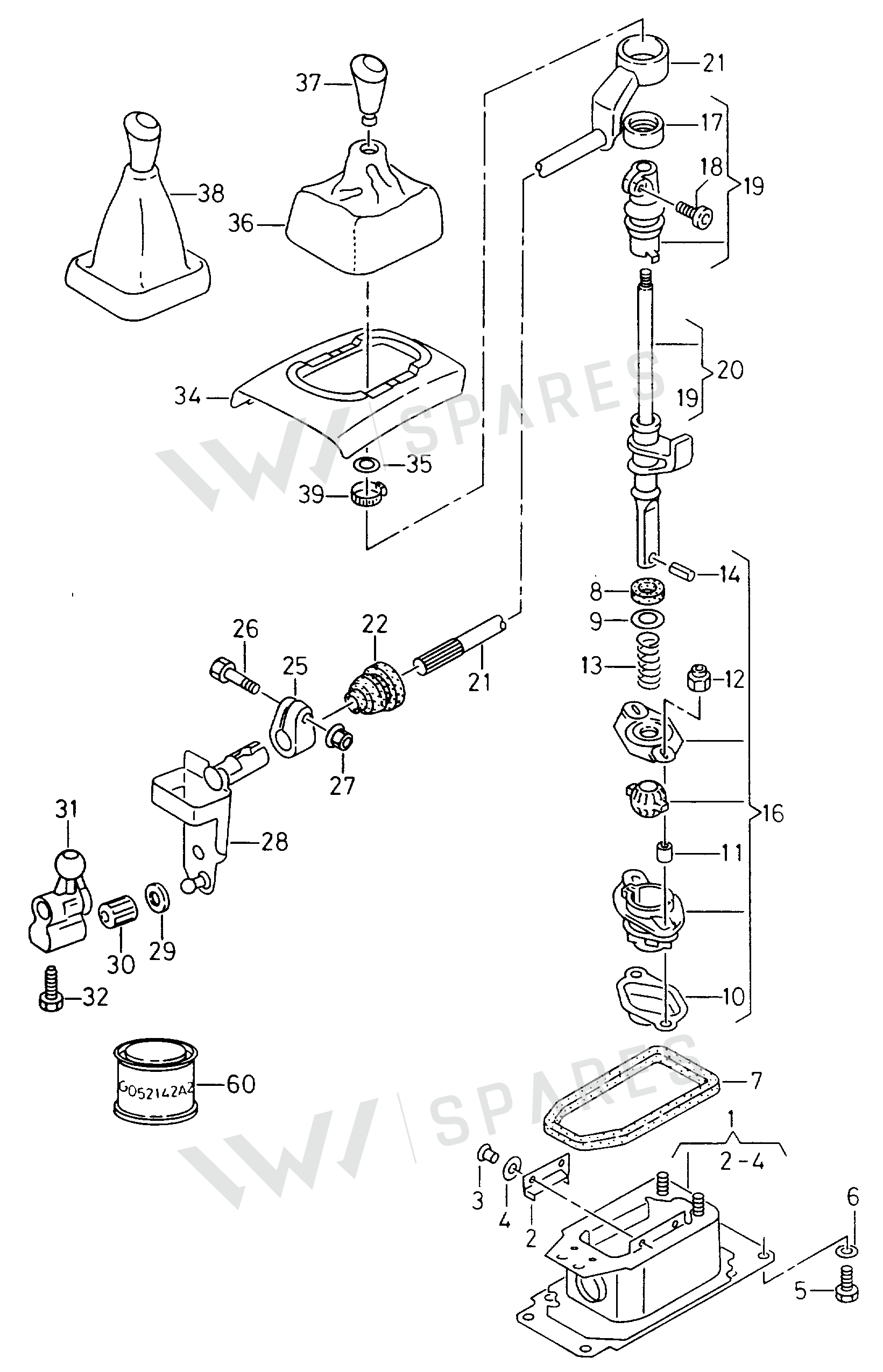

10 vehiclesUnderlay — locate Underlay in the official exploded view and explore the surrounding assembly.
Parts in this assembly43
- 1Housing 6K0711061
- 1Housing 6K0711061A
- 2Guide 191711146C
- 3Pop Rivet N90576301
- 4Washer N01152221
- 5Bolt N10005207
- 6Washer N01152527
- 7Seal 357713075
- 8Rubber Was 6K0711257
- 9Washer 6K0711279
- 11Bush 861711555
- 12Ut Hexagon Nut Self-locking Hexagon Nut N01118312
- 13Press Spring 6K0711197
- 14Sleeve N0433141
- 17Ring 191711238B
- 18Bolt N90507501
- 19Eccentric 1H0711073
- 19Eccentric 191711073A
- 20Lever 6K0711116A
- 20Lever 6K0711116
- 21Shaft 6K0711155F
- 21Shaft 6K0711155A
- 22Bear Ring 191711190B
- 25Clamp 1J0711603
- 26Bolt N0103404
- 27Collar Nut N90226404
- 28Guide 6K0711211
- 29Washer N90123701
- 30Bush 191711209
- 31Finger 191711233
- 32Bolt N90123902
- 35Sleeve 6K0711693A
- 35Sleeve 1H0711693
- 36Trim 6K0711115G
- 36Trim 6K0711115H
- 36Trim 6K0711115M
- 36Trim 6K0711115N
- 36Trim 6K0711115
- 37Knob 6K0711141G
- 37Knob 6K0711141H
- 37Knob 6K0711141A
- 60Lubricant G052142A2
- Z16Repair Kit 191798116A
Vehicle fitment table10
Europe (8)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| CORDOBA/VARIO | 1999-2002 | 10 | 1 | |
| IBIZA | 1999-2002 | 10 | 1 | |
| TOLEDO SEAT MOD.97>99 | 1996-1999 | 10 | 1 | |
| IBIZA/CORDOBA/VARIO | 1996-1999 | 10 | 1 | |
| INCA (SEAT-VAN) | 1995-2003 | 10 | 1 | |
| Ibiza/Cordoba (SEAT) | 1992-1996 | 10 | 1 | |
| TOLEDO SEAT | 1991-1996 | 10 | 1 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 9 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| JETTA (FAW) 91> | 1991- | 21 | 1 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 6K0 platform | 10 | 1 | AKL,AGP |
