8D0823509J Bonnet Lock-Lower Part
- 8D0823509ANot stocked
Jun 1996 - 8D0823509BNot stocked
Mar 1997 - 8D0823509CNot stocked
May 1999 - 8D0823509DNot stocked
Jun 2001 - 8D0823509JThis pageDiscontinued
Nov 2020
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

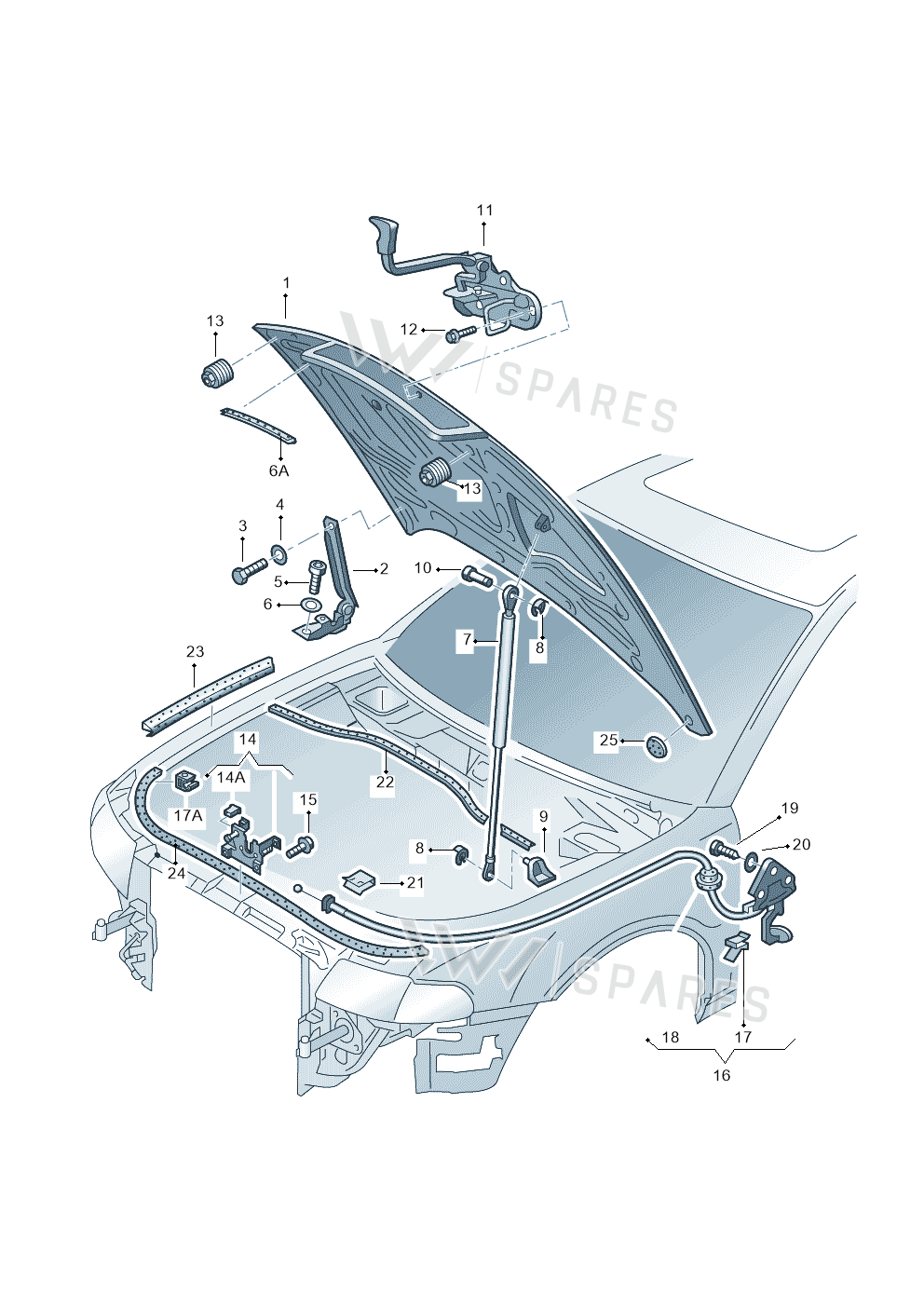

8 vehiclesBonnet Lock-lower Part — locate Bonnet Lock-Lower Part in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Bonnet 8D0823029B
- 2HingeLeft3B0823301
- 2HingeRight3B0823302
- 3Bolt N01023911
- 4Washer N01155811
- 5Screw N90304202
- 7G Fill Str 8D0823359B
- 8Ret Washer N0123276
- 8Ret Washer N90064901
- 9Bear Brack 8D0823402
- 10Pin 443823471B
- 11Catch Hook 8D0823480B
- 12Bolt N10009104
- 13Buffer 8D0823481
- 15Bolt N90537502
- 16Lid Cable 8D1823531C
- 16Lid Cable 8D2823531C
- 17Clip 8A0823567
- 18Grommet 8D0823591A
- 19Screw N0139694
- 20Washer N01152318
- 21Clip N90653901
- 21Bracket 8D0823547
- 21Clip N90587901
- 22Seal 8D0823723A
- 23Seal 8D0823725A
- 23Seal Element 8D0823731B
- 24Seal 8D0823731C
- 25Bungs 893803593A
- 25Bungs 8D0804998
- 25Bungs N0200271
- 25Bungs 8D0803583L
Vehicle fitment table8
Europe (7)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AUDI RS4 AV. QU. | 2000-2001 | 14 | 1 |
| Audi A4/Avant | 1999-2001 | 14 | |
| Audi A4/Av.qu. | 1999-2001 | 14 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 14 | 1 |
| Audi A4/Av.qu.F8D-W-> | 1997-1998 | 14 | 1 |
| Audi A4 F>8D-W-.. | 1995-1997 | 14 | 1 |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 14 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AUDI A6L CHINA | 1999-2005 | 7 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Bonnet Lock-Lower Part is fitted on: AUDI RS4 AV. QU. 2000-2001; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; Audi A4/Avant F8D-W-> 1997-1998; Audi A4/Av.qu.F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; AUDI A6L CHINA 1999-2005.
