8D0945527 Seal
- 8D0945527This pageNot stocked
Mar 2004 - 1C0945527Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

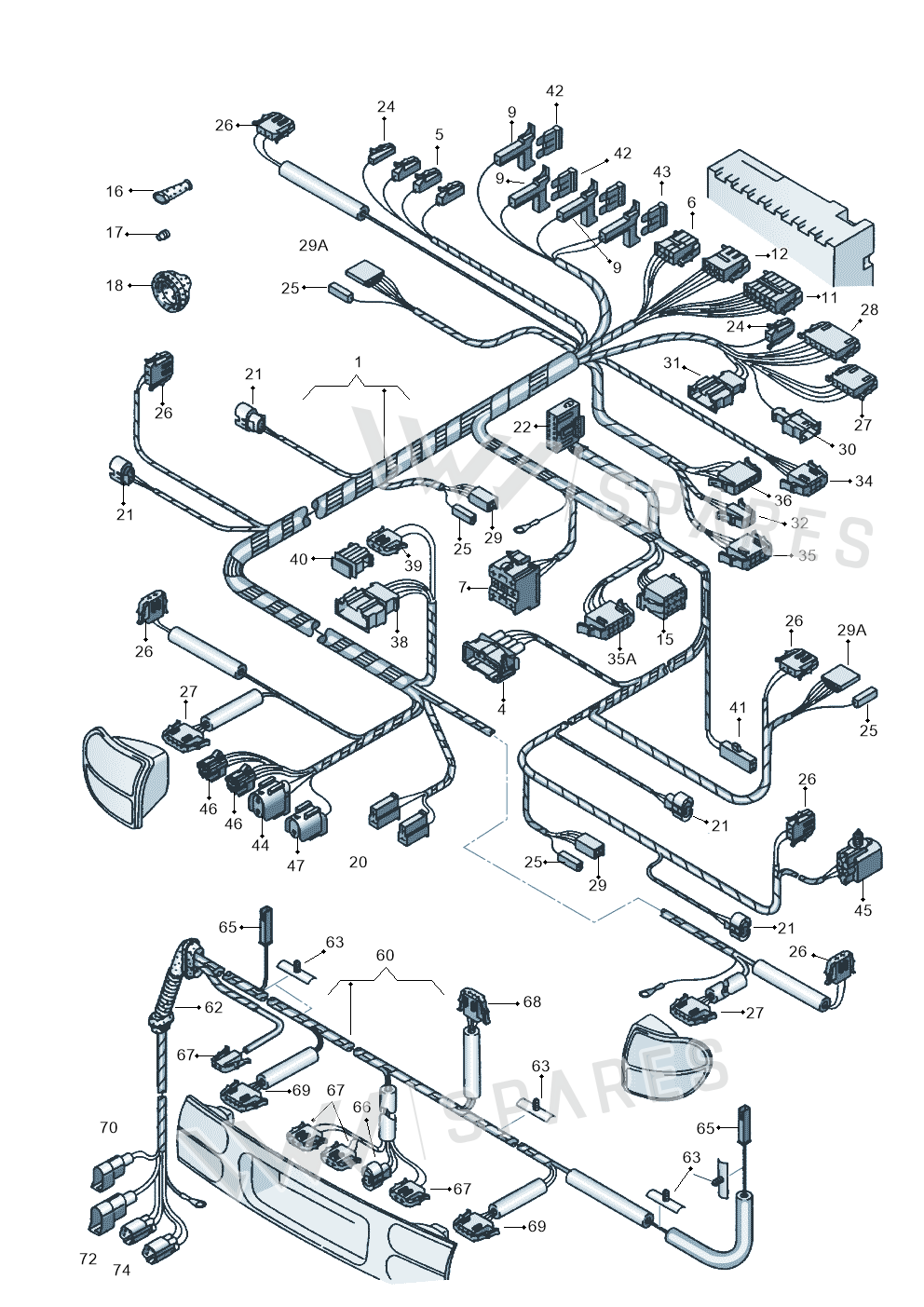

12 vehiclesSeal — locate Seal in the official exploded view and explore the surrounding assembly.
Parts in this assembly27
- 1Cable Set 7M3971147M
- 1Cable Set 7M4971147F
- 3Part 893971634
- 4Bellows 7M0971829D
- 6Clip 4B0971848
- 7Housing 1H0971921A
- 8Part 1J0971972
- 9Part 1J0972923
- 10Part 1J0972924
- 11Part 1J0973119
- 12Part 1J0973333
- 14Part 1J0973333A
- 15Part 1J0973333M
- 20Wiring Set 7M3971065D
- 20Wiring Set 7M3971085C
- 21Part 3D0973703
- 22Part 3B0973813
- 30Part 7M3971541H
- 30Wiring Set 7M3971541D
- 31Part 1C0945527
- 31Grommet 867971872
- 32Part 191972762
- 32Part 1J0937733
- 32Part 3B0972734
- 33Housing 8A0971978
- 33Housing 8D0971701
- 33Part 1J0973713
Vehicle fitment table12
Europe (11)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| ALHAMBRA/4MOTION | 2005- | 31 | 1 |
| ALHAMBRA/4MOTION | 2002-2005 | 31 | 1 |
| GOLF/VAR./4MOT. A4 02 | 2001-2002 | 15 | |
| Jetta Wagon 02 | 2001-2002 | 15 | |
| ALHAMBRA/4MOTION | 2000-2002 | 31 | 1 |
| New Beetle | 1998-2001 | 15 | |
| Audi A6/Avant | 1997-2001 | 25, 10 | 1 |
| Audi A6/Av.qu.F4B-W-> | 1997-2001 | 25, 10 | 1 |
| AUDI A3/S3/QUATTRO | 1996-2000 | 15 | 1 |
| Audi A8 | 1996-1998 | 14 | 1 |
| Audi A8 qu. | 1996-1998 | 14 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 39 |
Diagrams & fitment data powered by oemdiagrams.com
Seal is fitted on: ALHAMBRA/4MOTION 2005-; ALHAMBRA/4MOTION 2002-2005; GOLF/VAR./4MOT. A4 02 2001-2002; Jetta Wagon 02 2001-2002; ALHAMBRA/4MOTION 2000-2002; New Beetle 1998-2001; Audi A6/Avant 1997-2001; Audi A6/Av.qu.F4B-W-> 1997-2001; AUDI A3/S3/QUATTRO 1996-2000; Audi A8 1996-1998; Audi A8 qu. 1996-1998; AUDI A4/AV./QU. "CN"03>05 2003-2005.
