United States
8D1820103C Evaporator
- 8D1820103CThis pageNot stocked
Nov 1997 - 8D1820103DNot stocked
Nov 2008 - 8D1820103GDiscontinued
Feb 2022
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

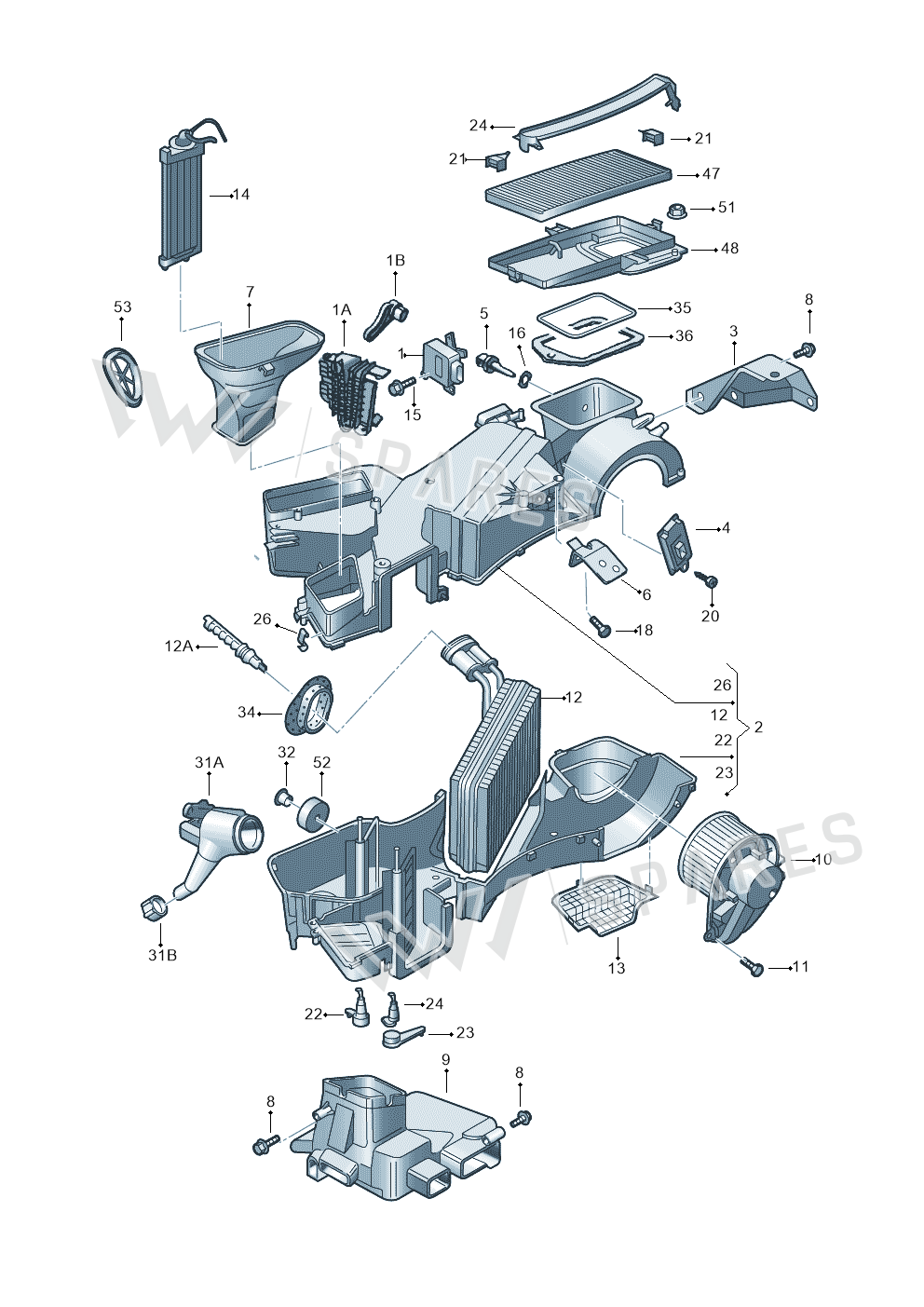

5 vehiclesEvaporator — locate Evaporator in the official exploded view and explore the surrounding assembly.
Parts in this assembly29
- 1Motor 1J0907511
- 1ABracket 3BD820515KA
- 1BLever 3BD820333KA
- 2Part 3B1820024A
- 2Housing 3B1820024
- 3Part 8D1819079A
- 4Resistance 8D0959263
- 8Bolt N90413004
- 9Vent 3B1819151A
- 10Blower 8D1820021C
- 10Blower 8D1820021A
- 11Screw N0140986
- 12Evaporator 8D1820103F
- 12AValve 4B0820177
- 13Grille 8D0820585
- 14Heat Element 3B0963235
- 15Screw N10424101
- 16Bracket 1H0959671A
- 22Part 3B1819125
- 23Part 3B1820333
- 26Clip 8D1820245
- 31APipe 8D1260113B
- 34Grommet 8D0820119A
- 35Seal 8D0819165B
- 47Dust Filt 8A0819439B
- 47Pollen Fil 8A0819439A
- 48Part 8D0819441E
- 51Ut Hexagon Nut Self-locking Hexagon Nut N0230026
- 53Bungs 8D0820992
Vehicle fitment table5
Europe (4)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT 00> | 2000- | 12 | 1 | |
| Audi A4/Avant F8D-W-> | 1997-1998 | 12 | 1 | |
| Audi A4 F>8D-W-.. | 1995-1997 | 12 | 1 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 12 | 1 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| PASSAT LINGYU "CN."06> | 2005- | 12 | 1 | L0L |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator is fitted on: PASSAT 00> 2000-; Audi A4/Avant F8D-W-> 1997-1998; Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; PASSAT LINGYU "CN."06> 2005-.
