8E0863259A Connecting Piece
- 8E0863259Not stocked
May 2009 - 8E0863259AThis pageDiscontinued
Sep 2020
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for SEAT is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

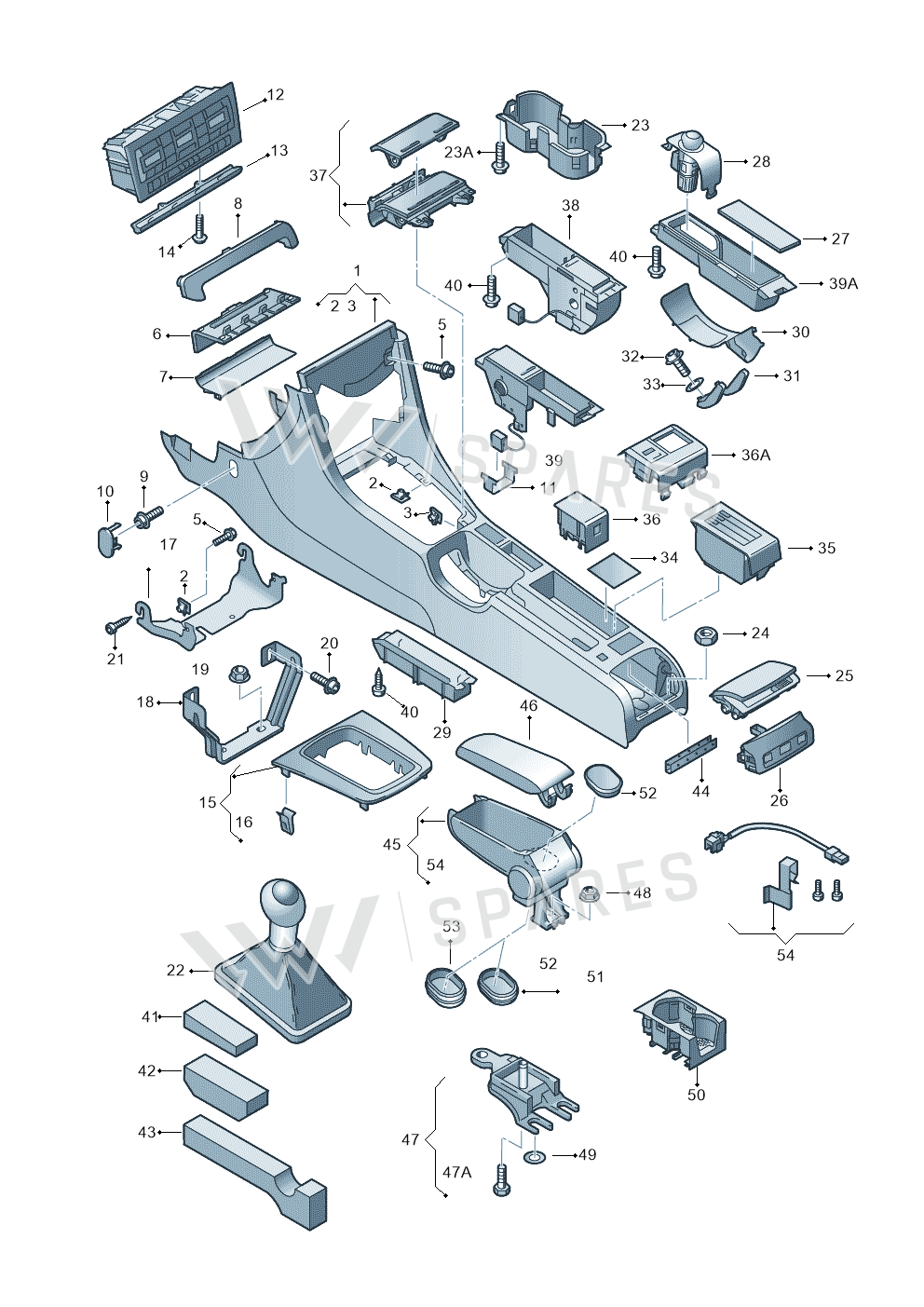

8 vehiclesConnecting Piece — locate Connecting Piece in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 8H0863241C
- 1Part 8H0863241D
- 2Part N90475903
- 3Part N90356203
- 5Screw N90729002
- 6Trim 8E0863263A
- 7Trim 8E0864147
- 10CoverRight8E0863274
- 10CoverLeft8E0863273
- 11Clip N90863401
- 13Trim 8E0858063B
- 14Bolt N90968302
- 15Frame 8E0864261AA
- 15Frame 8E0864261AB
- 15Frame 8E0864261AC
- 15Frame 8E0864261AD
- 15Frame 8E0864261AE
- 15Frame 8E0864261AF
- 15Frame 8E0864261AG
- 15Frame 8E0864261AH
- 15Frame 8E0864261C
- 15Frame 8E0864261D
- 15Frame 8E0864261F
- 15Frame 8E0864261H
- 15Frame 8E0864261J
- 15Frame 8E0864261AN
- 16Clip 3B0858137
- 17Bracket 8E0863251A
- 18Bracket 8E0863531B
- 19Ut"hex Nut Self-locking With Washer Hex Nut N90286703
- 21Bolt N90918701
- 24Part N90486204
- 26Trim 8E0863351D
- 26Trim 8E0863351F
- 29Panel 8H0863284A
- 30Trim 8E0863276B
- 32Screw N90130804
- 34Insert 8E0863301A
- 35Ox Cassette Box Cassette Box *txt* Cassette 8E0864119
- 36Support 8E0862387
- 38Support 8H0959557A
- 38Support 8H0959557
- 42Part 8E0863518
- 43Filler Piece 8E0863519
- 44Clip 8D0864246A
- 45Armrest 8E0864207F
- 45Armrest 8E0864207G
- 45Armrest 8E0864207D
Vehicle fitment table8
Europe (6)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Exeo ST Reference | 2008-2011 | 31 | 1 | L0L | |
| Audi RS4 Cabrio qu. 08> | 2007- | 31 | 1 | L0L,L0R | |
| Audi RS4 qu. 07> | 2006- | 31 | 1 | A8S | |
| Audi A4/S4 Cabrio./qu. 07> | 2006- | 31 | 1 | PR:A8S | A8S,L0L,L0R |
| Audi A4/S4/Av./qu. 05> | 2005- | 31 | 1 | L0L,L0R | |
| Audi A4/S4 Cabrio./qu. | 2002-2006 | 31 | 1 | L0L,L0R |
Other markets (2)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| AUDI A4 "CN."06> | 2005- | 31 | 1 | ||
| AUDI A4/AV./QU. "CN"03>05 | 2003-2005 | 31 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Connecting Piece is fitted on: Exeo ST Reference 2008-2011; Audi RS4 Cabrio qu. 08> 2007-; Audi RS4 qu. 07> 2006-; Audi A4/S4 Cabrio./qu. 07> 2006-; Audi A4/S4/Av./qu. 05> 2005-; Audi A4/S4 Cabrio./qu. 2002-2006; AUDI A4 "CN."06> 2005-; AUDI A4/AV./QU. "CN"03>05 2003-2005.
