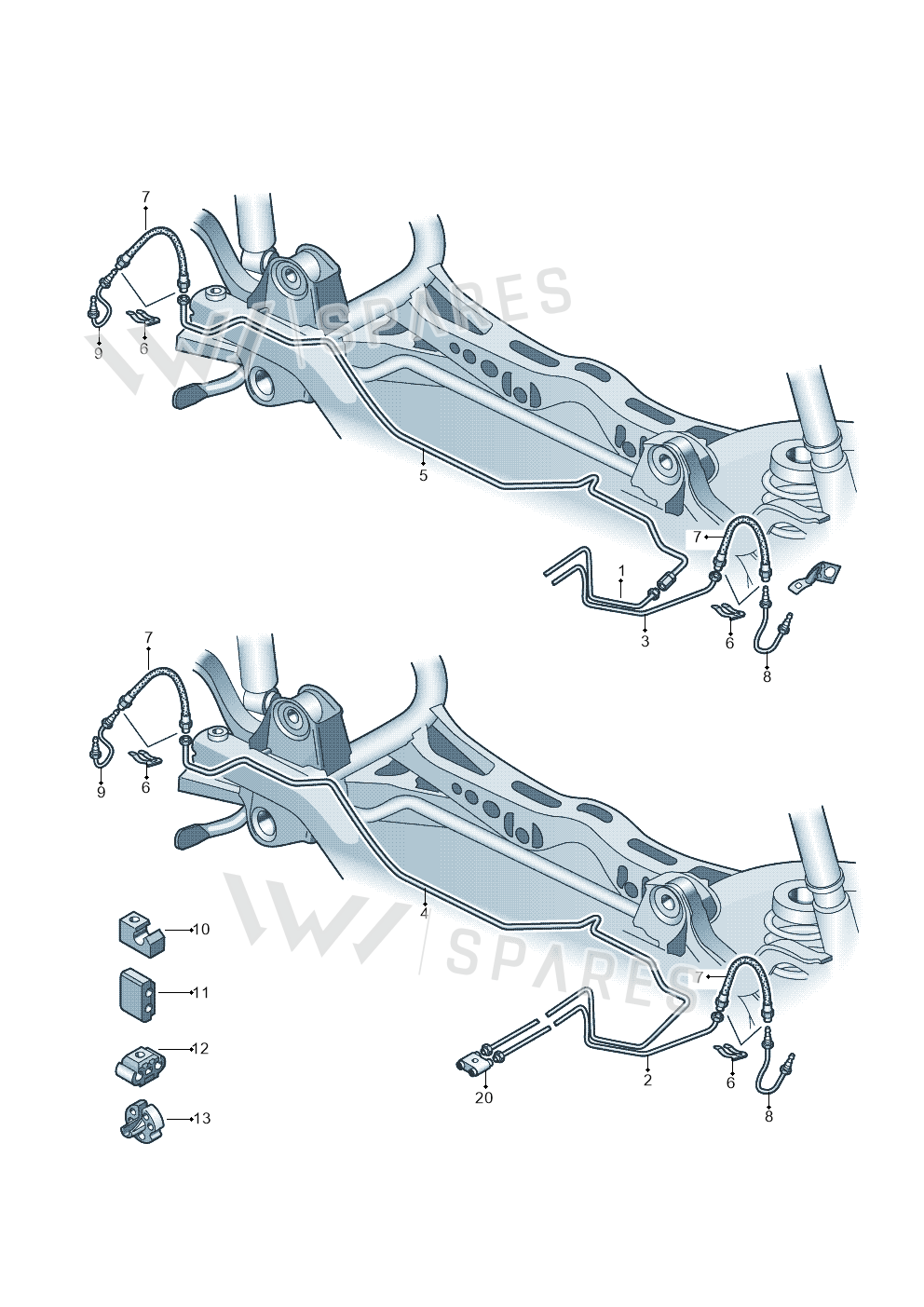

Retainer For Brake Pipe exploded parts diagram — Altea XL Reference · 2013-2013, position 12
Exploded view
Altea XL Reference · 2013-2013 · position 12Full diagram ↓
8K0611797

8K0611797 Retainer For Brake Pipe

£1.28
£1.06 excl. VAT
Supersession roadoldest to newest
  1. 8K0611797This pageNot stocked
    Dec 2017
  2. 8K0611797DSuperseded
    Oct 2015
  3. 8K0611797GCurrent number
Current part number8K0611797GWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

13 vehicles

Retainer For Brake Pipe — locate Retainer For Brake Pipe in the official exploded view and explore the surrounding assembly.

Parts in this assembly14
Vehicle fitment table13

Europe (12)

VehicleYearsPos.QtyPR
Altea XL Reference2013-201312X
Altea XL Reference2010-201312X
Audi RS6 Avant qu.5.02007-201026X2MC,2MS
ALTEA 07>2006-12X
LEON 06>2005-25, 12X
IBIZA 06>2005-15X
CORDOBA 06>2005-15X
FOX M.05>2005-101
TOLEDO 05>2004-25, 12X
FOX 04>2003-151
TOLEDO/LEON/LEON-42001-200617X
TOLEDO/LEON/LEON-41998-200116X

Other markets (1)

VehicleYearsPos.QtyPR
Golf Brasil "BR."08>2007-17X

Diagrams & fitment data powered by oemdiagrams.com

Retainer For Brake Pipe is fitted on: Altea XL Reference 2013-2013; Altea XL Reference 2010-2013; Audi RS6 Avant qu.5.0 2007-2010; ALTEA 07> 2006-; LEON 06> 2005-; IBIZA 06> 2005-; CORDOBA 06> 2005-; FOX M.05> 2005-; TOLEDO 05> 2004-; FOX 04> 2003-; TOLEDO/LEON/LEON-4 2001-2006; TOLEDO/LEON/LEON-4 1998-2001; Golf Brasil "BR."08> 2007-.
