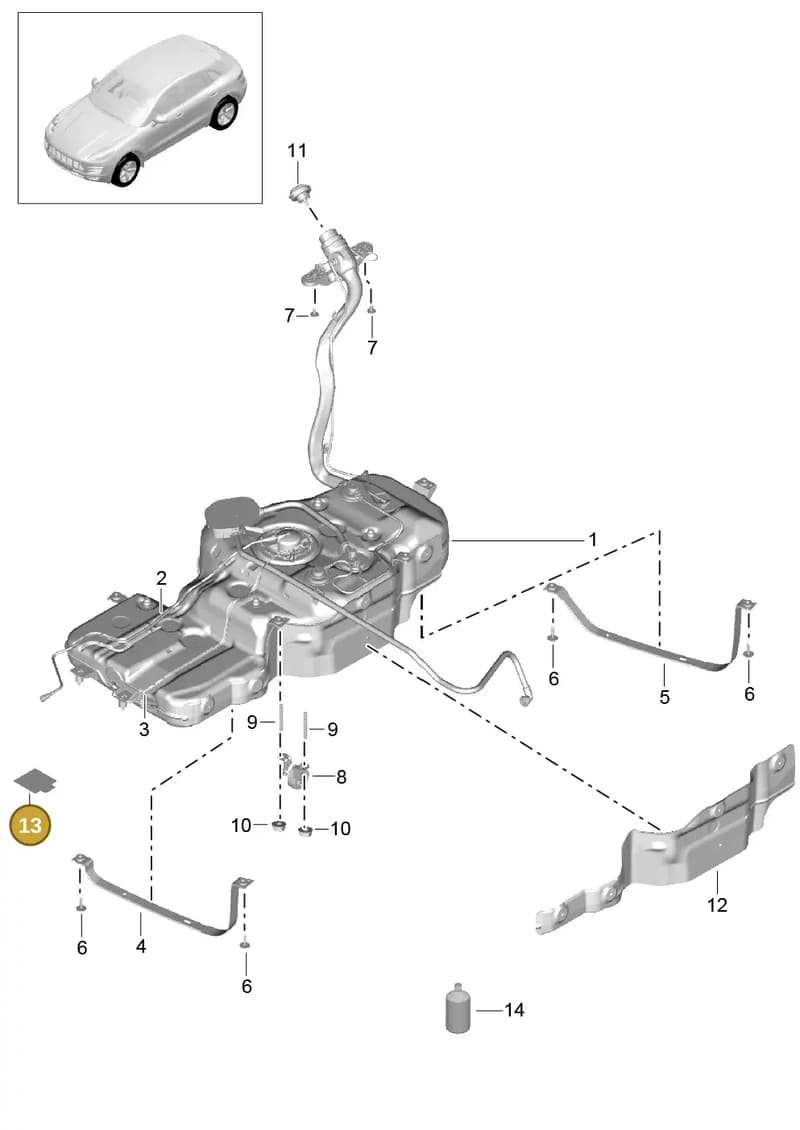

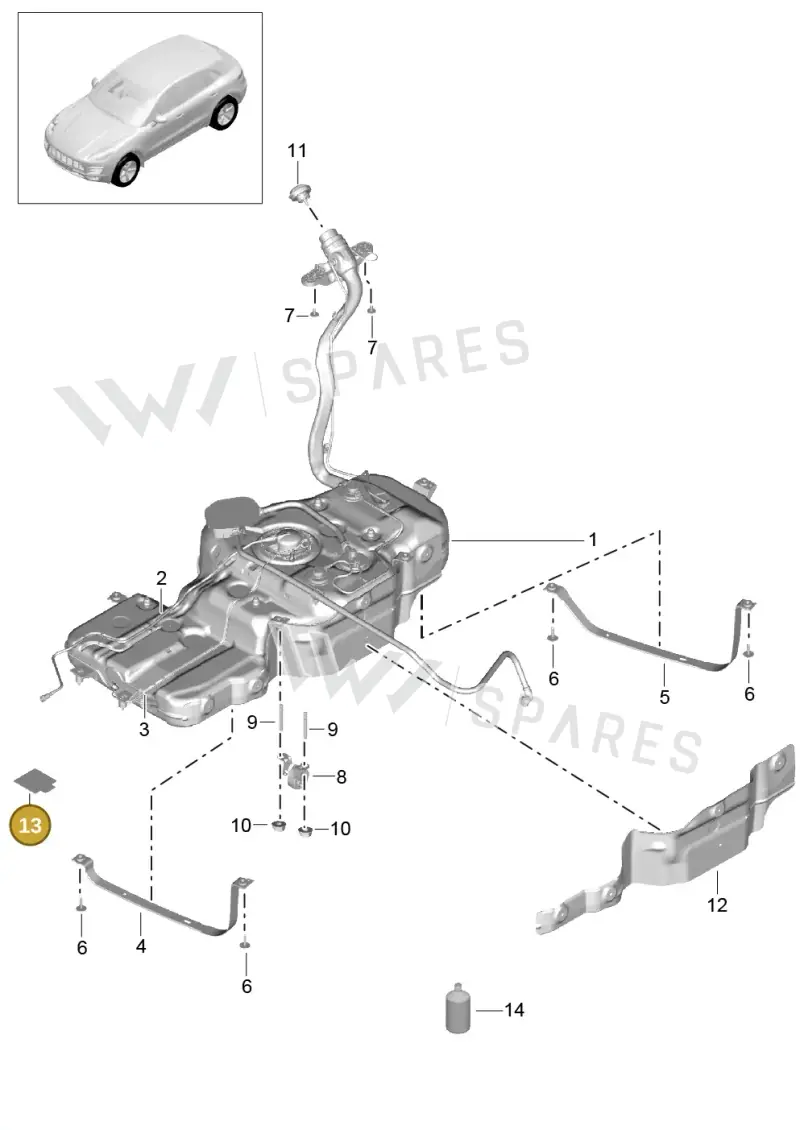

Number 13 marks the part’s position in the exploded view (Porsche Macan (2013-2018)).
Product overview

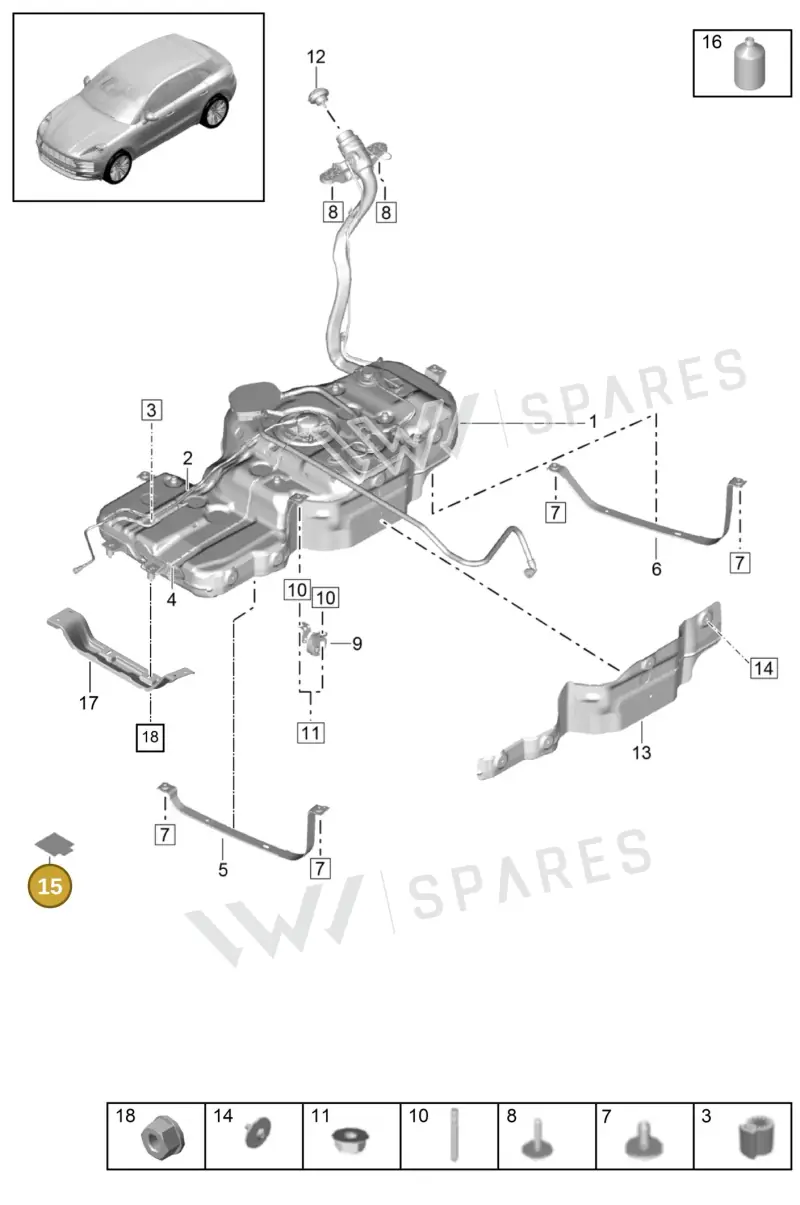

Genuine OEM Audi Heat Insulation, part number 8R0201963A. Fits Porsche Macan (2013-2022). Shown as position 15 in the fuel, exhaust and cooling diagram P5200003.
Catalogue entry: HEAT INSUL.
Technical details
- Category
- Fuel System
- Diagram sheet
- Porsche p44201000, position 13
- ETKA group
- 2 / 01 (201)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
2 vehiclesHeat Insulation — locate 8R0201963A Audi Heat Insulation in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Tank 8R0201060AG
- 1Part 8R0201060AH
- 1Tank 8R0201060AP
- 1Container 95B201060E
- 1Part PAC201060A
- 1Container 95B201060B
- 2Pipe 8R0201220A
- 3Fuel Line 8R0261238F
- 4Part 8R0201653
- 5Part 8R0201653A
- 6Bolt N91159101
- 7Bolt N90809003
- 8Bracket 8K0253144F
- 9Bolt 99906140801
- 10Part N02300316
- 11Ap&cap With Retaining Strap For Fuel Tank Cap 95B201550B
- 11Ap&cap With Retaining Strap For Fuel Tank Cap 95B201550
- 12Heat Sh 8R0201308D
- 14Part 00004320902
- 14Part 00004320689
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Macan R4 TFSI | 2018- | 13 | 1 |
| Macan GTS | 2013-2018 | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
8R0201963A Audi Heat Insulation is fitted on: Macan R4 TFSI 2018-; Macan GTS 2013-2018.
