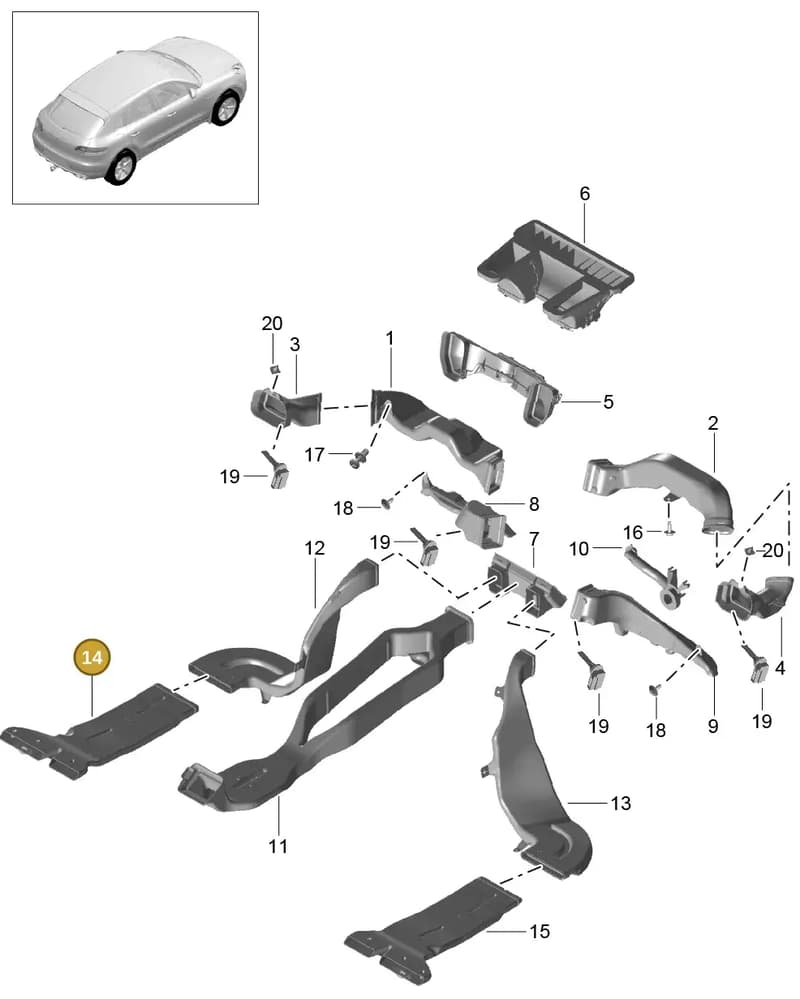

Number 14 marks the part’s position in the exploded view (Porsche Macan (2013-2018)).
Product overview
Genuine OEM Audi Air Channel for Passenger Cabin Heater, part number 8R0819801. Fits Porsche Macan (2013-2018). Shown as position 14 in the body diagram P4481304.
Catalogue entry: AIR CHANN. left rear; lower.
Technical details
- Category
- Body Exterior
- Diagram sheet
- Porsche p44813040, position 14
- ETKA group
- 8 / 13 (813)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesAir Channel For Pass Cabin Heater — locate 8R0819801 Audi Air Channel for Passenger Cabin Heater in the official exploded view and explore the surrounding assembly.
Superseded by 8R0819801A — the later replacement part.
This part is marked discontinued by the manufacturer (since 2019-02-01); contact us to check current availability.
Parts in this assembly29
- 1Air GuideRight8R2819655
- 1Air GuideLeft8R1819655
- 2Air GuideRight8R2819656
- 2Air GuideLeft8R1819656
- 3Air Guide 95B819725A
- 3Air Guide 95B819725
- 4Air Guide 95B819726A
- 4Air Guide 95B819726
- 5Air Guide 95B819389
- 6Intermed 95B858431
- 7Connector Piece 95B819513
- 7Air Guide 8K0819513E
- 8PartRight95B819152
- 8VentRight95B819152A
- 8PartLeft95B819151
- 8VentLeft95B819151A
- 9VentLeft95B819167
- 9VentRight95B819168
- 10VentRight8R2816311
- 10VentLeft8R1816311
- 11Air Channel 95B857039A
- 12Connector Piece 95B819503
- 13Connector Piece 95B819504
- 15Air Channel 8R0819802
- 16Bolt N10745201
- 17Spring Rivet 4F0857784
- 18Screw N90985501
- 19Temperature Sensor 95857230400
- 20Part N90777704
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Macan GTS | 2013-2018 | 14 | ||
| Audi Q5 qu. 2.0 TDI | 2012-2017 | 21 | 1 | D |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 21 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
8R0819801 Audi Air Channel for Passenger Cabin Heater is fitted on: Macan GTS 2013-2018; Audi Q5 qu. 2.0 TDI 2012-2017; Audi Q5 qu. 2.0 TDI 2008-2012.
