8R0863802 Damping For Suspension Strut Dome
- 8R0863802This pageNot stocked
Dec 2012 - 8R0863802ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Shipping weight
- 67 g
- Shipping size (L × W × H)
- 57 × 29 × 14.5 cm
- Customs (HS) code
- 87082990

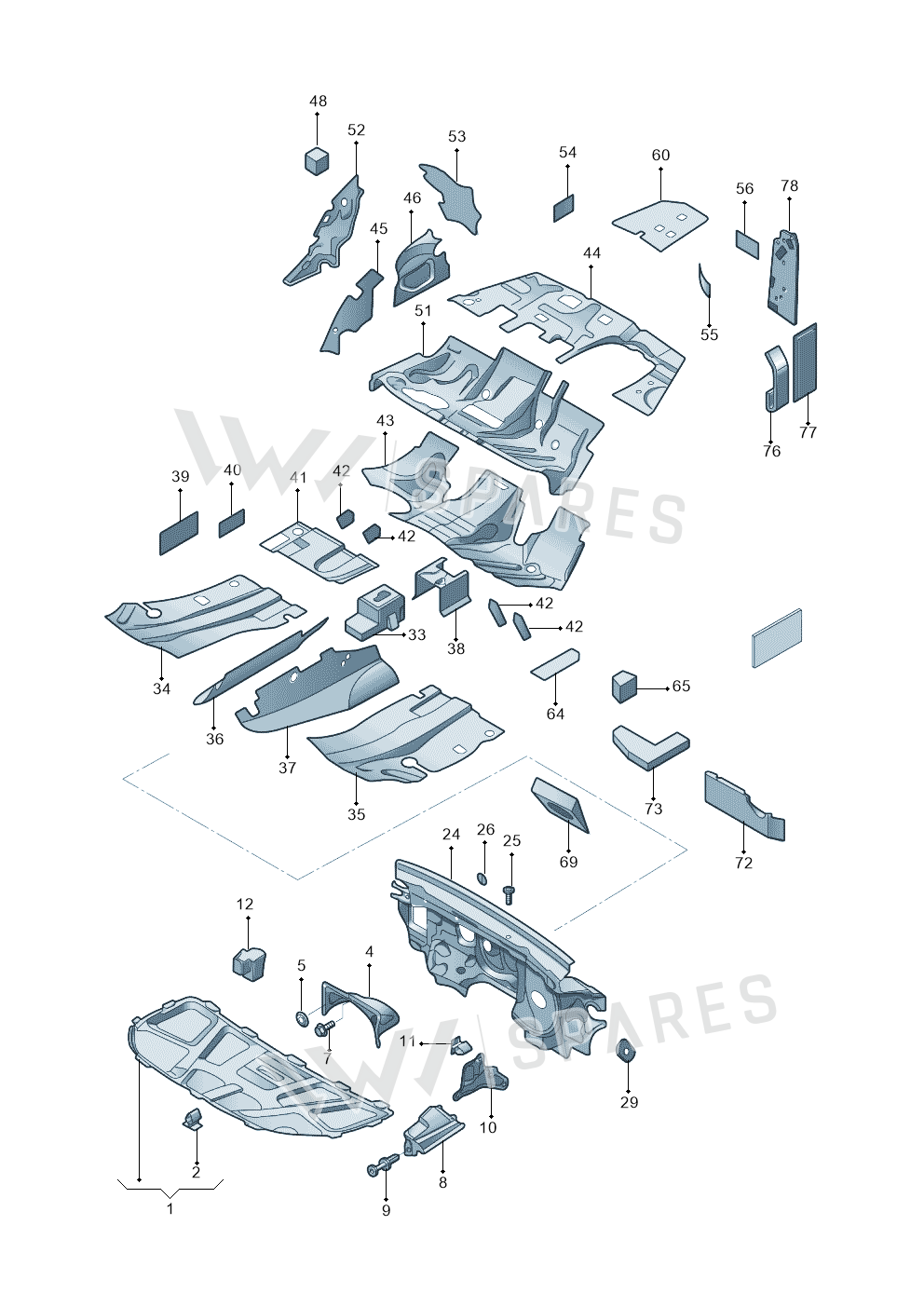

Parts diagram & fitment
2 vehiclesDamping For Suspension Strut Dome — locate Damping For Suspension Strut Dome in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly38
- 1Sound Abs 8R0863825
- 2Clip 8E0863727A
- 4Sound Abs 8R0863829D
- 4Sound Abs 8R0863829E
- 4Sound Abs 8R0863829G
- 5Washer N90335005
- 8InsulationLeft8R0863801
- 8InsulationLeft8R0863801A
- 8InsulationRight8R0863802A
- 9Spring Rivet 8T0807300A
- 10Sound AbsLeft8R0863827
- 10Sound AbsLeft8R0863827B
- 11Clip 8K0863203
- 12InsulationLeft8R0863335A
- 12InsulationRight8R0863336A
- 14Sound Abs 1J0867809
- 15Foam 000863421
- 16Sound Abs 323863950
- 24Sound Abs 8RD863947
- 25Bungs N90201601
- 26Clip Nut 4A5853909
- 29Filler Piece 8K0867453A
- 33Insulation 8K1863807
- 48Insulation 8E5864773
- 51Sound Abs 8R0863545
- 52Sound AbsLeft8R0864773
- 52Sound AbsRight8R0864774
- 53Sound AbsLeft8R0863889B
- 53Sound AbsRight8R0863890
- 53Sound AbsLeft8R0863889
- 60InsulationRight8R0864954
- 60InsulationLeft8R0864953A
- 64Sound Abs 8R0867335
- 69InsulationRight8K0863856B
- 72Insulation 8K1863933
- 73Insulation 8K0863934
- 76Sound AbsLeft8R0863866
- 77SealRight4F0821204A
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Audi Q5 qu. 2.0 | 2009-2018 | 8 | 1 | G1D,G1G,1A2,1VG |
| Audi Q5 qu. 2.0 TDI | 2008-2012 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Damping For Suspension Strut Dome is fitted on: Audi Q5 qu. 2.0 2009-2018; Audi Q5 qu. 2.0 TDI 2008-2012.
