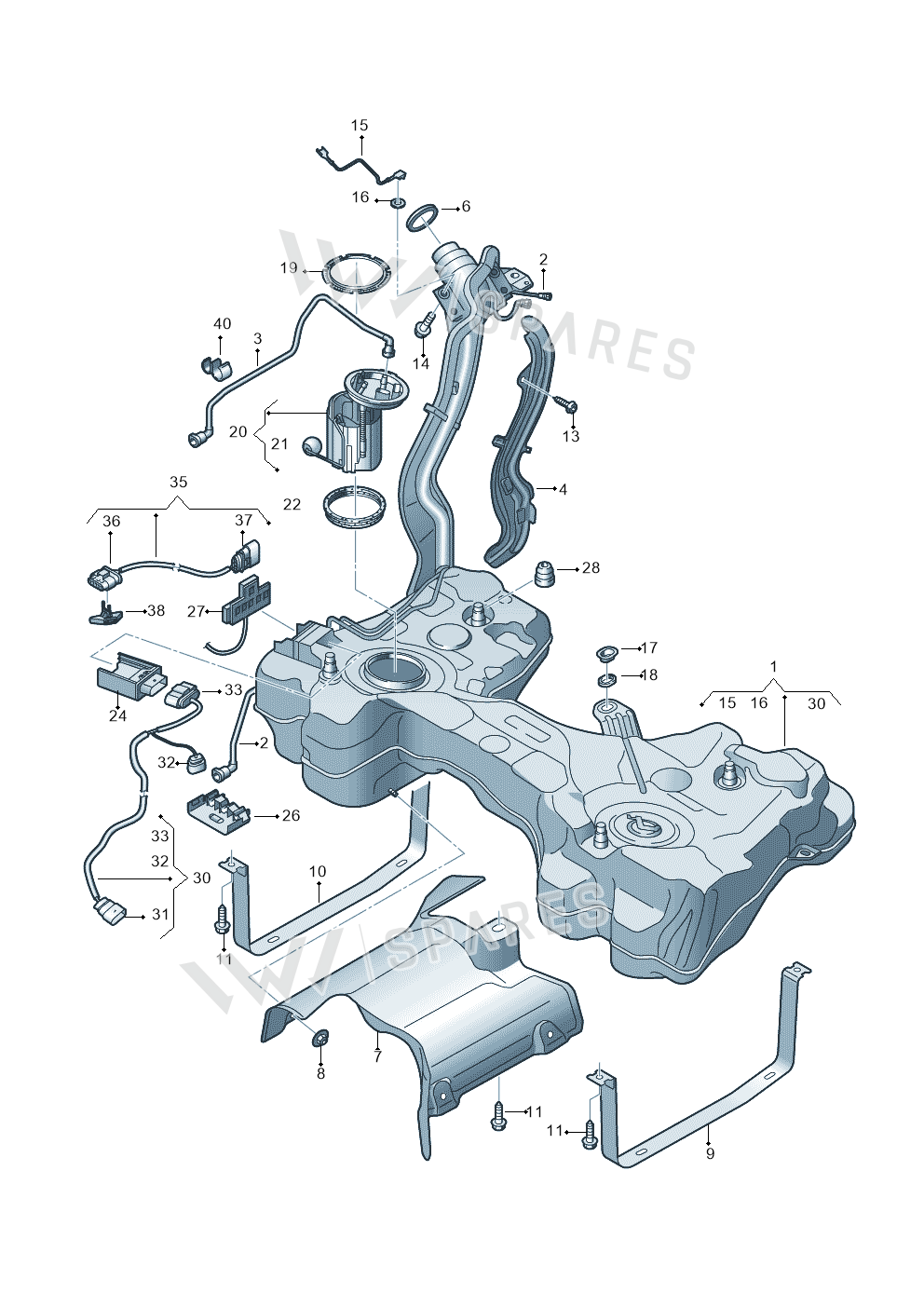

Fuel Tank exploded parts diagram — Audi TTRS Coupe · 2016-2023, position 1
Exploded view
Audi TTRS Coupe · 2016-2023 · position 1Full diagram ↓
8S0201060M

8S0201060M Fuel Tank

£1,934.52
£1,598.78 excl. VAT
Supersession roadoldest to newest
  1. 8S0201060FNot stocked
    Apr 2020
  2. 8S0201060MThis pageNot stocked
    Jun 2021
  3. 8S0201060ABCurrent number
Current part number8S0201060ABWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Fuel Tank — locate Fuel Tank in the official exploded view and explore the surrounding assembly.

Parts in this assembly41
Vehicle fitment table1

Europe (1)

VehicleYearsPos.Qty
Audi TTRS Coupe2016-202311

Diagrams & fitment data powered by oemdiagrams.com

Fuel Tank is fitted on: Audi TTRS Coupe 2016-2023.
