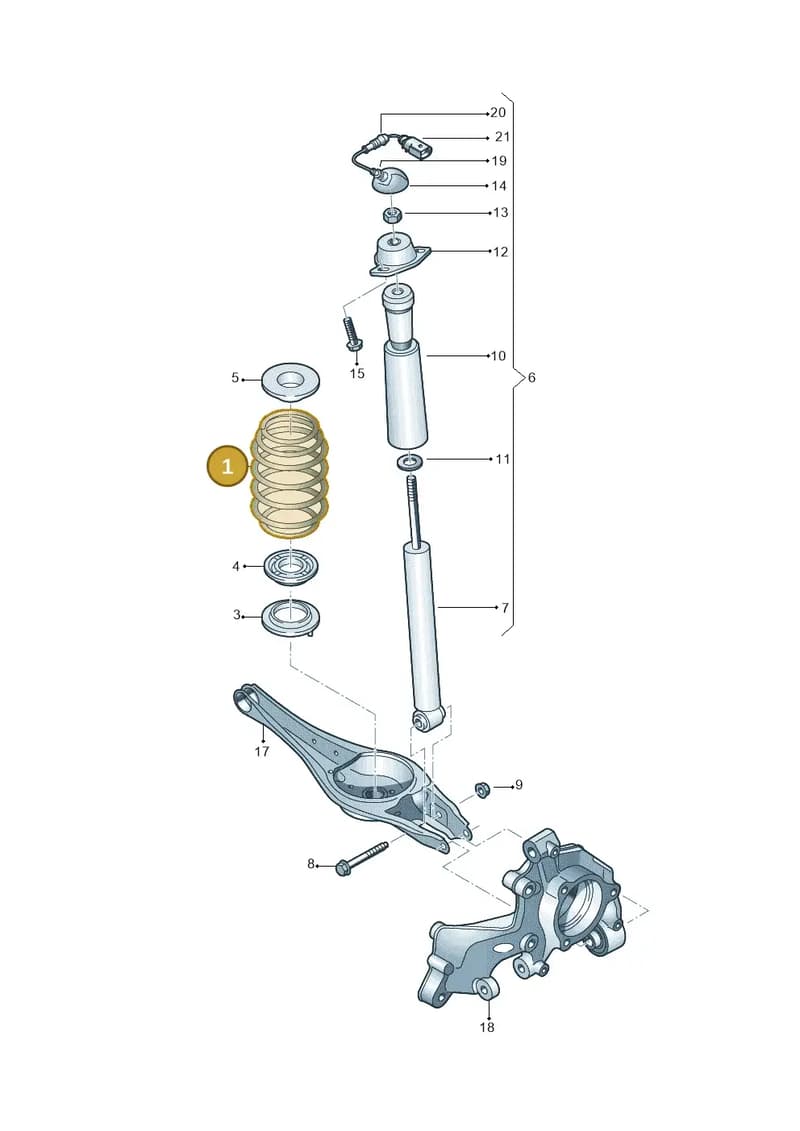

Number 1 marks the part’s position in the exploded view (Audi TTS (2014-2023)).
Product overview
Genuine OEM Audi Coil Spring, part number 8S0511115DK. Fits Audi TTS (2014-2023). Shown as position 1 in the rear axle diagram 850511100. Equipment code: 0YG.
Catalogue entry: COILSPRING ×2.
Fitted with: 8S0511115FP COILSPRING, 8S0511115DF COILSPRING, 8S0511115DG COILSPRING, 8S0511115DH COILSPRING, 8S0511115DJ COILSPRING, 8S0511115DL COILSPRING, 8S0511115DM COILSPRING, 8S0511115DN COILSPRING, 8S0511115DP COILSPRING, 8S0511115DQ COILSPRING, 8S0511115DR COILSPRING, 5Q0512297D UNDERLAY.
Technical details
- Category
- Suspension
- Diagram sheet
- Audi 850511100, position 1
- ETKA group
- 5 / 11 (511)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0YG
- 2MV
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

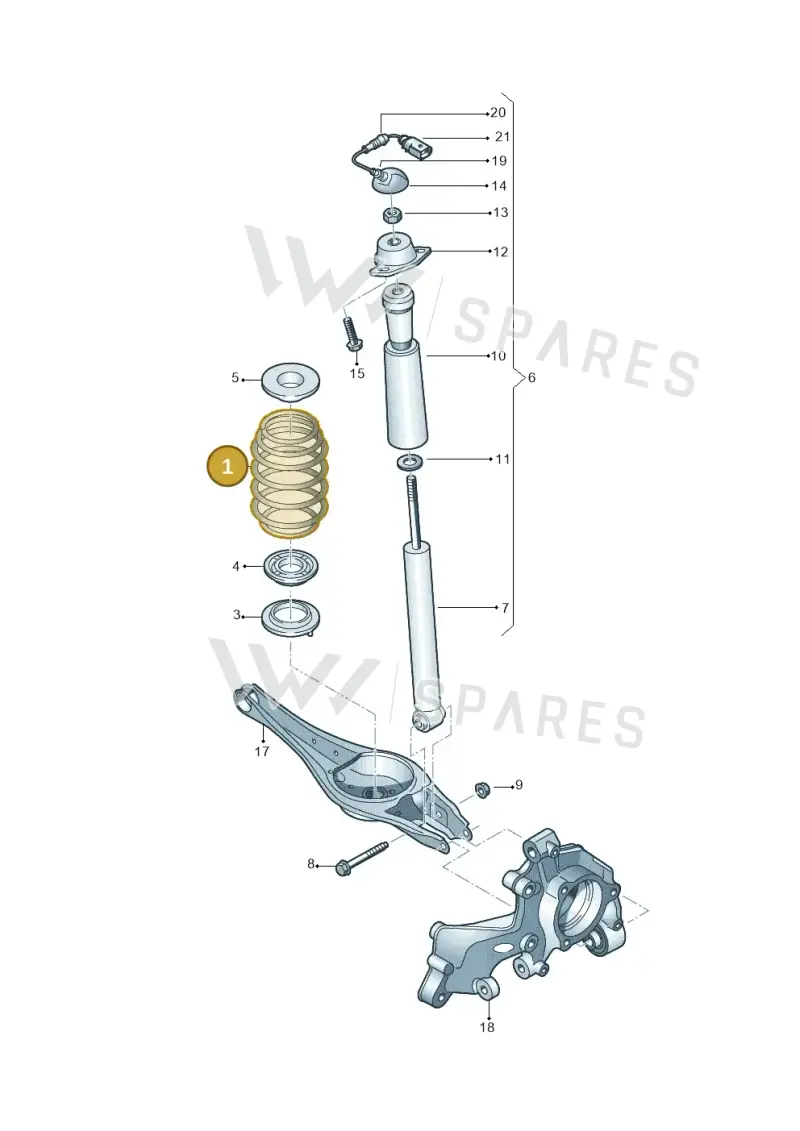

1 vehicleCoil Spring — locate 8S0511115DK Audi Coil Spring in the official exploded view and explore the surrounding assembly.
Parts in this assembly34
- 1Coilspring 8S0511115DF
- 1Coilspring 8S0511115DG
- 1Coilspring 8S0511115DH
- 1Coilspring 8S0511115DJ
- 1Coilspring 8S0511115DL
- 1Coilspring 8S0511115DM
- 1Coilspring 8S0511115DN
- 1Coilspring 8S0511115DP
- 1Coilspring 8S0511115DQ
- 1Coilspring 8S0511115DR
- 1Coilspring 8S0511115FP
- 3Underlay 5Q0512297D
- 5Underlay 8J0512149
- 6PartLeft8V0513021P
- 6PartLeft8V0513021R
- 6PartRight8V0513022B
- 6PartRight8V0513022C
- 6PartRight8V0513022D
- 6PartLeft8V0513021Q
- 8Screw N10883401
- 8Bolt N10628301
- 9Collar Nut N10106403
- 10Buffer 5Q0511358G
- 11Washer WHT002937
- 12Bearing 8S0513353
- 12Bearing 8V0513353
- 12Bearing 5Q0513353E
- 13Attach 8J0512041
- 14Part 8V0512133B
- 14Part 8V0512133
- 15Bolt N90648402
- 19Grommet 8V0512195
- 20Grommet 1J0906102
- 21Housing 1J0973802
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 2 | 0YG |
Diagrams & fitment data powered by oemdiagrams.com
8S0511115DK Audi Coil Spring is fitted on: Audi TTS Coupe 2.0 2014-2023.
