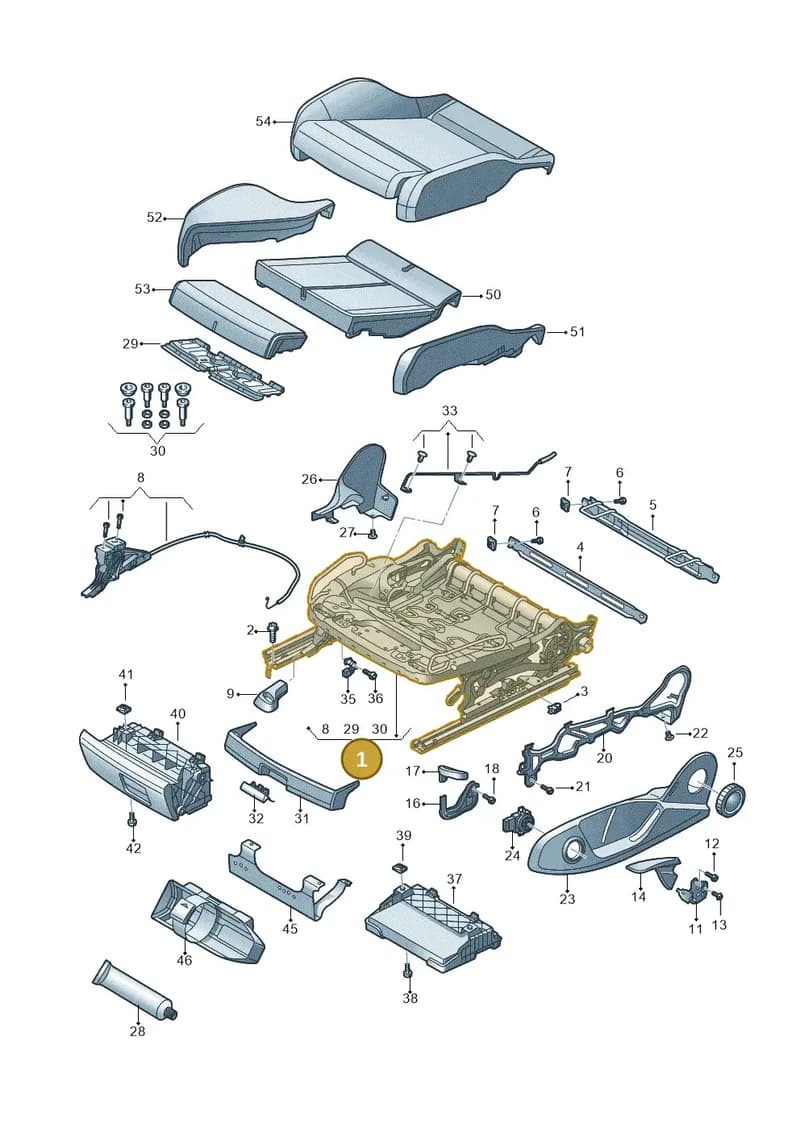

Number 1 marks the part’s position in the exploded view (Audi TTS (2014-2023)).
Product overview
Genuine OEM Audi Seat Frame with Height Adjustment, part number 8S0881105M. Fits Audi TTS (2014-2023). Shown as position 1 in the body diagram 850881000.
Catalogue entry: SEAT FRAME left.
Fitted with: 8S0881105D SEAT FRAME, 8S0881105P SEAT FRAME, 8S0881105H SEAT FRAME, 8S0881105AB SEAT FRAME, 8S0881105AD SEAT FRAME, 8S0881105J SEAT FRAME, 8S0881105AC SEAT FRAME, 8S0881105AE SEAT FRAME, N91147502 SCREW.
Technical details
- Category
- Seats
- Diagram sheet
- Audi 850881000, position 1
- ETKA group
- 8 / 81 (881)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- Q1D
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleSeat Frame With Height Adjustment — locate 8S0881105M Audi Seat Frame with Height Adjustment in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly48
- 1Seat FrameLeft8S0881105AB
- 1Seat FrameLeft8S0881105AC
- 1Seat FrameLeft8S0881105AD
- 1Seat FrameLeft8S0881105AE
- 1Seat FrameLeft8S0881105H
- 1Seat FrameLeft8S0881105J
- 1Seat FrameLeft8S0881105P
- 1Seat FrameRight8S0881106AB
- 1Seat FrameRight8S0881106AC
- 1Seat FrameRight8S0881106AD
- 1Seat FrameRight8S0881106AE
- 1Seat FrameRight8S0881106D
- 1Seat FrameRight8S0881106H
- 1Seat FrameRight8S0881106J
- 1Seat FrameRight8S0881106M
- 1Seat FrameRight8S0881106P
- 1Seat FrameLeft8S0881105D
- 2Screw N91147502
- 3Stop 8S0881063
- 4Tie-bar 8S8882775
- 4Tie-bar 8S8882775A
- 5Bracket 8S0881545
- 6Bolt N90737101
- 7Part N90088003
- 8CableRight8S8881614
- 8CableLeft8S8881613
- 9HandleRight8W0881232
- 9HandleLeft8W0881231
- 11LeverRight8S0881094
- 11LeverLeft8S0881093
- 13Bolt N10769601
- 14HandleRight8S0881254
- 14HandleLeft8S0881253
- 16LeverRight8S0881236
- 16LeverLeft8S0881235
- 17HandleRight8S0881092
- 17HandleLeft8S0881091
- 20Part 8S0881560
- 20Part 8S0881559
- 22Spring Rivet N0385012
- 23TrimLeft8S0881325A
- 23TrimLeft8S0881325AC
- 23TrimLeft8S0881325AD
- 23TrimLeft8S0881325AF
- 23TrimLeft8S0881325C
- 23TrimRight8S0881326
- 23TrimRight8S0881326A
- 23TrimRight8S0881326AC
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi TTS Coupe 2.0 | 2014-2023 | 1 | 1 |
The manufacturer’s catalogue lists this part number as fitted until 30 May 2016; later builds may use a superseding number.
Diagrams & fitment data powered by oemdiagrams.com
8S0881105M Audi Seat Frame with Height Adjustment is fitted on: Audi TTS Coupe 2.0 2014-2023.
