Product overview
Genuine OEM Audi Front Brake Pipe, part number 8U1614740A. This essential component transmits hydraulic pressure from the master cylinder to the braking system at the front of the vehicle. It is specifically designed for Left Hand Drive (LHD) vehicle configurations. The brake pipe weighs 0.066 kg and measures 0.26 meters in length. Using a genuine OEM brake pipe ensures the correct material strength, precise bends, and pressure resistance, which are critical for safe and effective operation of the braking system.
Catalogue entry: BRAKE PIPE lhd.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 26 × 12.7 × 5 cm
- Shipping weight
- 0.07 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- GP1
- L0L
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

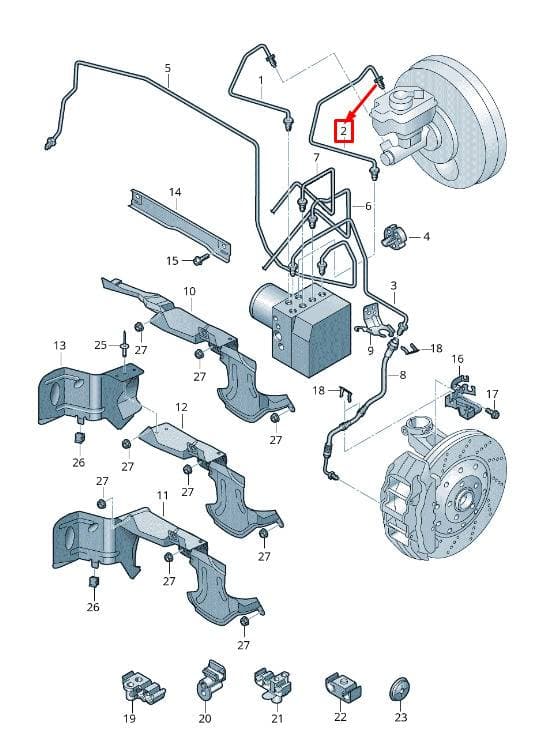

Parts diagram & fitment
1 vehicleBrake Pipe — locate 8U1614740A Audi Front Brake Pipe | LHD Configuration in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly32
- 1Brake PipeRight5N2614739C
- 1Brake PipeRight5N2614739D
- 1Brake PipeLeft8U1614739A
- 1Brake PipeLeft8U1614739
- 2Brake PipeRight5N2614740C
- 2Brake PipeRight5N2614740D
- 2Brake PipeLeft8U1614740B
- 3Part 5N0614723B
- 4Sleeve 1J0611853
- 5Brake PipeRight5N2614724B
- 5Brake PipeLeft5N1614724C
- 6Brake Pipe 5N0614725F
- 7Brake Pipe 5N0614726F
- 8Brake Hose 8U0611701
- 10Prot Plate 8U1611732A
- 10Prot Plate 8U1611732
- 11Prot Plate 8U2611732A
- 11Prot Plate 8U2611732
- 14Cover 5N0611732A
- 14Cover 5N1611716
- 15Bolt N91123501
- 16RetainerRight8U0611842
- 16RetainerLeft8U0611841
- 17Bolt N90245210
- 18Bracket 191611715
- 19Bracket 3C0611797C
- 20Retainer 3C0611797B
- 21Bracket 5Q0611797C
- 22Clip 8K0611797D
- 23Grommet 1K0611751
- 26Clip N90251602
- 27Collar Nut N01508210
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RSQ3 qu. 2.5 | 2013-2018 | 2 | 1 | GP1 |
Diagrams & fitment data powered by oemdiagrams.com
8U1614740A Audi Front Brake Pipe | LHD Configuration is fitted on: Audi RSQ3 qu. 2.5 2013-2018.
