8V0820741C Refrigerant Line
- 8V0820741CThis pageNot stocked
Sep 2023 - 8V0820741DCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

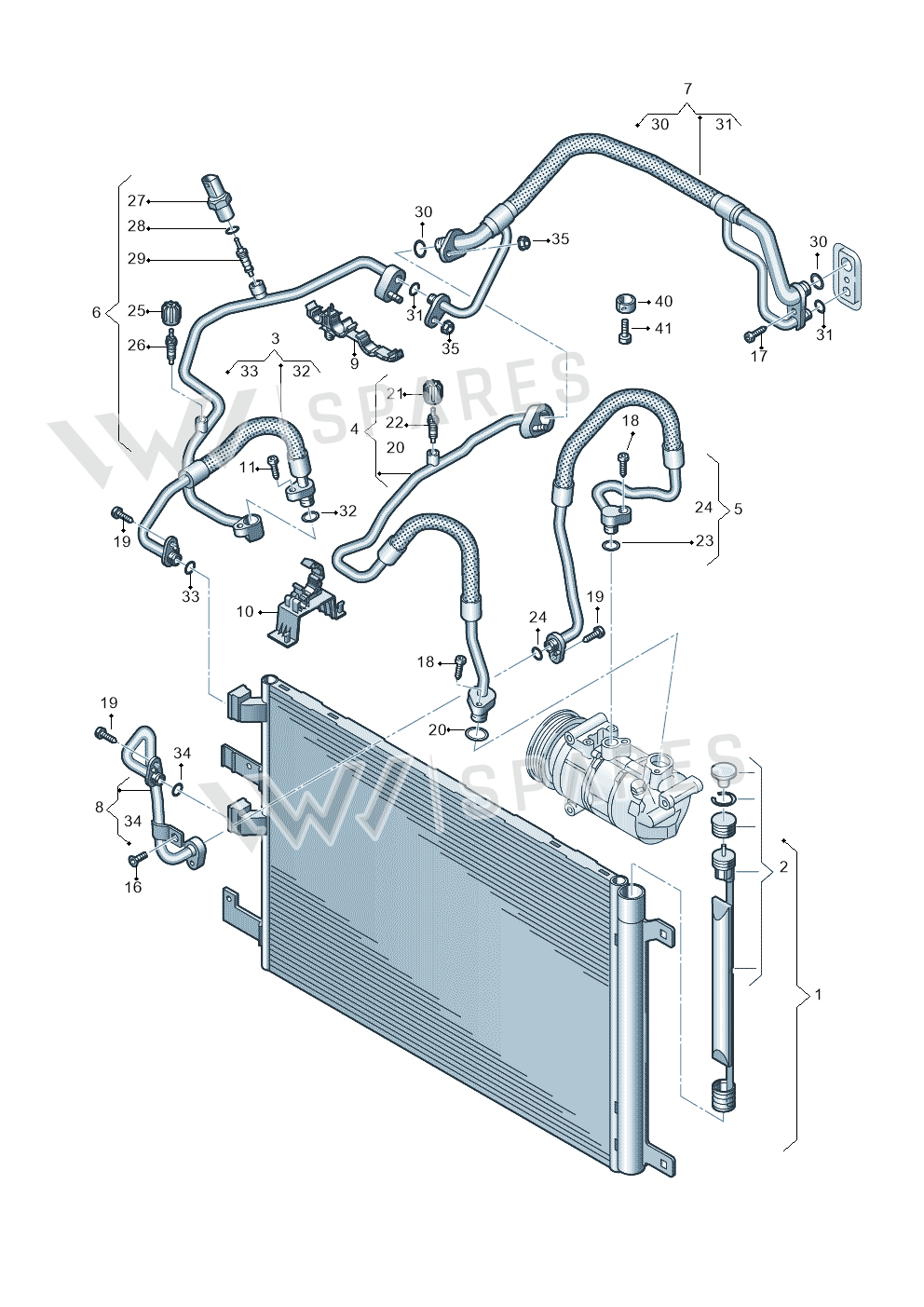

1 vehicleRefrigerant Line — locate Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Condenser 8V0816411A
- 2Insert 8V0298403
- 3Line 8V0820742
- 4Line 8V0816743
- 4Line 8V0820743C
- 5Line 8V0816721F
- 5Line 8V0816721B
- 6Line 8V0816741B
- 7Pipe 8V2816738B
- 7Pipe 8V2816738C
- 7Pipe 8V1816738B
- 8Line 8V0820722A
- 9Clip 5Q0820774
- 10Bracket 5Q0820769
- 11Bolt N10347204
- 16Bolt N10456003
- 17Bolt N91096801
- 18Screw N10414402
- 19Bolt N10347103
- 20Seal Ring 8E0260749C
- 21Part 5Q0816231
- 21Part 3C0820231
- 22Valve 3D0820855A
- 22Valve 8E0820855
- 23Seal Ring 4E0260749A
- 24Seal Ring 3D0260749C
- 25Part 3D0820581
- 25Part 5Q0816581
- 25Part 5Q0816581A
- 25Part 3C0820581
- 27Sender 4H0959126B
- 28Seal Ring 7H0820896
- 29Valve 8A0820855AA
- 30Seal Ring 4E0260749B
- 31Seal Ring 4D0260749B
- 35Collar Nut N01508210
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS3 Limousine | 2017-2020 | 6 | 1 | KK1 |
Diagrams & fitment data powered by oemdiagrams.com
Refrigerant Line is fitted on: Audi RS3 Limousine 2017-2020.
