Product overview
Genuine OEM Audi Fuel Tank Heat Shield, part number 8W0201308AH. This component is designed to protect the fuel tank from excessive heat generated by the exhaust system or other underbody components. It is positioned directly beneath the fuel tank, acting as a thermal barrier. Weighing approximately 0.468 kg, it is a substantial and crucial protective element. Choosing a genuine OEM heat shield ensures proper thermal insulation and a precise fit, maintaining factory safety standards and preventing potential heat-related issues.
Catalogue entry: HEAT SH..
Fitted with: 8W0201308L HEAT SH., 8W0201308T HEAT SH., 8W0201308AE HEAT SH., N91068501 panel nut.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 60 × 53.5 × 25 cm
- Shipping weight
- 0.47 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

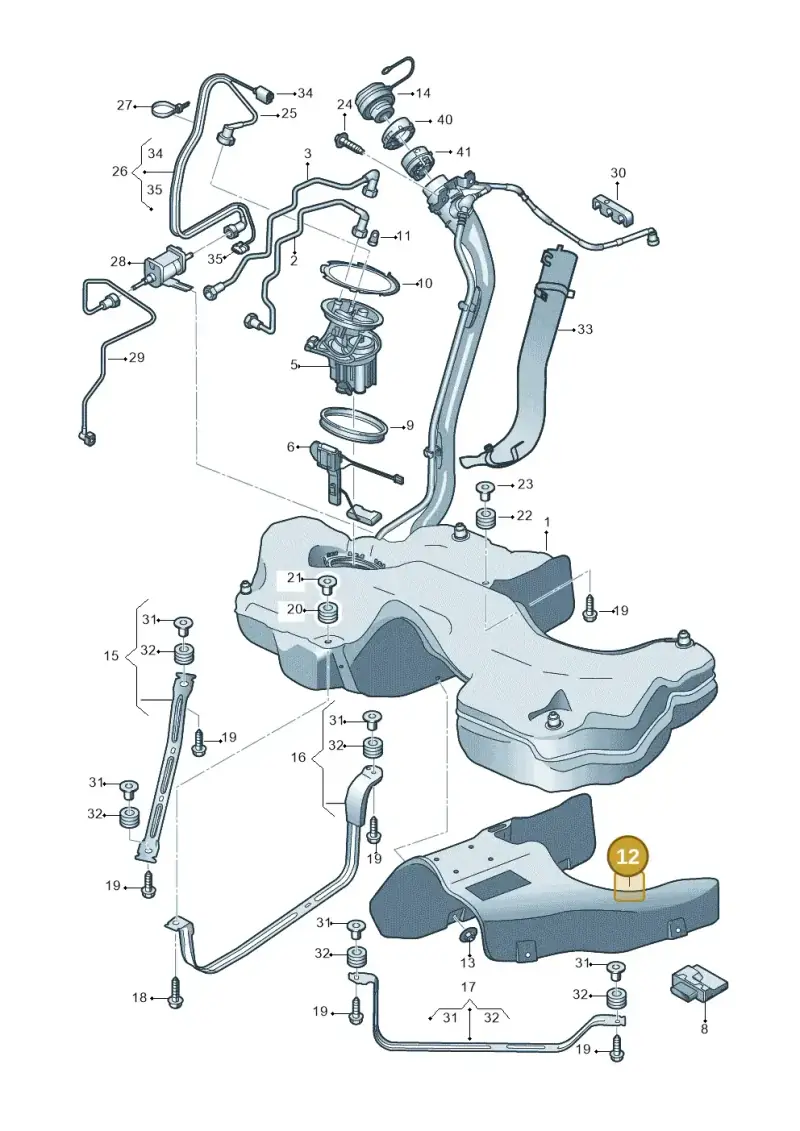

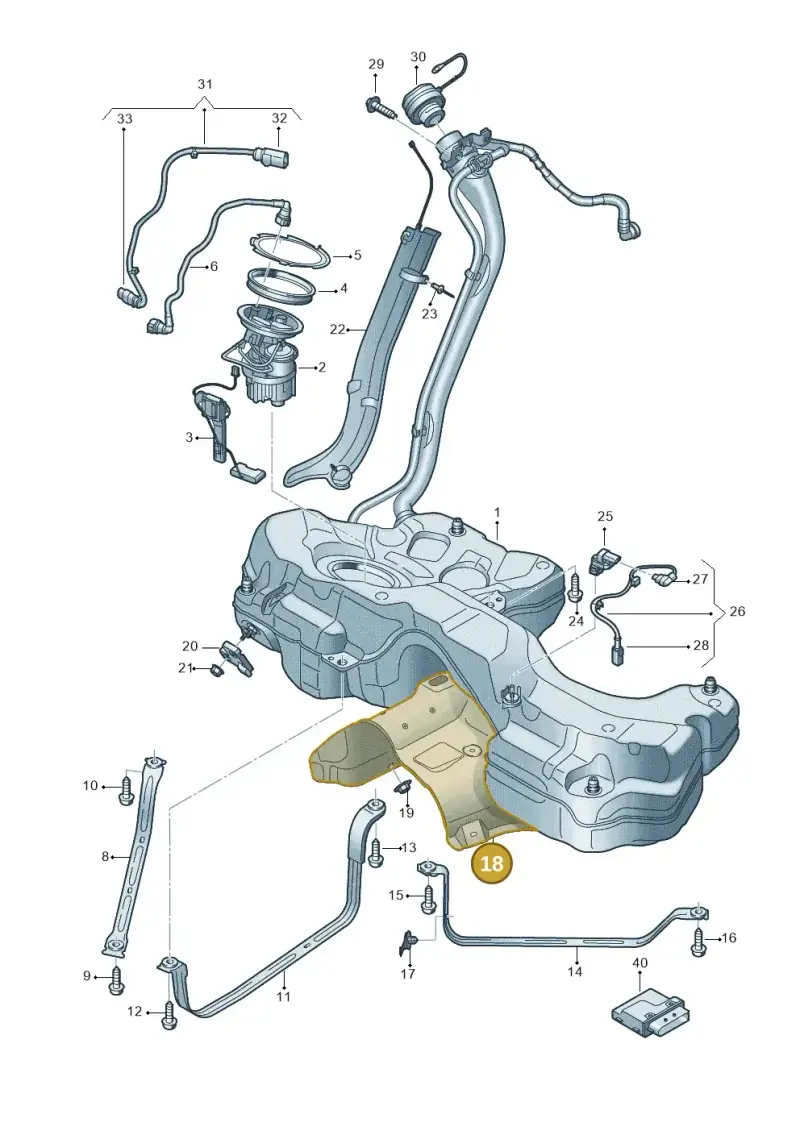

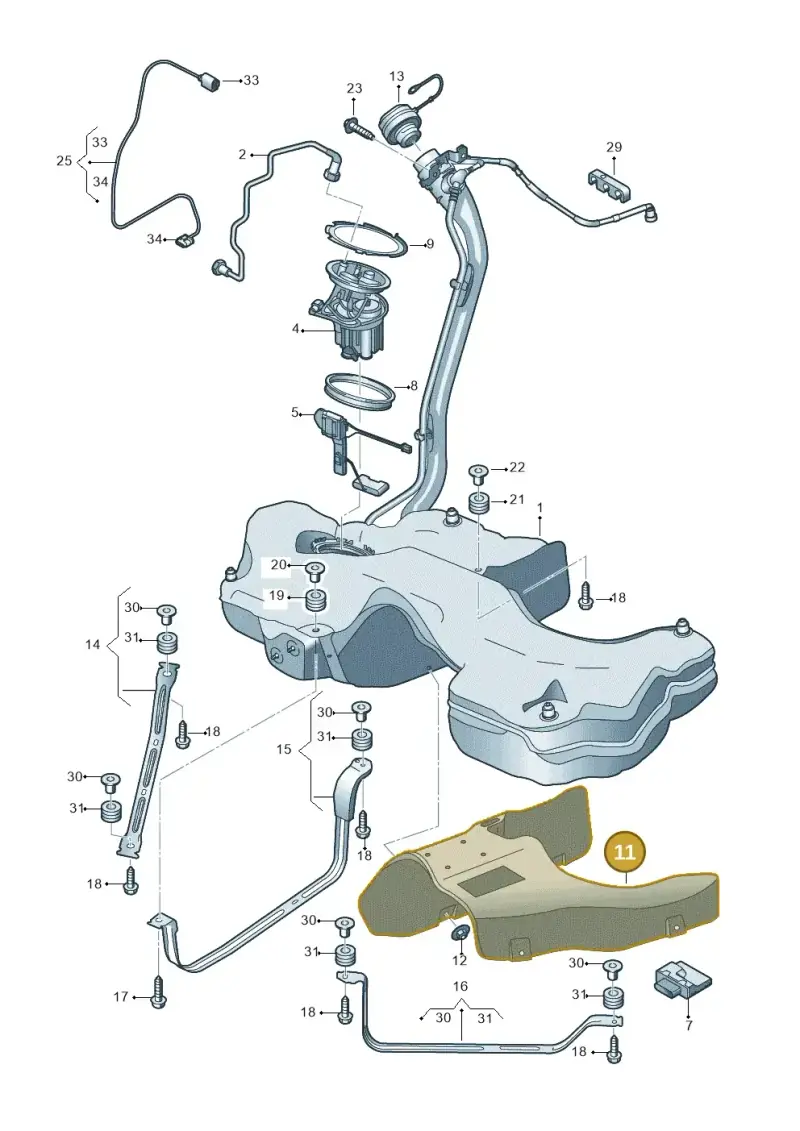

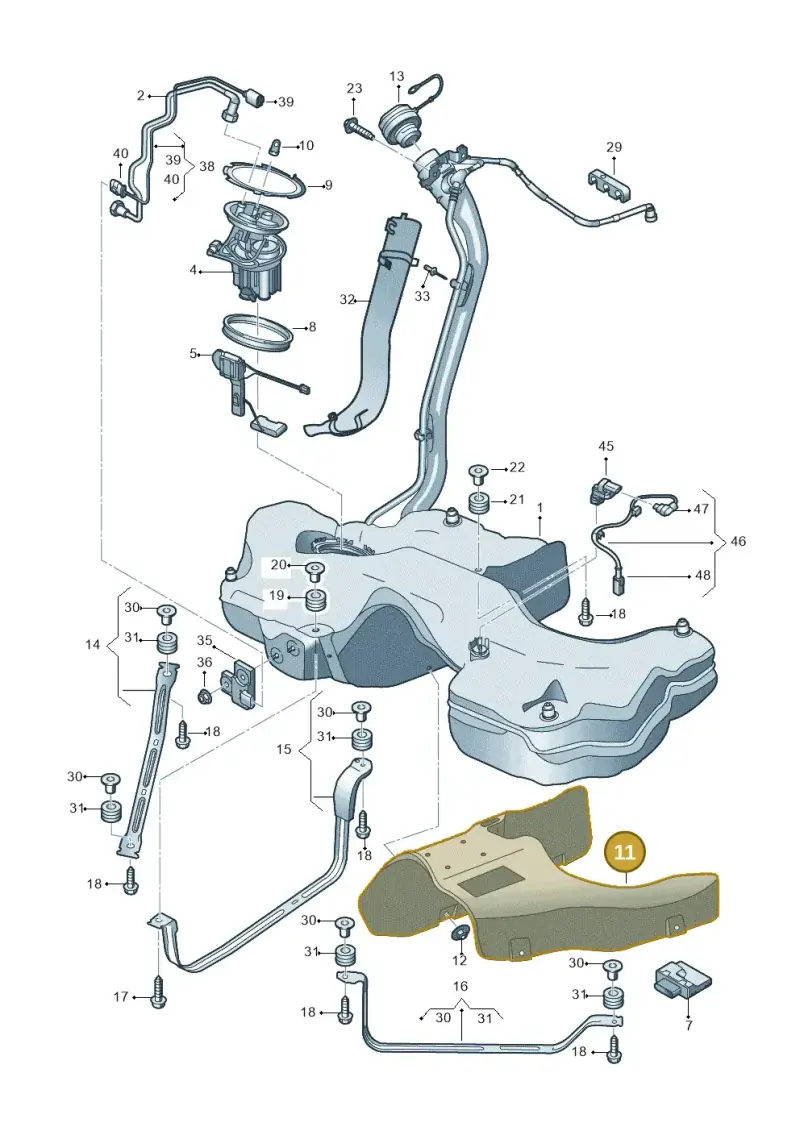

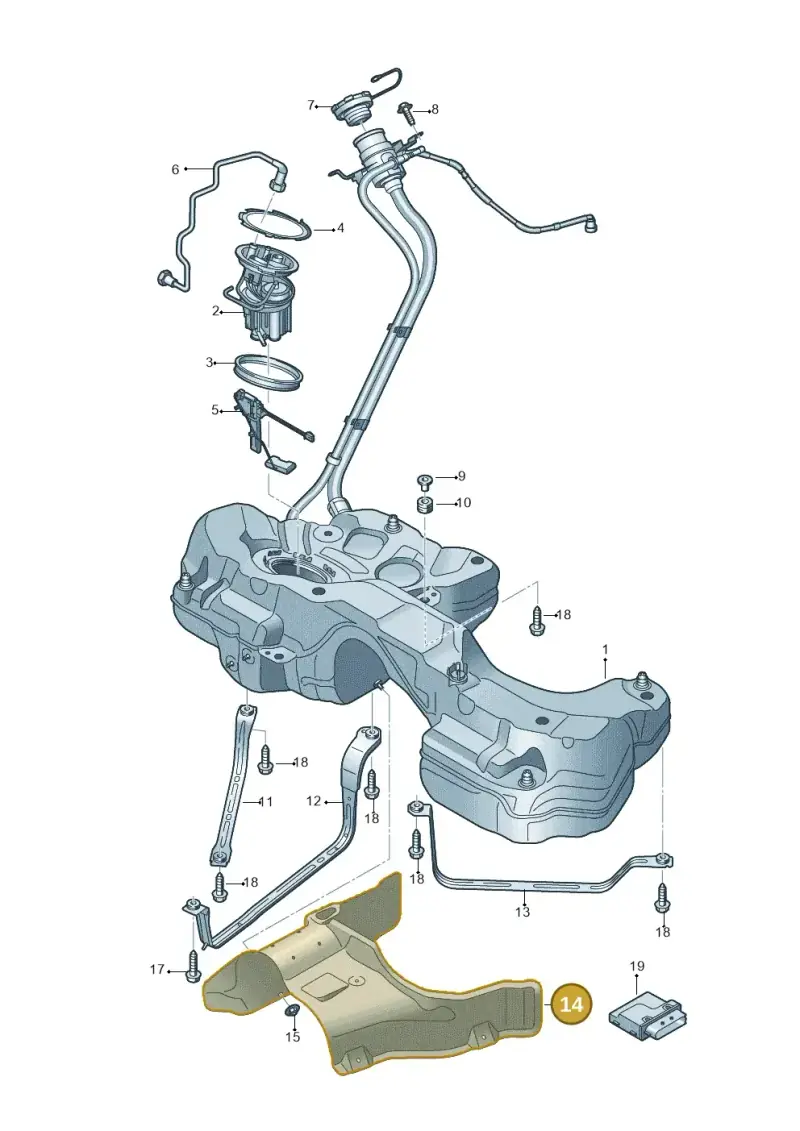

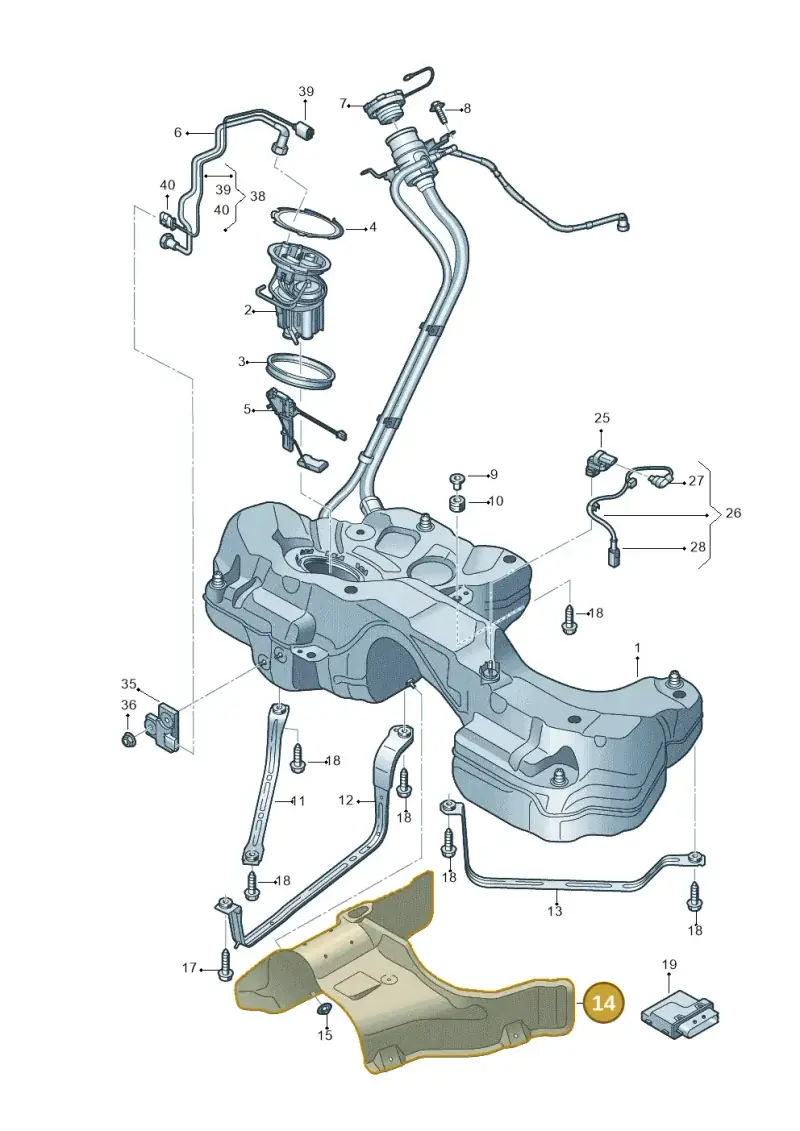

Parts diagram & fitment
5 vehiclesHeat Shield — locate 8W0201308AH Audi Fuel Tank Heat Shield | Thermal Protection in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Container 8W0201055D
- 1Container 8W0201055B
- 2Module 4N0919088A
- 3Seal Ring 1K0919133D
- 4Part 1K0201375
- 5Sender 8W0919047E
- 6Fuel Line 8W0201220
- 6Fuel Line 8W0201220A
- 7Ap&cap With Retaining Strap For Fuel Tank Cap 8W0201550H
- 7Ap&cap With Retaining Strap For Fuel Tank Cap 8W0201550A
- 8Screw N91257901
- 9Bush 8K0201693D
- 10Rubber Bush 8K0201840D
- 11Strap 8W0201653G
- 11Strap 8W0201653K
- 12Strap 8W0201653E
- 13Strap 8W0201653
- 14Heat Sh 8W0201308AE
- 15Part N91068501
- 17Screw N91165402
- 18Screw N91243601
- 19Control Unit 4M0906093L
- 19Control Unit 4M0906093M
- 19Control Unit 4M0906093N
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS4 Avant | 2017- | 14 | 1 |
| Audi RS5 Sportback | 2017- | 14, 18 | 1 |
| Audi A5 Sportback | 2016-2020 | 11, 12 | 1 |
| Audi A5 Cabrio 2.0 | 2016-2018 | 11, 12, 18 | 1 |
| audi a4 2.0 | 2015-2019 | 11, 12 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
8W0201308AH Audi Fuel Tank Heat Shield | Thermal Protection is fitted on: Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
