Heat Sh exploded parts diagram — audi a6 2.0 · 2018-, position 10
Exploded view
audi a6 2.0 · 2018- · position 10Full diagram ↓
8W0407720A

8W0407720A Heat Sh

£45.17
£37.33 excl. VAT
Supersession roadoldest to newest
  1. 8K0407720Not stocked
    Aug 2017
  2. 8W0407720AThis pageNot stocked
    Aug 2020
  3. 8W0407720BCurrent number
Current part number8W0407720BWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

11 vehicles

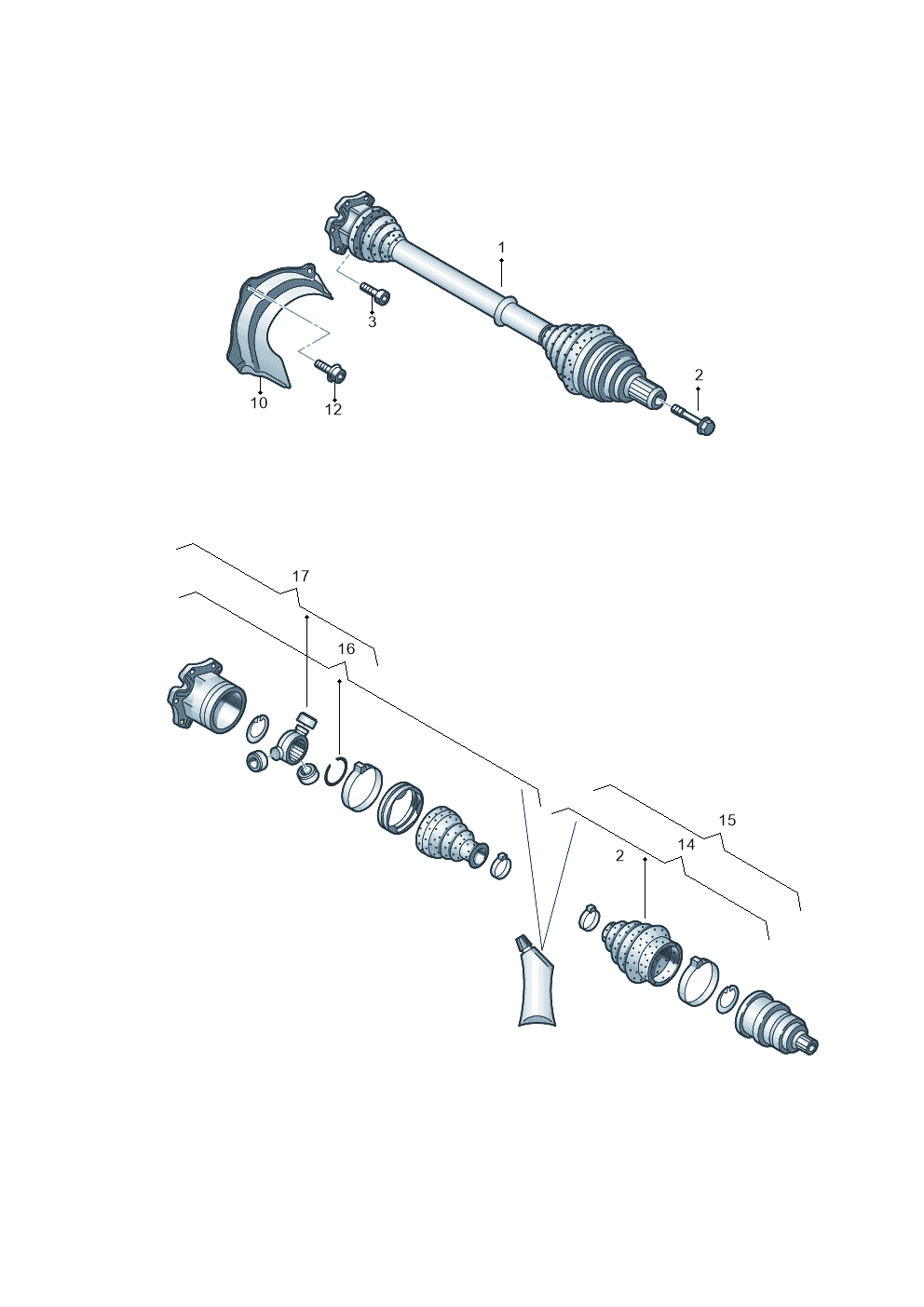

Heat Sh — locate Heat Sh in the official exploded view and explore the surrounding assembly.

RThis part is the Right side

Parts in this assembly9
Vehicle fitment table11

Europe (9)

VehicleYearsPos.QtyPR
audi a6 2.02018-101
Audi A7 Sportback2018-101
Audi RS4 Avant2017-101
Audi RS5 Sportback2017-101
Audi Q52016-2020101
Audi A5 Sportback2016-2020101
Audi A5 Cabrio 2.02016-2018101
audi a4 2.02015-201910
Audi Q5 qu. 2.02009-2018101L0L

Other markets (2)

VehicleYearsPos.QtyPR
Audi Q5 qu. 2.02018-101
audi a6 1.82015-2019101

Diagrams & fitment data powered by oemdiagrams.com

Heat Sh is fitted on: audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q5 qu. 2.0 2009-2018; Audi Q5 qu. 2.0 2018-; audi a6 1.8 2015-2019.
