Product overview

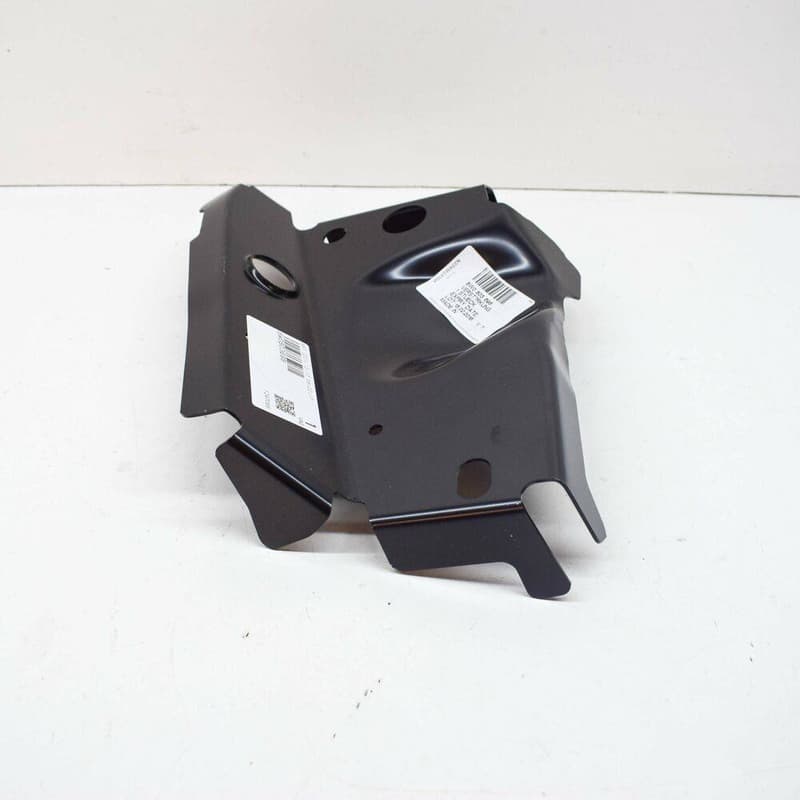

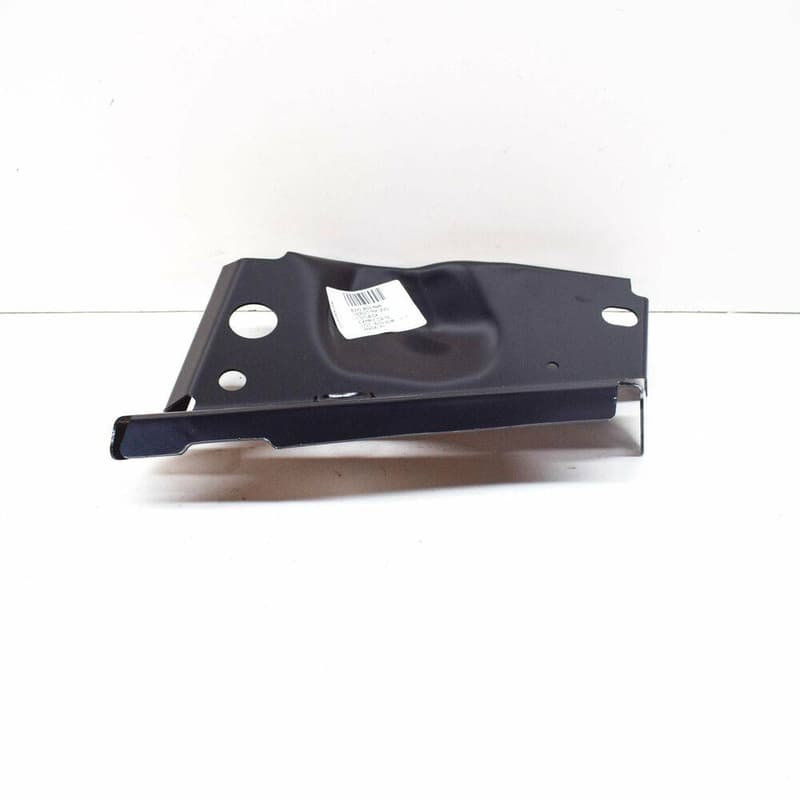

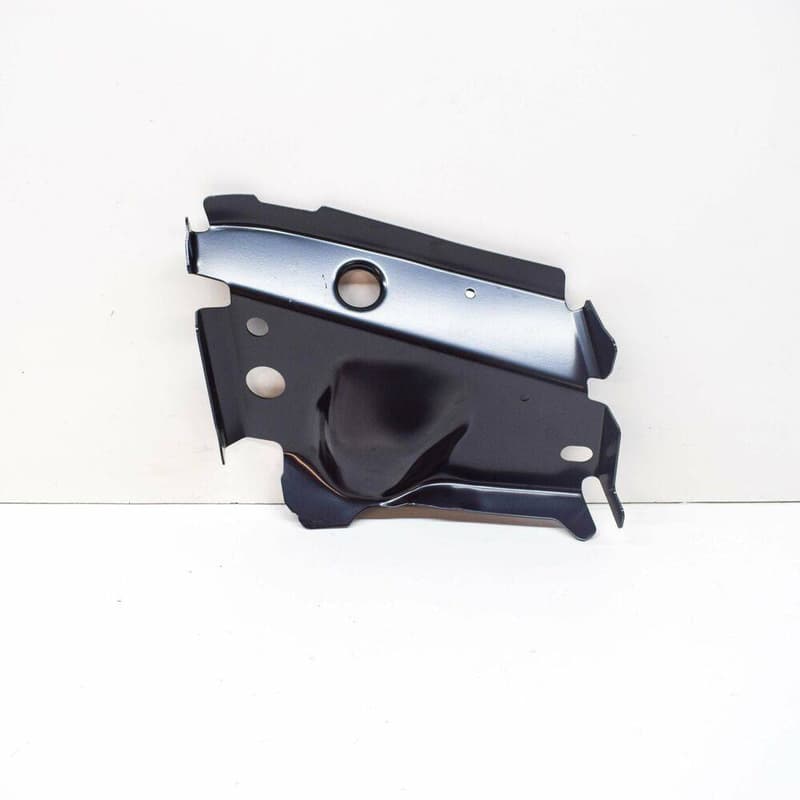

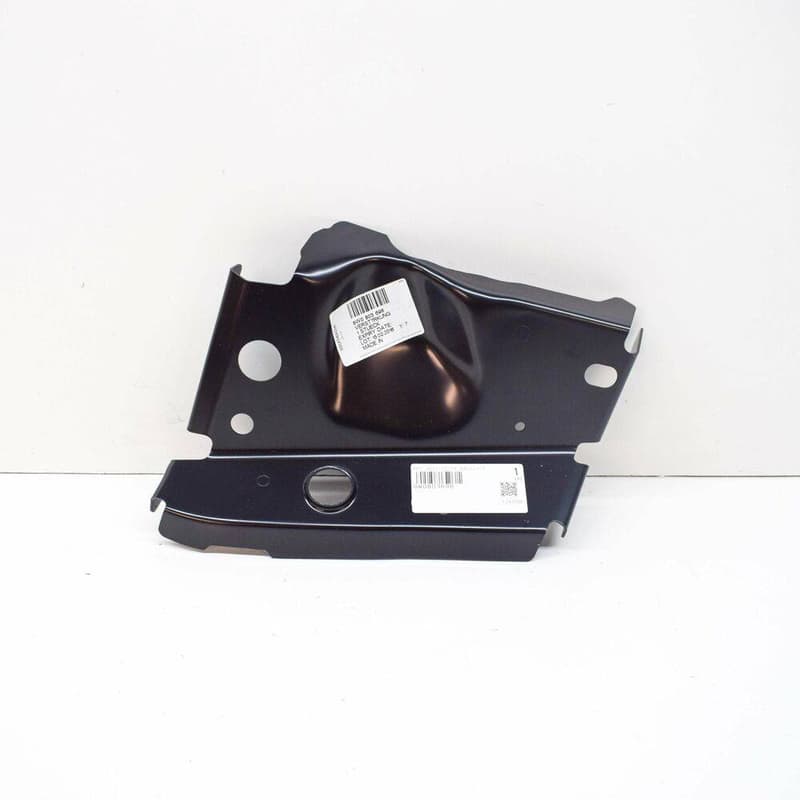

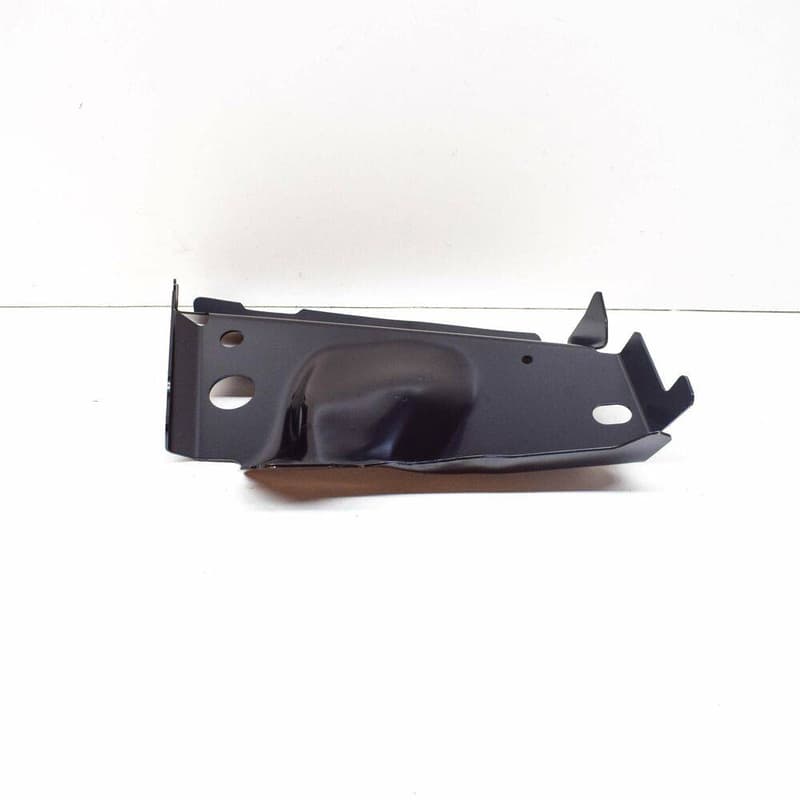

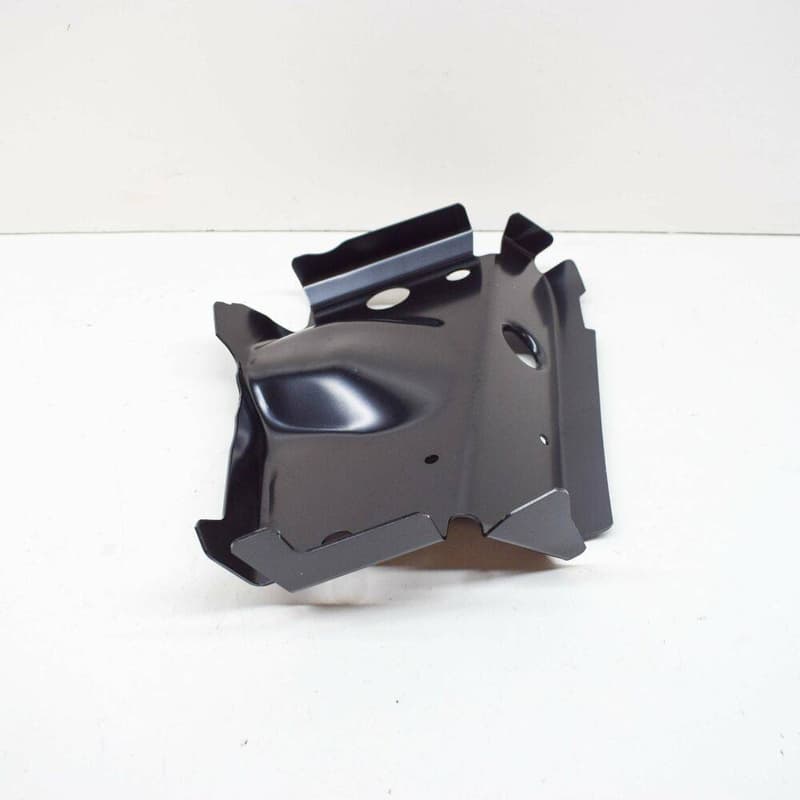

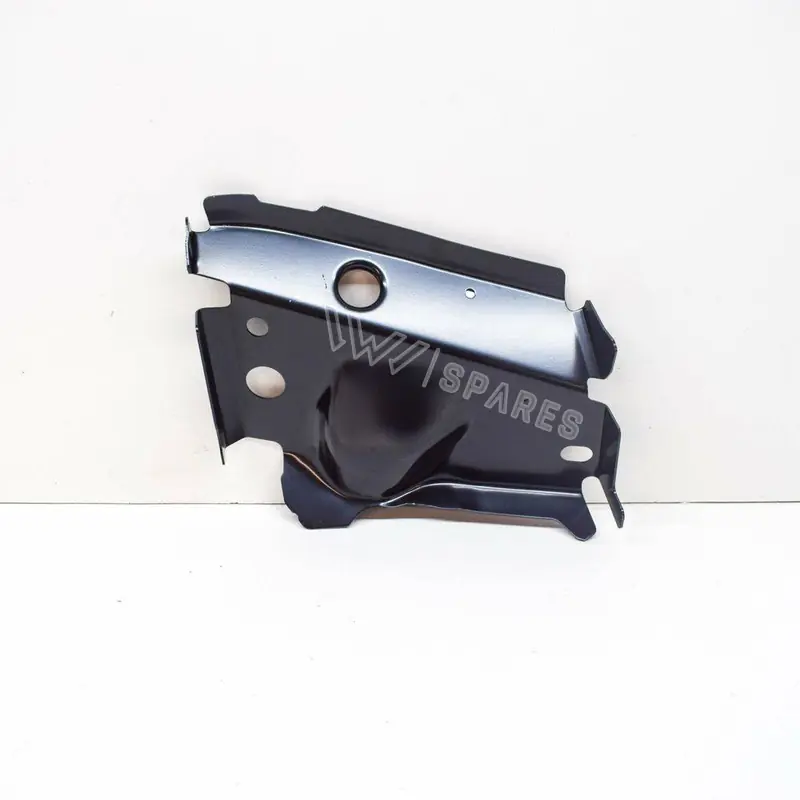

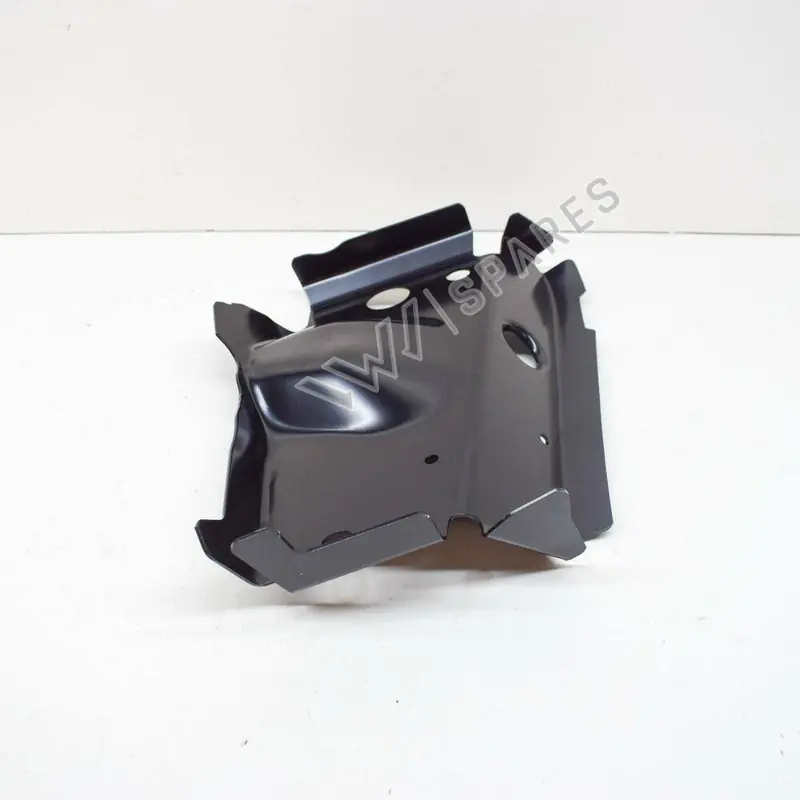

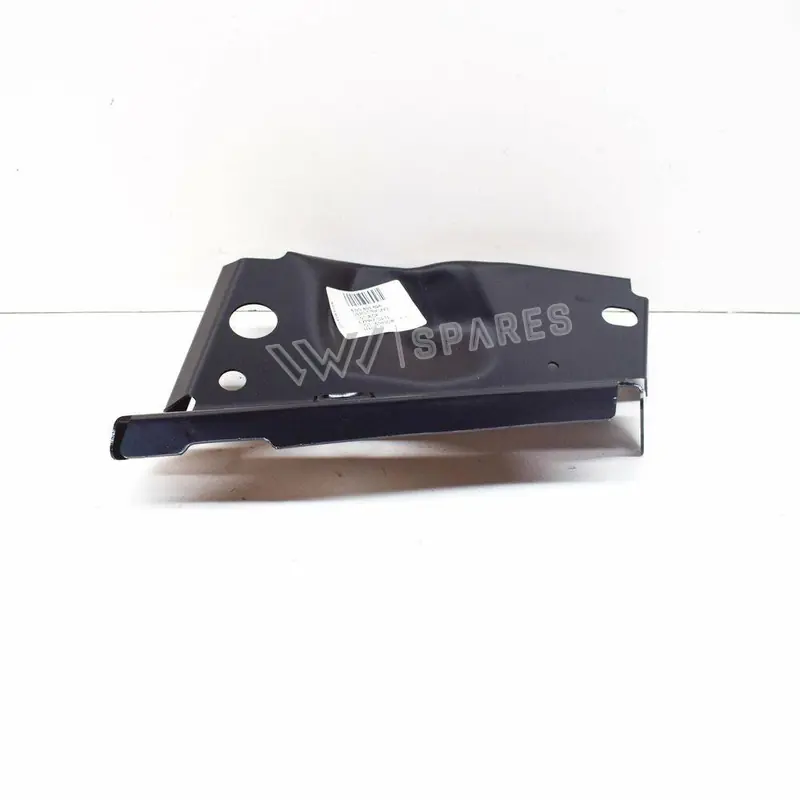

Genuine OEM Audi Floor Pan Reinforcement, part number 8W0803698. This structural component is designed to add significant strength and rigidity to the vehicle's floor pan, contributing to overall chassis integrity and occupant safety. It is specifically positioned on the front right side of the underbody, integrating seamlessly with the existing structure. Constructed from durable metal and weighing 0.912 kg, it is built to withstand impacts and stresses. Choosing a genuine OEM reinforcement ensures precise dimensions, correct mounting points, and the specified material strength, which are critical for maintaining the vehicle's designed crash performance and structural longevity.
Technical details
- Category
- Body Exterior
- Customs (HS) code
- 87082990
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 34 × 23.4 × 6.8 cm
- Shipping weight
- 0.91 kg
Parts diagram & fitment
6 vehiclesReinforcement — locate 8W0803698 Audi Floor Pan Reinforcement | Front Right in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(38)
- 1Cover 8W1805227
- 1CoverLeft8W1805227A
- 2Grommet 8W1805673
- 2GrommetLeft8W1805673A
- 2Grommet 8W1805673B
- 2GrommetLeft8W1805673C
- 3Clos ElementRight8W0802112
- 3Clos ElementLeft8W0802111
- 7SupportRight8W0802452
- 7SupportLeft8W0802451
- 8Support 8W0802840
- 8Support 8W0802839
- 9Wheel HousingRight8W0806214B
- 9Wheel HousingLeft8W0806213B
- 11Reinforce 8W0806280
- 11Reinforce 8W0806279
- 12Pop Rivet 4D0803217L
- 14SupportRight8W0805846
- 14SupportLeft8W0805845
- 18PlateRight8W0802172A
- 18PlateLeft8W0802171A
- 19ReinforceLeft8W0803697
- 22Side MemberRight8W0803104A
- 27SupportRight8W0805678
- 27SupportLeft8W0805677
- 28Plate 8W0805030B
- 28Plate 8W0806761A
- 30Bear BrackRight8W0823402A
- 30Bear BrackLeft8W0823401A
- 34Cross MemberRight8W0805282A
- 34Cross MemberLeft8W0805281A
- 36CoverRight8W0806584B
- 36PartRight8W0806584C
- 36CoverLeft8W0806583B
- 36PartLeft8W0806583C
- 37Plate 8W0810890C
- 37Plate 8W0810889C
- 38Bungs 8W0803593
Diagrams & fitment data powered by oemdiagrams.com
8W0803698 Audi Floor Pan Reinforcement | Front Right is fitted on: Audi A4L 2.0 2016-; Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi A5 Sportback 2016-2020.
