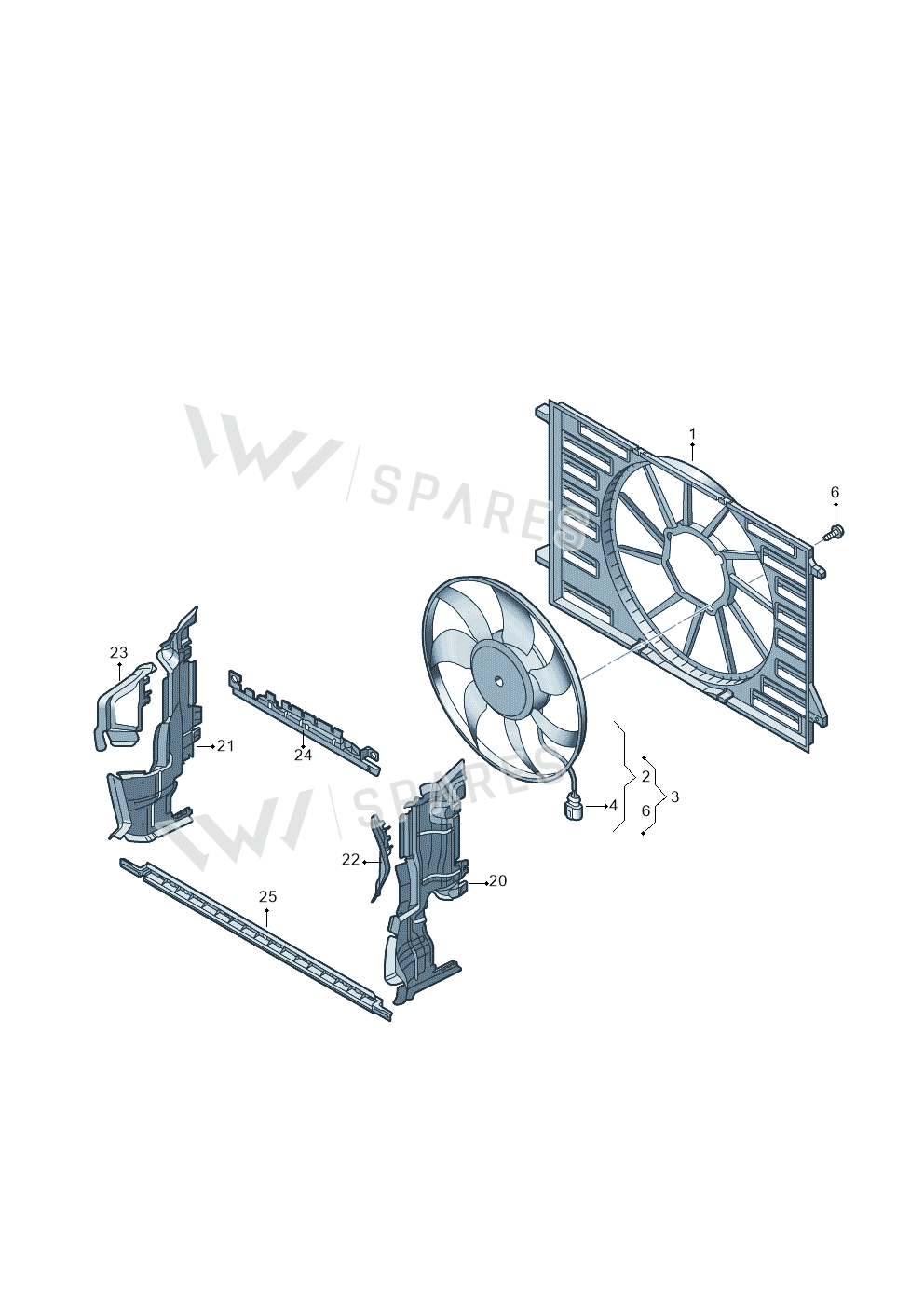

Radiator Fan With Control Unit exploded parts diagram — Audi A5 Sportback · 2016-2020, position 3
Exploded view
Audi A5 Sportback · 2016-2020 · position 3Full diagram ↓
8W0959455F

8W0959455F Radiator Fan With Control Unit

£740.42
£611.92 excl. VAT
Supersession road4 numbers since 2020
  1. 8W0959455CNot stocked
    Mar 2020
  2. 8W0959455FThis pageNot stocked
    Nov 2017
  3. 8W0959455MSuperseded
    Jan 2021
  4. 8W0959455TCurrent number
Current part number8W0959455TWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

4 vehicles

Radiator Fan With Control Unit — locate Radiator Fan With Control Unit in the official exploded view and explore the surrounding assembly.

Parts in this assembly23
Vehicle fitment table4

Europe (4)

VehicleYearsPos.Qty
Audi A5 Sportback2016-202031
Audi A5 Cabrio 2.02016-201831
audi a4 2.02015-201931
Audi Q7 qu. 3.0 TDI2015-201921

Diagrams & fitment data powered by oemdiagrams.com

Radiator Fan With Control Unit is fitted on: Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019.
