8W0971228AL Wiring Set
- 8W0971228ALThis pageNot stocked
Sep 2023 - 8W0971228BTCurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

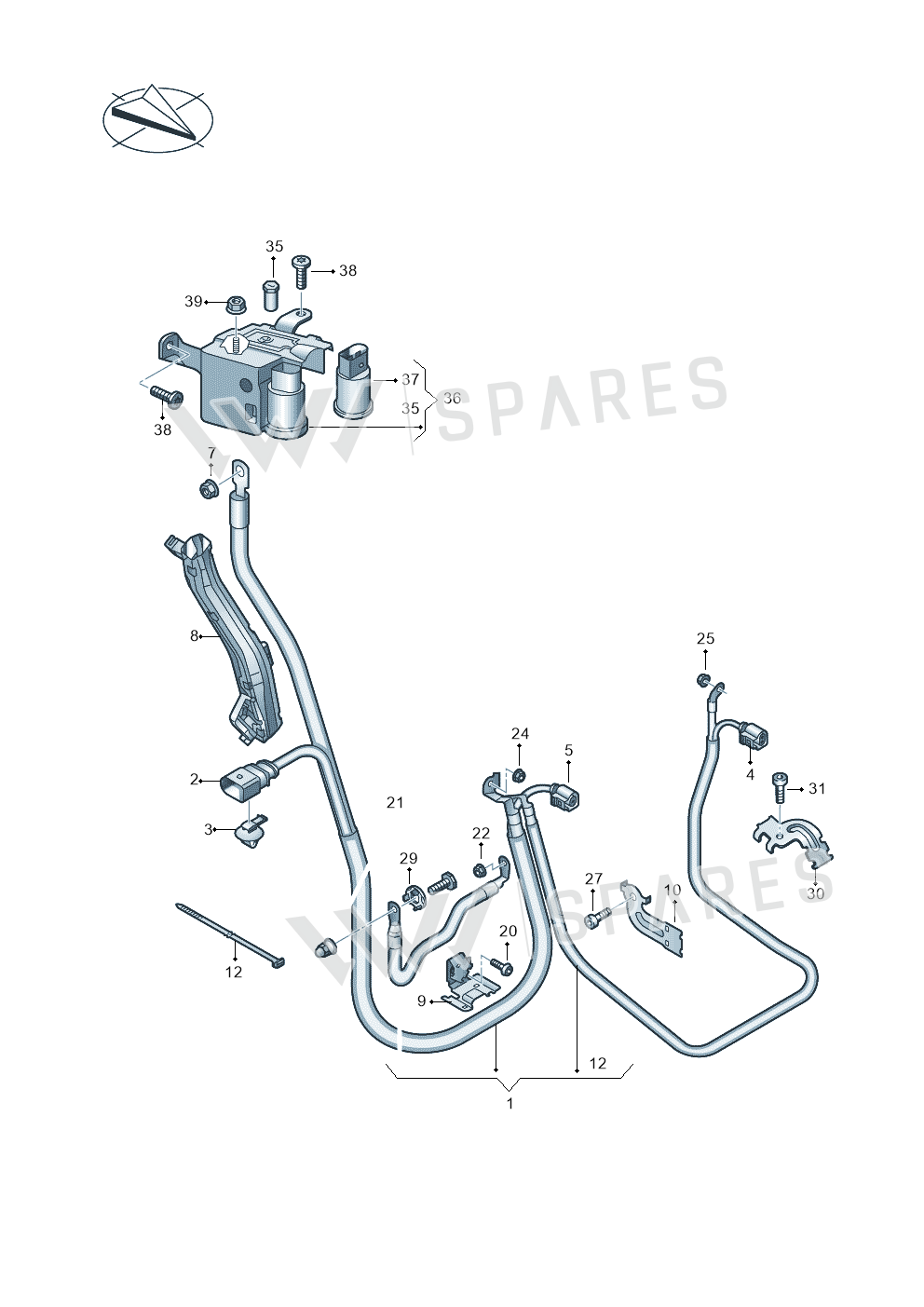

5 vehiclesWiring Set — locate Wiring Set in the official exploded view and explore the surrounding assembly.
Parts in this assembly20
- 1Wiring Set 8W0971228BT
- 2Part 1J0973852
- 3Part 3D0971830J
- 4Part 4D0971992B
- 5Part 1K0973751
- 7Collar Nut N10609201
- 8Cable Duct 8W0971341
- 9Cable Duct 8W0971502P
- 10Bracket 8W0971502N
- 12Cable Tie N90937702
- 20Bolt N10451405
- 21Screw WHT000869
- 27Bolt N10405604
- 29Fuse 4B0971260A
- 30Bracket 4M0971502G
- 36Junction 8W0941823E
- 36Junction 8W0941823
- 37Condenser 8W0903291
- 38Bolt N91096701
- 39Part N90488005
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi RS4 Avant | 2017- | 1 | 1 | D | |
| Audi RS5 Sportback | 2017- | 1 | 1 | ||
| Audi A5 Sportback | 2016-2020 | 1 | 1 | ||
| Audi A5 Cabrio 2.0 | 2016-2018 | 1 | 1 | D | |
| audi a4 2.0 | 2015-2019 | 1 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Wiring Set is fitted on: Audi RS4 Avant 2017-; Audi RS5 Sportback 2017-; Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
