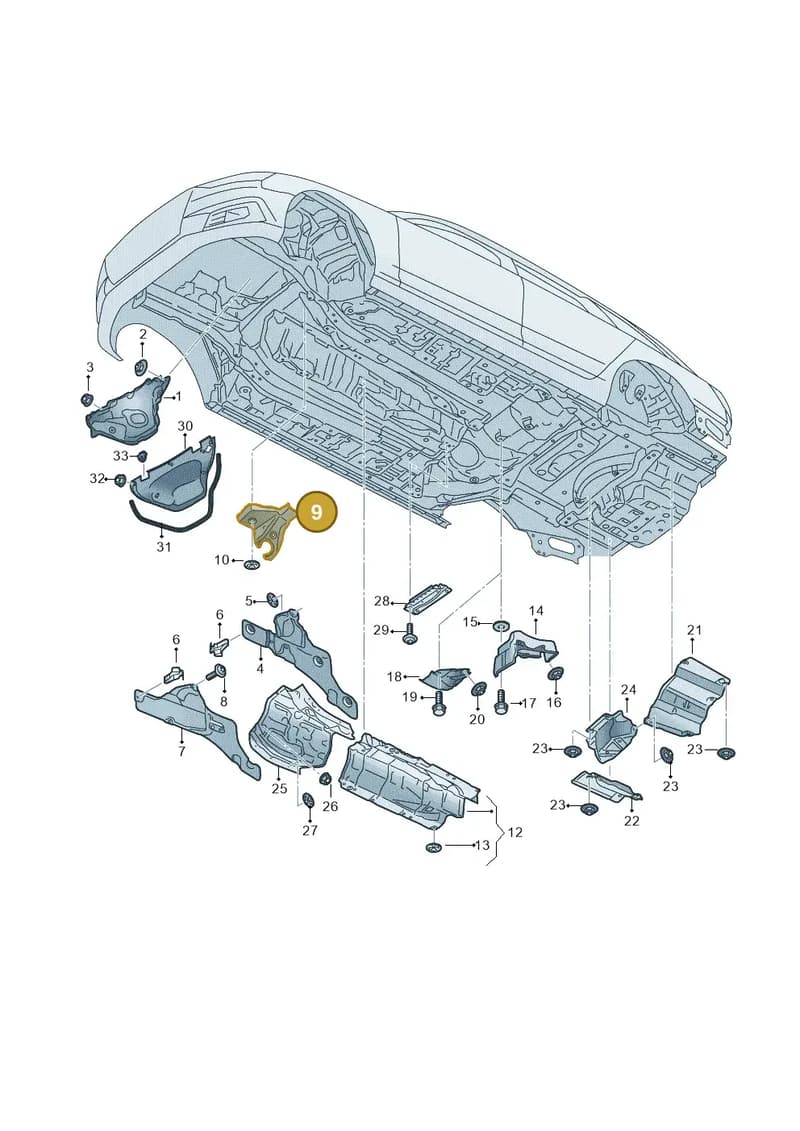

Number 9 marks the part’s position in the exploded view (Audi A5 Sportback (2016-2025)).
Product overview
Genuine OEM Audi Heat Shield for Bulkhead, part number 8W2804163C. Fits Audi A5 Cabriolet (2016-2025), Audi A5 Sportback (2016-2025), Audi A4 (2015-2025). Shown as position 9 in the body diagram 849804000.
Catalogue entry: HEAT SH. left rhd 4-cylinder.
Technical details
- Category
- Body Exterior
- Diagram sheet
- Audi 849804000, position 9
- ETKA group
- 8 / 04 (804)
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 1VG
- L0R
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesHeat Shield For Bulkhead — locate 8W2804163C Audi Heat Shield for Bulkhead in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly48
- 1Heat Sh 8W0804165B
- 1Heat Sh 8W0804165C
- 1Heat Sh 8W0804165D
- 1Heat Sh 8W0804165E
- 1Sound Abs 8W0863829D
- 1Sound Abs 8W0863829E
- 1Sound Abs 8W0863829F
- 1Sound Abs 8W0863829G
- 2Part N90708803
- 3Part N91173301
- 4Heat Sh 8W0804161A
- 4Heat Sh 8W0804161B
- 4Insulation 8W0863827A
- 4Insulation 8W0863827B
- 4Insulation 8W0863827C
- 5Washer N90335004
- 6Clip 8K0863203
- 7Heat Sh 8W0804162A
- 7Heat Sh 8W0804162B
- 8Screw WHT003841
- 9Heat ShLeft8W1804163D
- 9Heat ShLeft8W1804163G
- 9Heat ShLeft8W1804163H
- 9Heat ShLeft8W1804164D
- 9Heat ShLeft8W1804164E
- 9Heat ShLeft8W1804164F
- 9Heat ShRight8W2804163E
- 9Heat ShRight8W2804163G
- 9Heat ShRight8W2804164D
- 9Heat ShRight8W2804164E
- 9Heat ShRight8W2804164F
- 9Heat ShLeft8W1804163E
- 12Heat Sh 8W0804160C
- 12Heat Sh 8W0804160D
- 12Heat Sh 8W0804160B
- 14Heat Sh 8W0804173
- 14Heat Sh 8W0804173C
- 15Washer N90899502
- 17Screw N91243601
- 18Heat Sh 8W0804169A
- 19Bolt N90959003
- 21Heat Sh 8W7804171
- 22Heat Sh 8W7804172
- 24Heat Sh 8W7804174
- 25Heat Sh 8W0803979D
- 25Heat Sh 8W0803979E
- 25Heat Sh 8W0803979F
- 25Heat Sh 8W0803979J
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| Audi A5 Sportback | 2016-2020 | 9 | 1 | D | |
| Audi A5 Cabrio 2.0 | 2016-2018 | 9 | 1 | PR:1VG+0F3 | |
| audi a4 2.0 | 2015-2019 | 9 |
Diagrams & fitment data powered by oemdiagrams.com
8W2804163C Audi Heat Shield for Bulkhead is fitted on: Audi A5 Sportback 2016-2020; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019.
