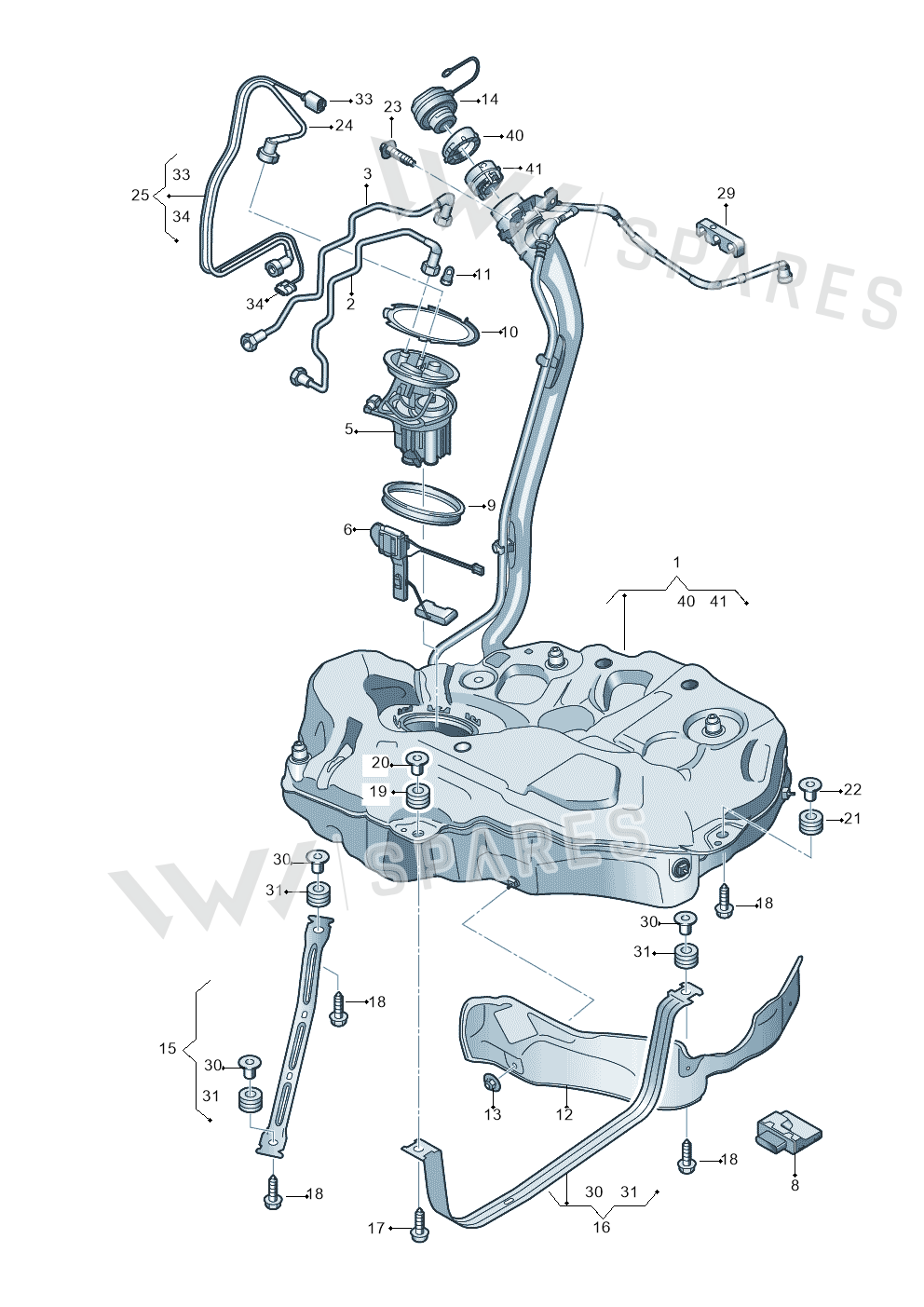

Fuel Tank exploded parts diagram — Audi A5 Cabrio 2.0 · 2016-2018, position 1
Exploded view
Audi A5 Cabrio 2.0 · 2016-2018 · position 1Full diagram ↓
8W7201060J

8W7201060J Fuel Tank

£1,611.64
£1,331.93 excl. VAT
Supersession roadoldest to newest
  1. 8W7201060JThis pageNot stocked
    Jun 2019
  2. 8W7201060NCurrent number
Current part number8W7201060NWhat the manufacturer supplies todayOrder
Availability: No longer supplied under this number

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

1 vehicle

Fuel Tank — locate Fuel Tank in the official exploded view and explore the surrounding assembly.

Parts in this assembly35
Vehicle fitment table1

Europe (1)

VehicleYearsPos.QtyPR
Audi A5 Cabrio 2.02016-2018110M0

Diagrams & fitment data powered by oemdiagrams.com

Fuel Tank is fitted on: Audi A5 Cabrio 2.0 2016-2018.
