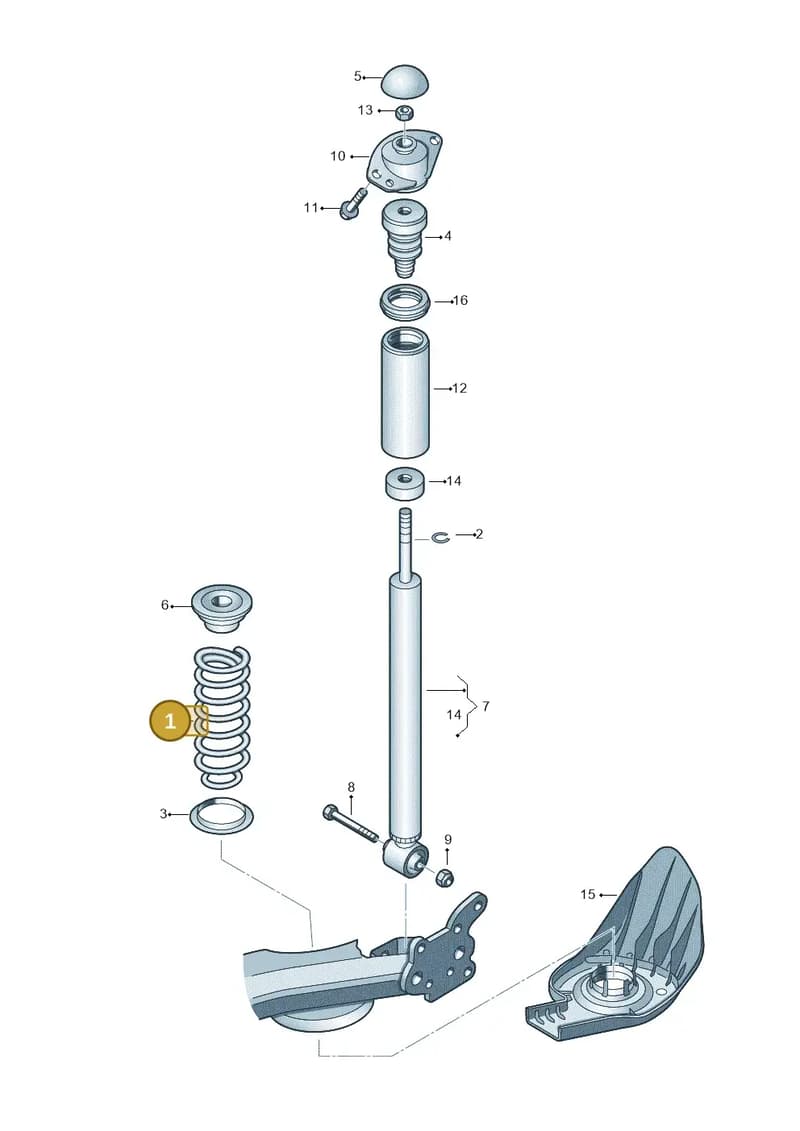

Number 1 marks the part’s position in this exploded view (SEAT Ibiza (2015-)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Volkswagen Coil Spring, part number 8Z0511115AN. Fits SEAT Ibiza (2012), Audi A1 Sportback (2014-2018). Shown as position 1 in the rear axle diagram 672511000.
Catalogue entry: COILSPRING ×2; PAINT MARK orange; PAINT MARK yellow; PAINT MARK white.
Technical details
- Category
- Suspension
- Diagram sheet
- SEAT 672511000, position 1
- ETKA group
- 5 / 11 (511)
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
Equipment codes
- 0YF
- UC0
PR codes identify the factory option a part belongs to; your vehicle’s are listed on the data sticker in the boot well or service booklet.
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

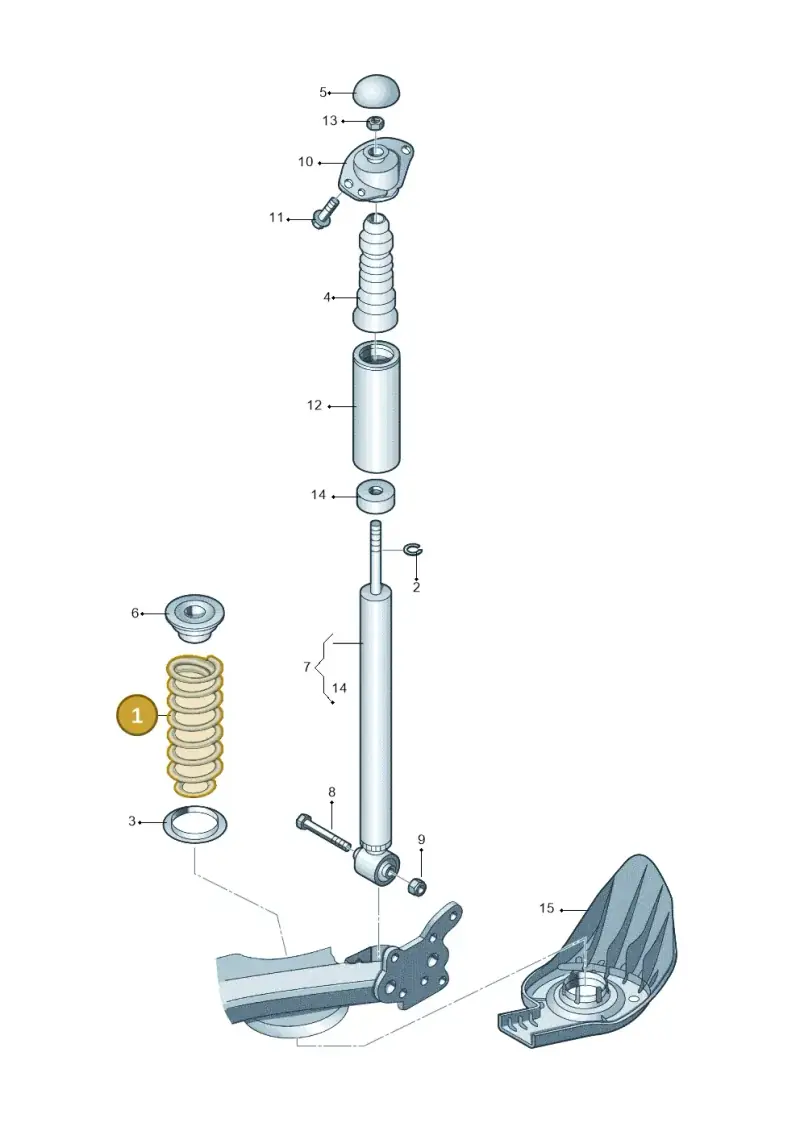

10 vehiclesCoil Spring — locate 8Z0511115AN Volkswagen Coil Spring in the official exploded view and explore the surrounding assembly.
Parts in this assembly39
- 1Part 6Q0511115AP
- 1Part 6Q0511115AQ
- 1Part 6Q0511115AT
- 1Part 6Q0511115BA
- 1Part 6Q0511115BB
- 1Part 6Q0511115BC
- 1Part 6Q0511115BE
- 1Part 6Q0511115BF
- 1Part 6Q0511115BN
- 1Part 6Q0511115BP
- 1Part 6Q0511115CK
- 1Part 6Q0511115CL
- 1Part 6Q0511115CN
- 1Part 6Q0511115K
- 1Part 8Z0511115AL
- 1Part 6Q0511115BD
- 2Circlip 8D0512097
- 3Underlay 1J0512109
- 4Buffer 6Q0512131D
- 4Buffer 6Q0512131C
- 5Part 1J0512135A
- 6Underlay 1J0512149B
- 7Shock Abs 6R0513025F
- 7Shock Abs 6R0513025G
- 7Shock Abs 6R0513025K
- 7Shock Abs 6R0513025R
- 7Shock Abs 6R0513025S
- 7Shock Abs 6R0513025E
- 8Bolt N90517304
- 9Collar Nut N10286110
- 10Bearing 1J0513353D
- 10Bearing 6R0513353B
- 11Bolt N90648402
- 12Pipe 6Q0513425A
- 12Pipe 6Q0513425B
- 12Pipe 6Q0513425
- 13Ut Hexagon Nut Self-locking Hexagon Nut N10304102
- 14Part 6Q0513269C
- 16Ret Ring 6Q0513161A
Vehicle fitment table10
Europe (10)
| Vehicle | Years | Pos. |
|---|---|---|
| Ibiza Stylance | 2015- | 1 |
| Audi A1 Sportback | 2014-2018 | 1 |
| Ibiza Reference | 2012-2012 | 1 |
| Ibiza Reference | 2011-2012 | 1 |
| Audi A1 Sportback | 2010-2015 | 1 |
| Ibiza Reference | 2008-2011 | 1 |
| IBIZA 06> | 2005- | 1 |
| CORDOBA 06> | 2005- | 1 |
| CORDOBA/SE241 | 2002-2005 | 1 |
| IBIZA | 2001-2005 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
8Z0511115AN Volkswagen Coil Spring is fitted on: Ibiza Stylance 2015-; Audi A1 Sportback 2014-2018; Ibiza Reference 2012-2012; Ibiza Reference 2011-2012; Audi A1 Sportback 2010-2015; Ibiza Reference 2008-2011; IBIZA 06> 2005-; CORDOBA 06> 2005-; CORDOBA/SE241 2002-2005; IBIZA 2001-2005.
