8Z0821249 Guide Section
- Discontinued Jun 2021
- Current number
- Current number
- 8Z0821249This pageNot stocked
Feb 2008
- Discontinued Jun 20218Z0821249ADiscontinued
Jun 2021 - Current number6L0809864ACurrent number
- Current numberN90683302Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINShipping details
- Customs (HS) code
- 87082990
Parts diagram & fitment

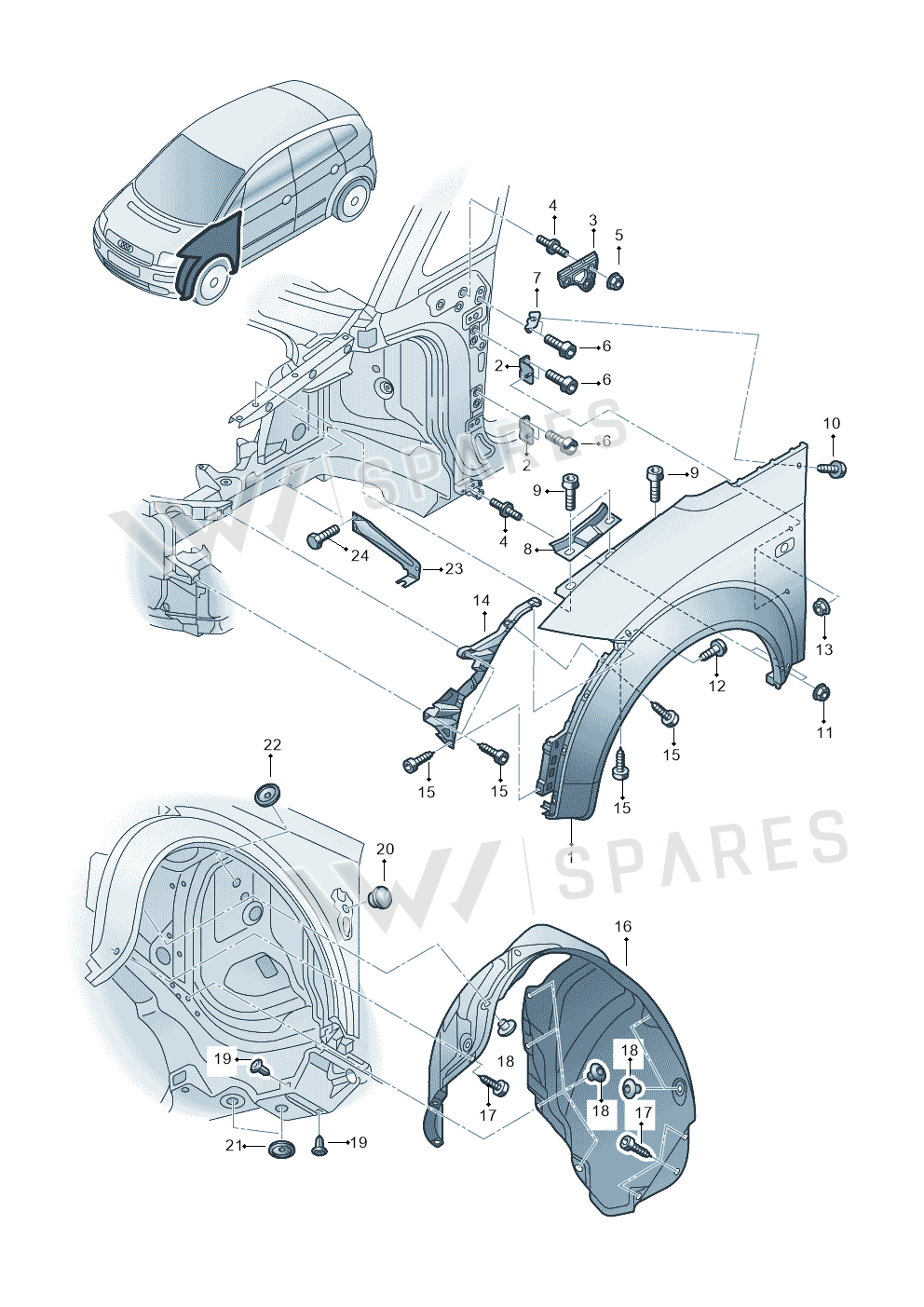

1 vehicleGuide Section — locate Guide Section in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly34
- 1WingLeft8Z0821105B
- 1WingRight8Z0821106B
- 1WingRight8Z0821106C
- 1WingLeft8Z0821105C
- 2Bracket 8Z0810679
- 3GuideRight8Z0821250
- 3GuideLeft8Z0821249A
- 3GuideRight8Z0821250A
- 4Bolt N90926902
- 5Hex Nut With Washer N90348403
- 5Bolt N90683302
- 6Bolt N90816301
- 7RetainingRight8Z0810660A
- 7RetainingLeft8Z0810659A
- 8PlateLeft8Z0821235
- 8PlateRight8Z0821236
- 12Bolt N90788401
- 13Part N01100636
- 14SupportLeft8Z0854729
- 14SupportRight8Z0854730
- 15Bolt N90775001
- 16LinerLeft8Z0821171D
- 16LinerLeft8Z0821171F
- 16LinerRight8Z0821172D
- 16LinerRight8Z0821172F
- 18Spring Rivet 4D0807300
- 19Part N90821401
- 20Bungs N10121701
- 21Bungs 8D0803583L
- 22Bungs 191971928
- 23SupportRight8Z2805458
- 23SupportLeft8Z0805457A
- 24Collar NutRightN01508213
- 24BoltLeftN10321001
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| AUDI A2 | 2000-2005 | 3 | 1 | A8S,A9G,A9P |
Diagrams & fitment data powered by oemdiagrams.com
Guide Section is fitted on: AUDI A2 2000-2005.
