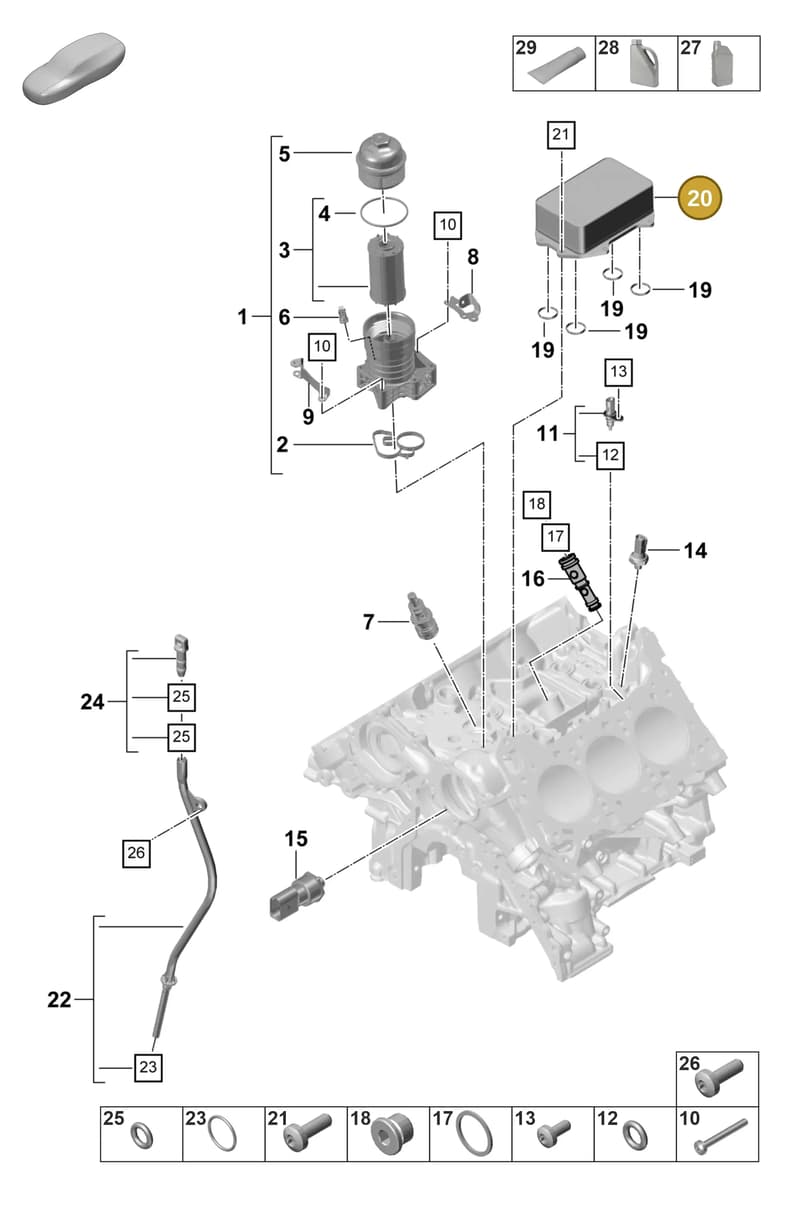

Number 20 marks the part’s position in this exploded view (Porsche Panamera (2023-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Porsche Oil Cooler, part number 9A711701510. Fits Porsche Panamera (2016-2025), Porsche Cayenne (2017-2023), Porsche Macan (2018-2022). Shown as position 20 in the engine diagram P5810421.
Catalogue entry: OIL COOLER; also use: 9A7 121 070 00 ×4; 000 043 305 10; 000 043 209 93.
Use with: 9A712107000 (×4), 00004330510, 00004320993.
Technical details
- Category
- Engine
- Diagram sheet
- Porsche p58104210, position 20
- ETKA group
- 1 / 04 (104)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Engine codes
- CSZ, CSZA, DCA, DCAB, DGP, DGPA, DGR, DGRB, DGRC
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

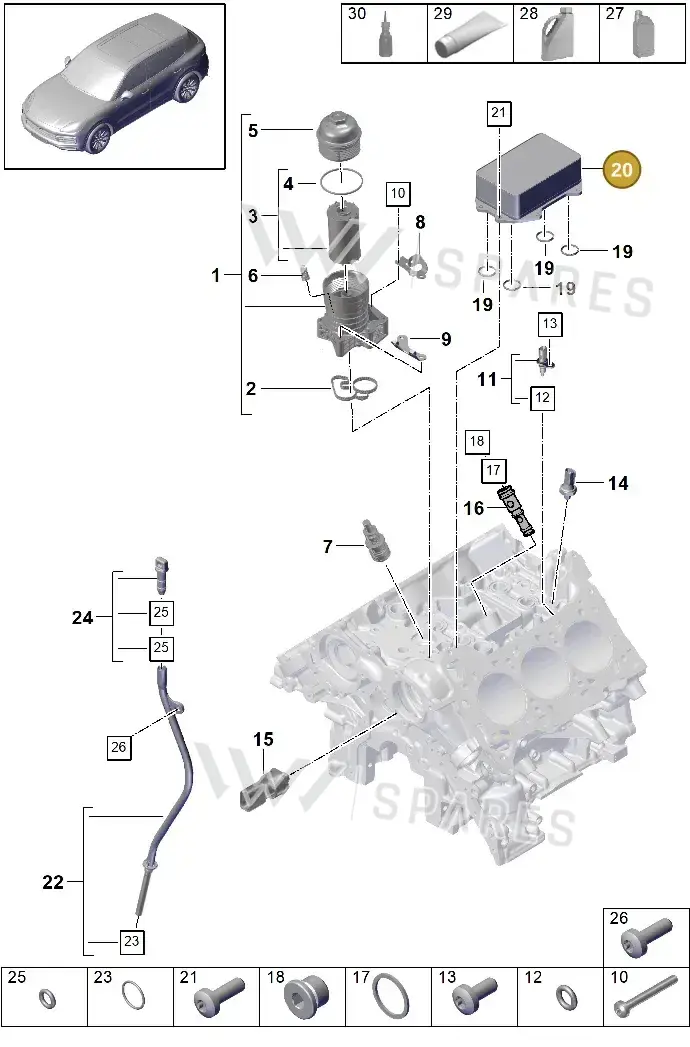

5 vehiclesOil Cooler — locate 9A711701510 Porsche Oil Cooler in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Part 9A711540100
- 1Part 9A711540105
- 1Oil Filter PAB115401
- 1Part PAC115401
- 1Part 9A711540110
- 2Seal PAB115441
- 2Seal 9A711544100
- 3Oil Filter 9A719840500
- 4Seal Ring 9A711533100
- 5Cover 9A711531100
- 6Valve 9A710317500
- 7Thermostat 9A711520100
- 7Plate 9A711927500
- 8Bracket 9A710332010
- 8Bracket 9A710332000
- 8Screw N10470703
- 9Bracket 9A713303400
- 9Sensor 9A791952510
- 10Seal Ring WHT002287C
- 11Screw N10285505
- 12Switch 9A791908110
- 13PartRight9A711524302
- 13Valve 9A711524303
- 13PartLeft9A711524301
- 13Bolt N10405604
- 15Pressure PAC906054A
- 15Pressure 9A790605407
- 16Valve 9A710320800
- 16Oil Cooler 9A711701500
- 17Seal Ring 90012311830
- 17Seal 9A710316101
- 18Screw 9A700580400
- 18Bolt N10124306
- 19Tube 9A711560902
- 19Seal 9A712107000
- 20Oil Cooler 9A711701530
- 20O Ring 95510742700
- 21Bungs 95810716810
- 21Bolt N10196103
- 22Tube 9A711560910
- 22Seal Ring 9A711575700
- 23Bolt N91126601
- 24Engine Oil V04015009H
- 24Part 00004321093
- 27Engine Oil 00004321046
- 27Engine Oil 00004330521
- 27Engine Oil 00004321092
- 28Engine Oil 00004330522
Vehicle fitment table5
Europe (5)
| Vehicle | Years | Pos. | Remark |
|---|---|---|---|
| Panamera | 2023- | 20 | |
| Panamera 4 Hybrid | 2020-2023 | 20 | |
| Macan R4 TFSI | 2018- | 20 | 1 |
| Cayenne Diesel V6 | 2017-2023 | 20 | 1 |
| Panamera 4 Hybrid | 2016-2020 | 20 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
9A711701510 Porsche Oil Cooler is fitted on: Panamera 2023-; Panamera 4 Hybrid 2020-2023; Macan R4 TFSI 2018-; Cayenne Diesel V6 2017-2023; Panamera 4 Hybrid 2016-2020.
