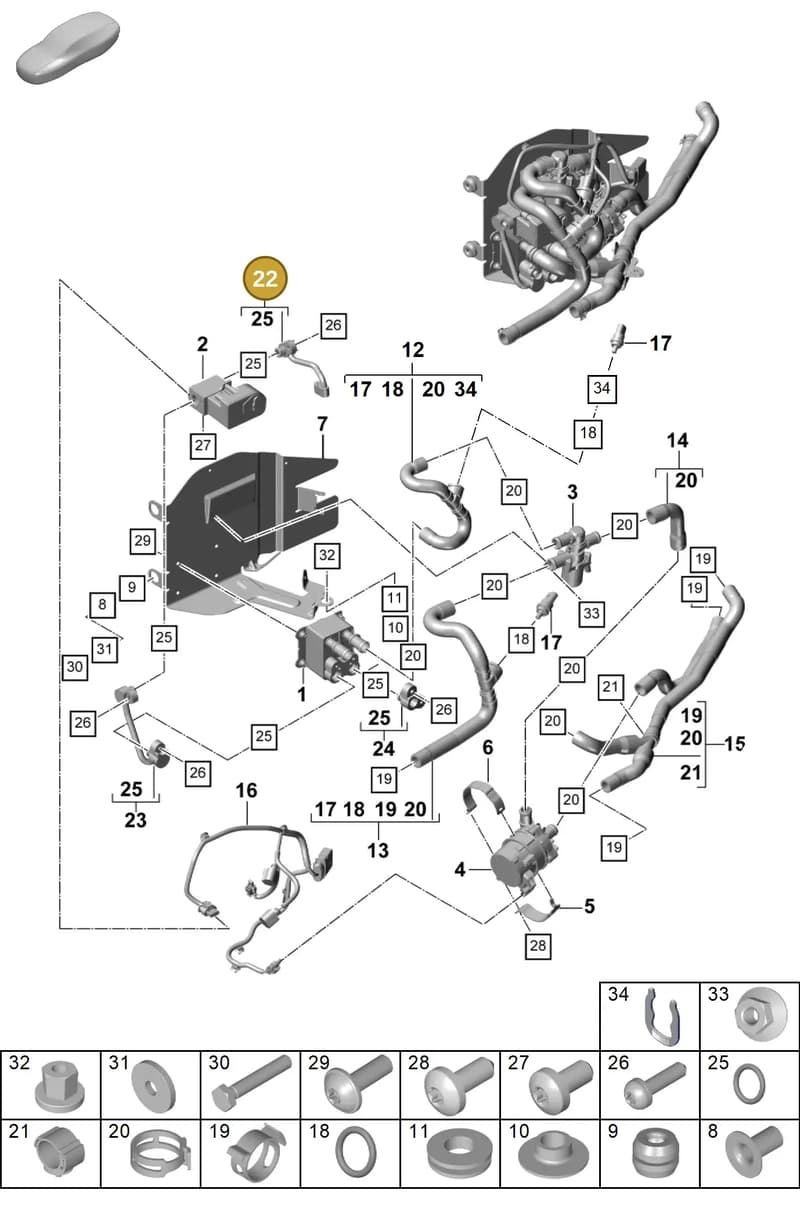

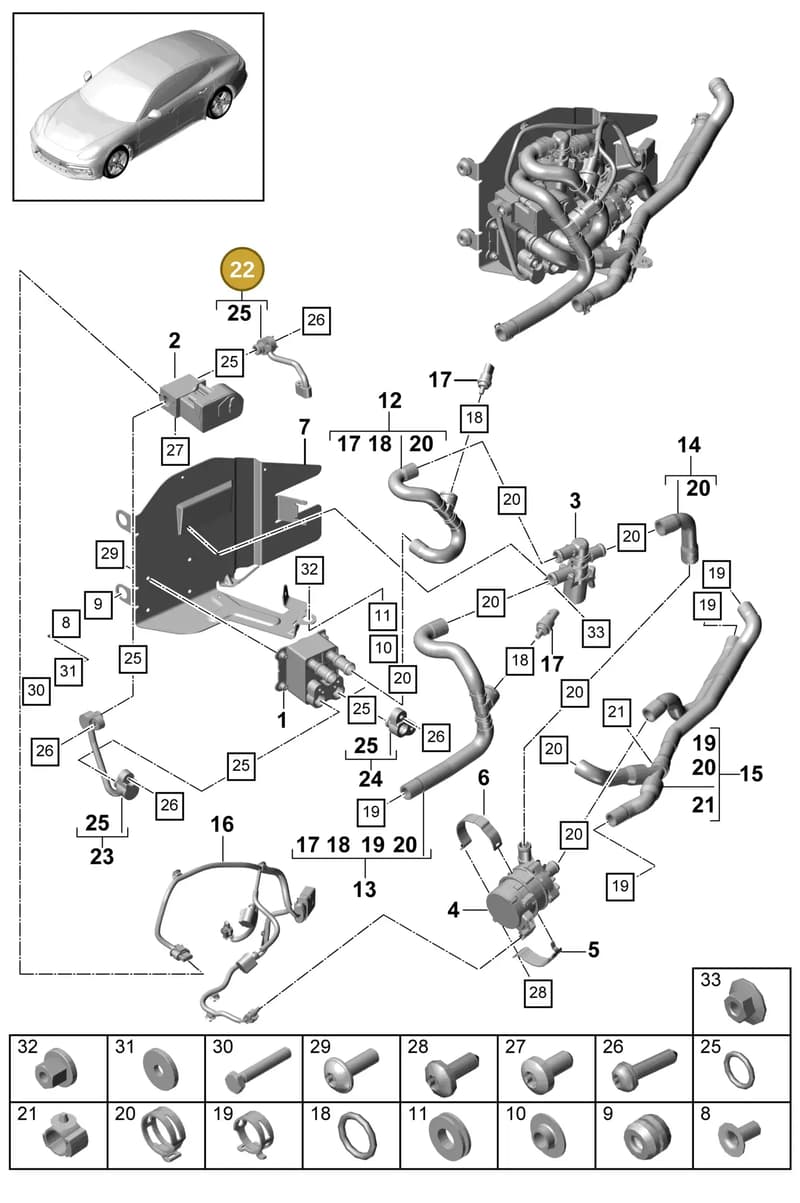

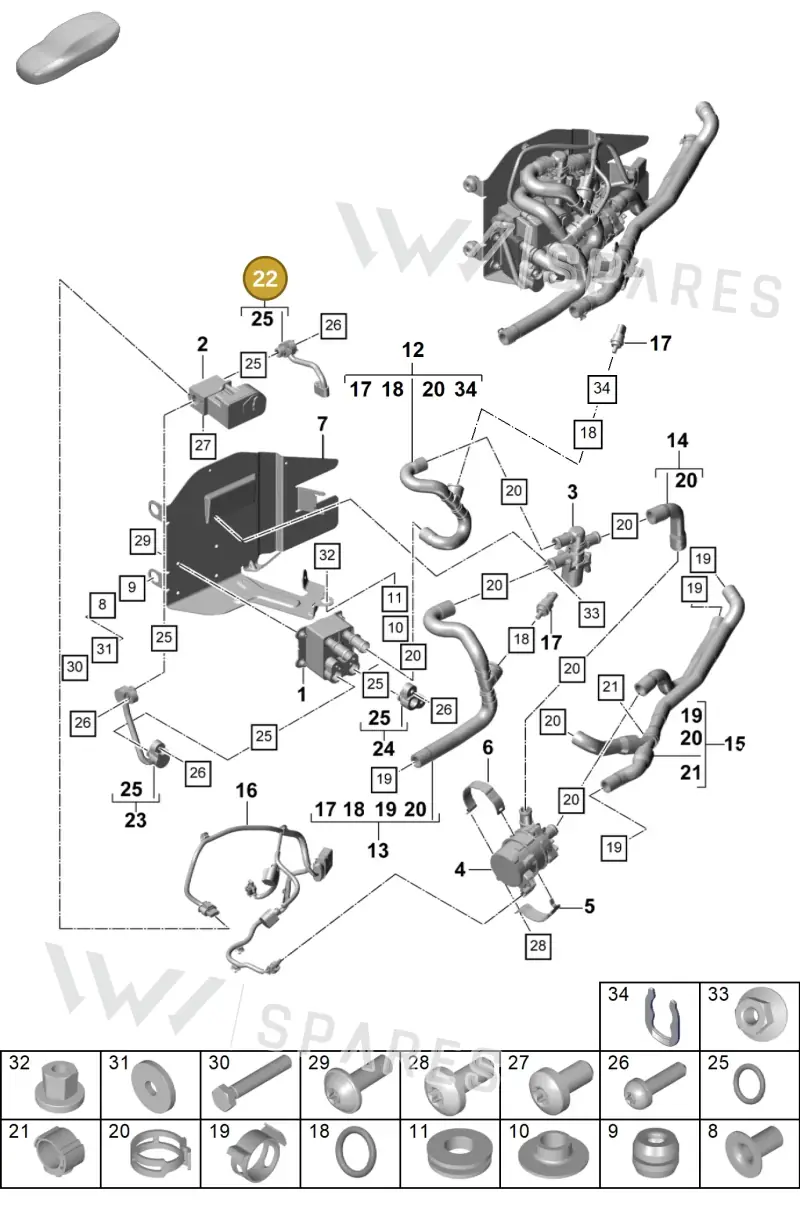

Number 22 marks the part’s position in this exploded view (Porsche Panamera (2023-2025)).
Other diagrams in the gallery may use a different number for the same part.
Product overview
Genuine OEM Porsche Refrigerant Line, part number 9A726071400. Fits Porsche Panamera (2016-2025). Shown as position 22 in the body diagram P5881530.
Catalogue entry: LINE.
Technical details
- Category
- Heating & A/C
- Diagram sheet
- Porsche p58815300, position 22
- ETKA group
- 8 / 15 (815)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
3 vehiclesRefrigerant Line — locate 9A726071400 Porsche Refrigerant Line in the official exploded view and explore the surrounding assembly.
Parts in this assembly32
- 1Heat Exch PAB816115
- 2Expans Val 9A781668200
- 3Valve 9A790645710
- 4Water Pump 9A796556710
- 5Part 9A726042000
- 6Bracket 9A726041900
- 7Bracket 9A726008900
- 8Bush 4D0614173B
- 9Buffer 4D0614177A
- 10Bush 95557212100
- 11Grommet 95557209500
- 12Hose 971820928B
- 13Hose 971820452C
- 14Hose 9A782093000
- 15Hose 9A782045000
- 16Cable Set 971971033
- 17Sensor 95510612501
- 18Seal Ring N90316801
- 19Clamp 99951265609
- 20Clamp 99951265809
- 21Bracket 99950779340
- 23Line 9A726033500
- 24Line 9A726075200
- 25O Ring 95557374902
- 26Bolt N10347204
- 27Bolt N10335206
- 28Bolt N91096701
- 29Bolt N10714801
- 30Bolt N0102217
- 31Washer N90543602
- 32Part N90495301
- 33Part N91189302
Vehicle fitment table3
Europe (3)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Panamera | 2023- | 22 | 1 |
| Panamera 4 Hybrid | 2020-2023 | 22 | 1 |
| Panamera 4 Hybrid | 2016-2020 | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
9A726071400 Porsche Refrigerant Line is fitted on: Panamera 2023-; Panamera 4 Hybrid 2020-2023; Panamera 4 Hybrid 2016-2020.
