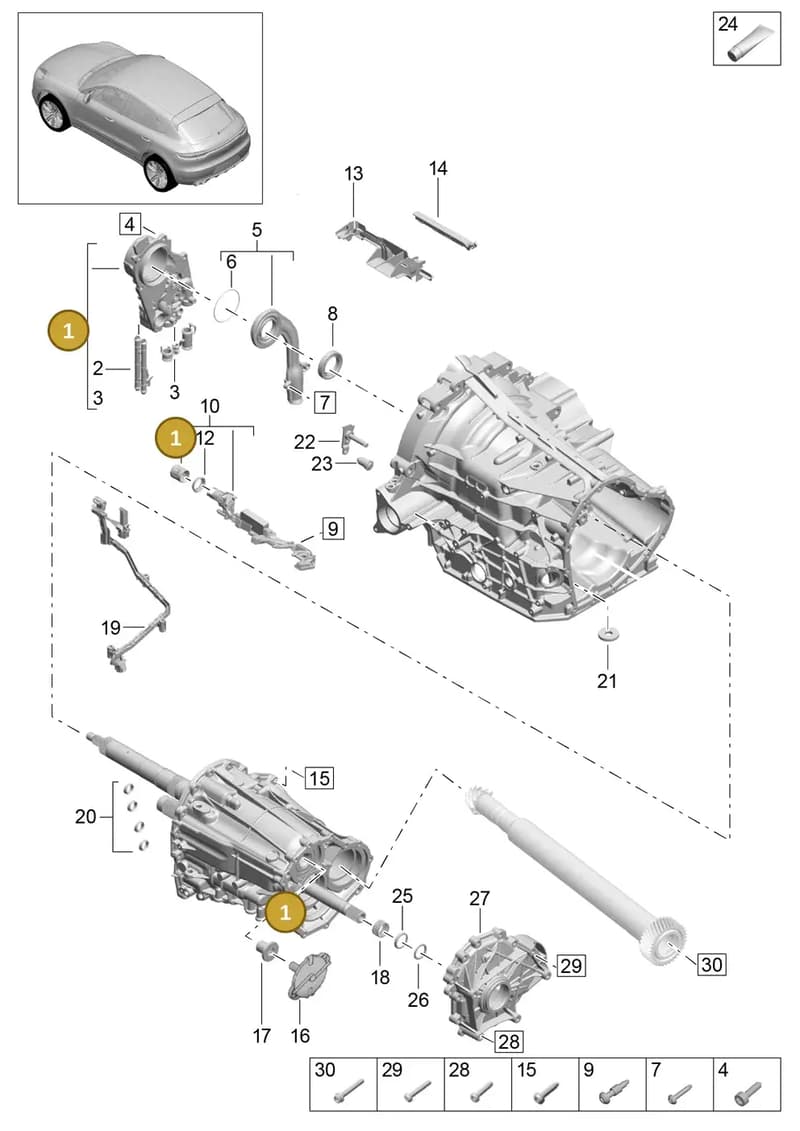

Number 1 marks the part’s position in the exploded view (Porsche Macan (2018-2022)).
Product overview
Genuine OEM Porsche Oil Pump, part number 9A731510501. Fits Porsche Macan (2018-2022). Shown as position 1 in the gearbox diagram P5230211.
Catalogue entry: OIL PUMP; GEARBOX.
Technical details
- Category
- Transmission & Drivetrain
- Diagram sheet
- Porsche p52302110, position 1
- ETKA group
- 3 / 02 (302)
- Manufacturer
- Porsche
- Product Type
- Genuine new auto parts
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment
1 vehicleOil Pump — locate 9A731510501 Porsche Oil Pump in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 2Part 0B5315100
- 3Part 0B5315105TA
- 4Screw N91076601
- 5Pump 9A730151500
- 6Seal Ring PAF004741
- 6Seal Ring 9A700474100
- 7Bolt N10637302
- 8Seal Washer 9A730122700
- 9Bolt N91196301
- 10Sensor 9A792732100
- 11Ring 9A792740700
- 12Seal 9A792737700
- 13Drip Tray 9A730131100
- 14Drip Tray 9A730127900
- 15Screw 9A700245900
- 16Oil Guide 9A730113400
- 17Screw 9A700767400
- 18Bearing 9A731152500
- 19Cable Set 9A732139100
- 20Seal 9A7311944
- 20Seal Washer 9A731194401
- 20Seal Washer 9A731194400
- 21Magnet 9A730114300
- 22Part 9A732119100
- 23Part 9A732122200
- 24Cleaner 00004321045
- 24Sealant 00004330033
- 25Seal Washer 9A731119000
- 26Seal Washer 9A731118900
- 27Cover 0FD301212B
- 28Screw 9A700207900
- 29Screw 9A700195800
- 30Bolt 9A700195500
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. |
|---|---|---|
| Macan R4 TFSI | 2018- | 1 |
Diagrams & fitment data powered by oemdiagrams.com
9A731510501 Porsche Oil Pump is fitted on: Macan R4 TFSI 2018-.
