Product overview
Genuine OEM Audi Brake Pipe, part number 9J1614741C. This essential component carries hydraulic fluid within the braking system, ensuring proper pressure transmission. It is positioned within the main brake line assembly, connecting to the ABS module. Choosing a genuine OEM brake pipe ensures precise routing geometry, correct material composition for high pressure resistance, and superior corrosion protection for long-term safety and reliability.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87083091
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 82.5 × 46 × 29.5 cm
- Shipping weight
- 0.27 kg
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist

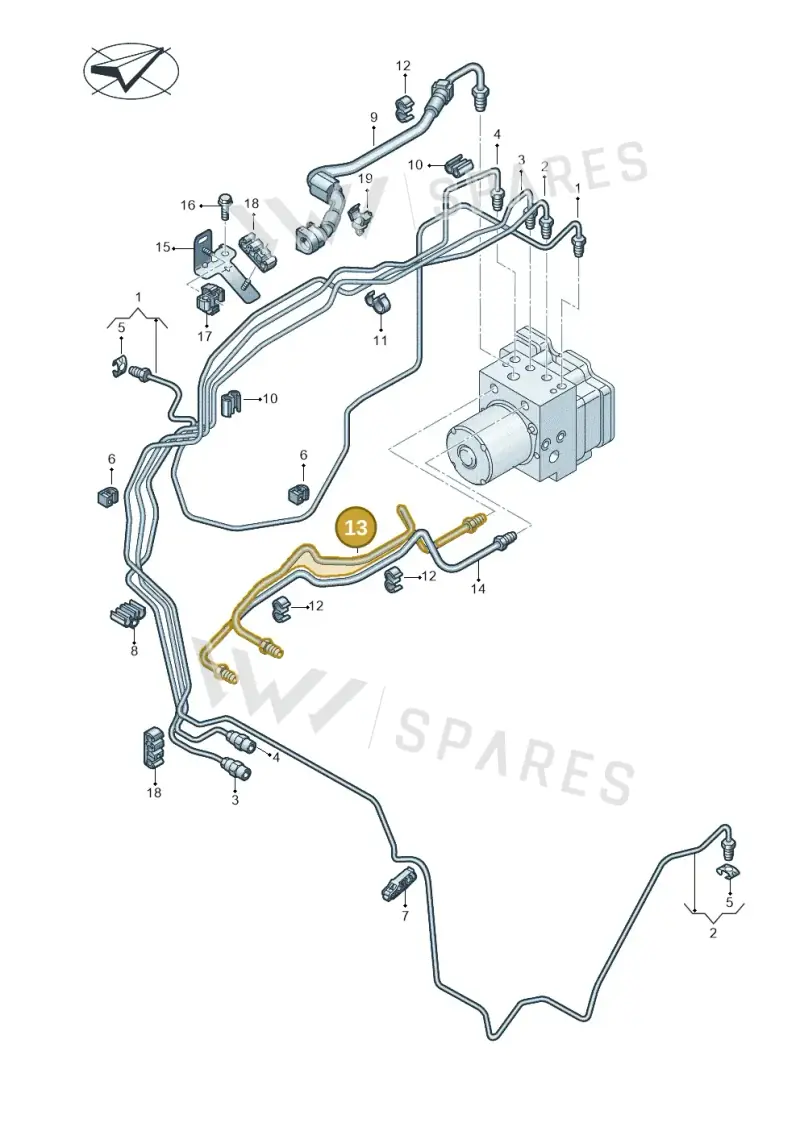

Parts diagram & fitment
1 vehicleBrake Pipe — locate 9J1614741C Audi Brake Pipe | Genuine OEM in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer (since 2024-02-01); contact us to check current availability.
Parts in this assembly48
- 1Brake HoseLeft9J1611707C
- 1Brake HoseLeft9J1611707F
- 1Brake HoseLeft9J1611707H
- 1PartLeft9J1611707K
- 1PartLeft9J1611707L
- 1Brake HoseLeft9J1611707M
- 1Brake HoseRight9J1611708B
- 1Brake HoseRight9J1611708C
- 1Brake HoseRight9J1611708F
- 1Brake HoseRight9J1611708H
- 1PartRight9J1611708K
- 1PartRight9J1611708L
- 1Brake HoseRight9J1611708M
- 1Line 9J1614717B
- 1Line 9J1614717C
- 1Line 9J1614717D
- 1Brake HoseLeft9J1611707B
- 1Line 9J1614717
- 2RetainerRight9J1611846B
- 2RetainerRight9J1611846C
- 2Line 9J1614721D
- 2Line 9J1614721E
- 2Line 9J1614721F
- 2Line 9J1614721G
- 2RetainerLeft9J1611845B
- 2RetainerLeft9J1611845C
- 2Line 9J1614721B
- 3Line 9J1614723C
- 3Line 9J1614723D
- 3Line 9J1614723E
- 3Line 9J1614723A
- 3Bolt N10653203
- 4Line 9J1614725C
- 4Line 9J1614725D
- 4Line 9J1614725E
- 4Line 9J1614725A
- 4Collar Nut N01508210
- 5RetainerRight9J1611846A
- 5Spring 8K0611715
- 5RetainerLeft9J1611845A
- 6Retainer 8W0611797C
- 6Spring 971611715
- 7Bracket 4G0611797
- 8Bracket 6Q0611797K
- 9Brake Pipe 9J1614724C
- 9Brake Pipe 9J1614724D
- 9Brake Pipe 9J1614726B
- 9Brake Pipe 9J1614726C
Vehicle fitment table1
Europe (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Audi RS e-tron GT | 2020-2020 | 13 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
9J1614741C Audi Brake Pipe | Genuine OEM is fitted on: Audi RS e-tron GT 2020-2020.
