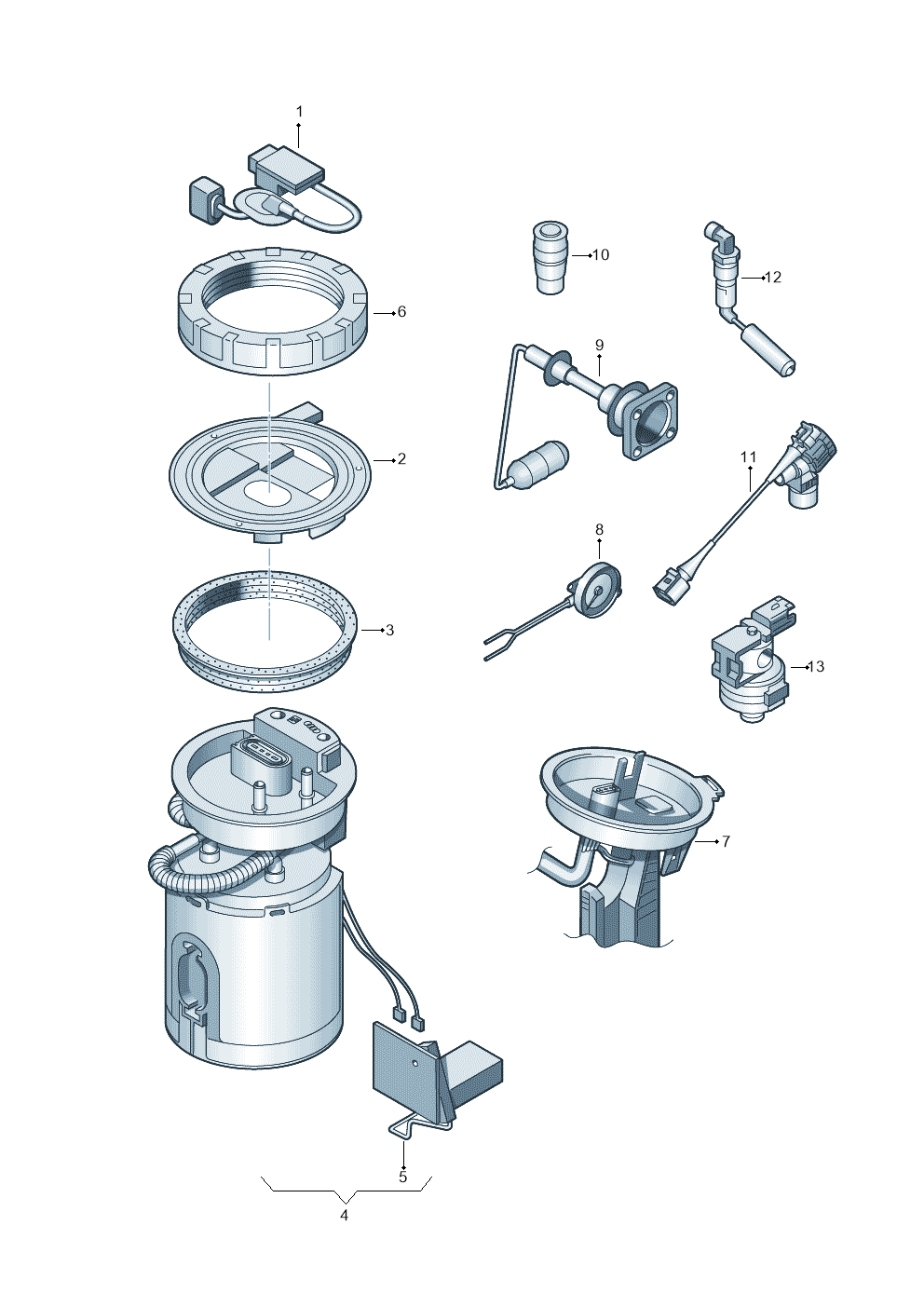

Sender For Fuel Gauge exploded parts diagram — Altea XL Reference · 2010-2013, position 9 — Altea XL Reference · 2010-2013 · position 9Full diagram ↓

JNV201731

JNV201731 Sender For Fuel Gauge

Name: JNV201731 Sender For Fuel Gauge
Brand: SEAT
SKU: JNV201731
Price: 117.93 GBP
Availability: Discontinued

£117.93

£97.46 excl. VAT

Supersession roadoldest to newest

JNV919463
Not stocked Dec 2009
JNV201731
Discontinued Apr 2025
You are here

JNV919463Not stocked
Dec 2009
JNV201731This pageDiscontinued
Apr 2025

Availability: Discontinued — no longer orderable

Quantity:

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

5 vehicles

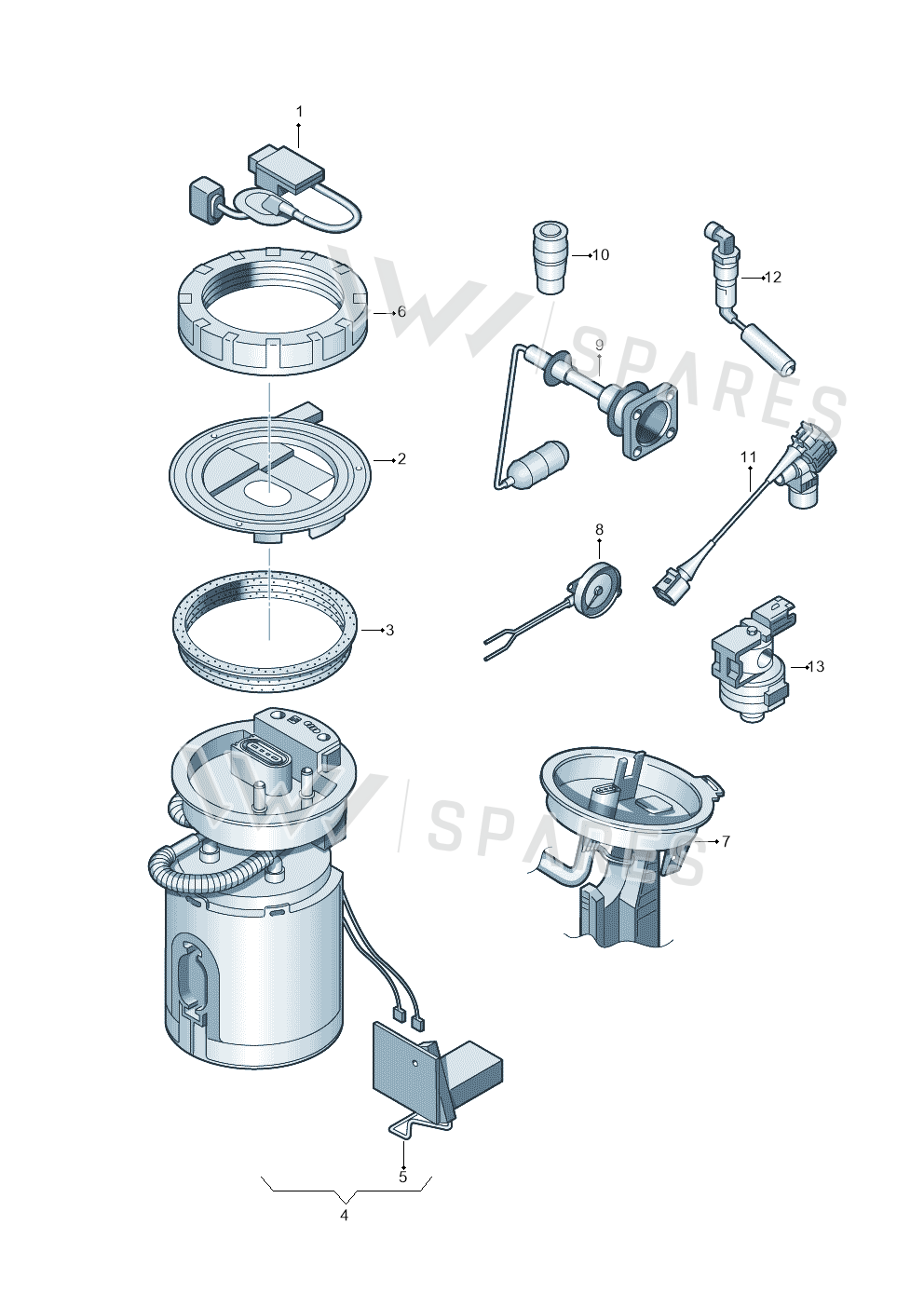

Sender For Fuel Gauge — locate Sender For Fuel Gauge in the official exploded view and explore the surrounding assembly.

Parts in this assembly16

Vehicle fitment table5

Europe (5)

Vehicle	Years	Pos.	Qty	Remark	PR
Altea XL Reference	2010-2013	9	1	D
Leon Stylance	2010-2012	9	1	D
golf 2.0	2008-2011	9	3H
ALTEA 07>	2006-	9	1	CHGA
LEON 06>	2005-	9	1	CHGA	0F2
