N01024213 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

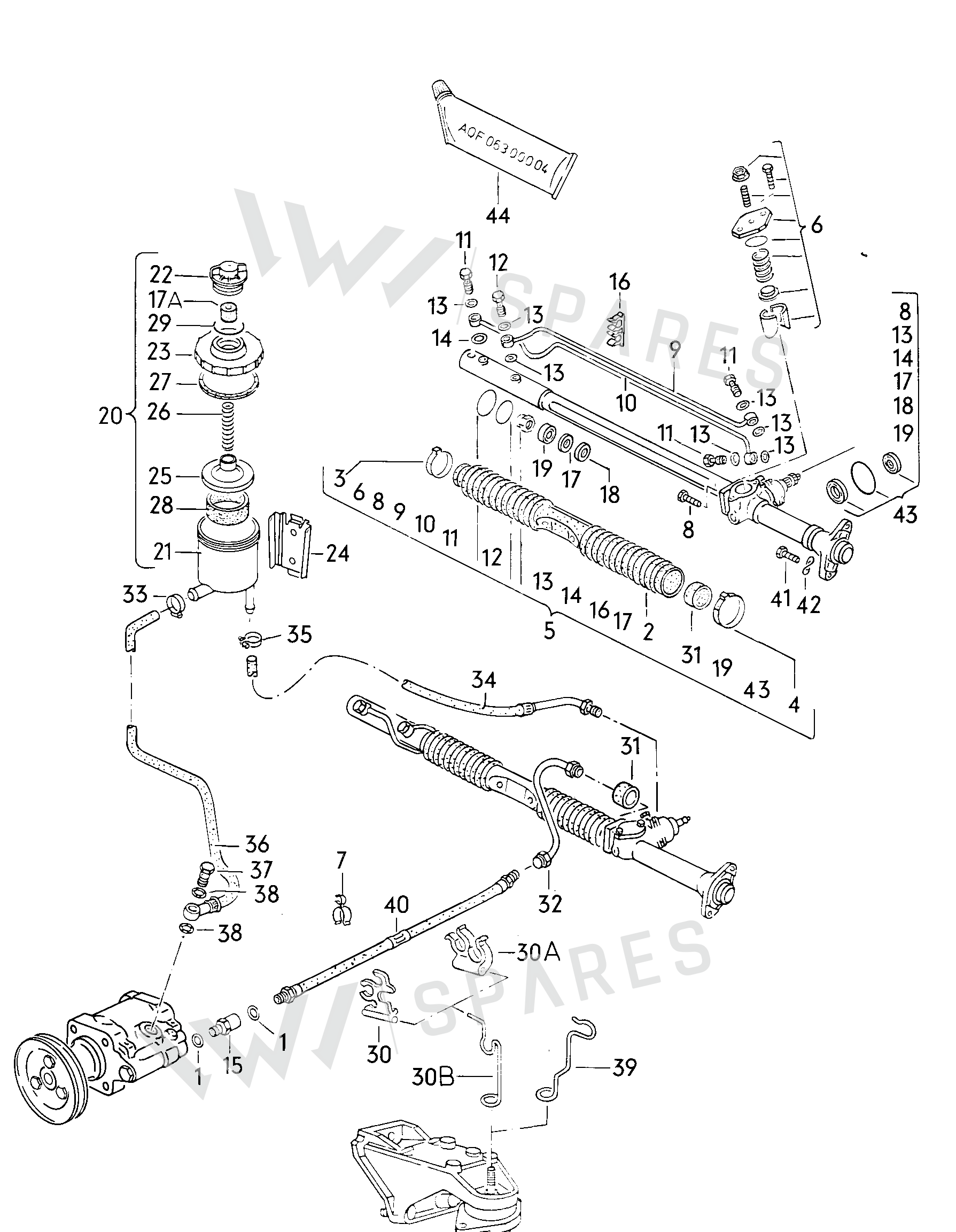

6 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 1Seal Ring N0138444
- 2Cover 431419831
- 3Clip N0380531
- 4Clip N0380601
- 7Cable Tie 443957818C
- 11Screw 443422269
- 13Seal Ring 431422271
- 14Seal Ring 431422277
- 16Bracket 063133687A
- 17ABungs 431422360A
- 20Container 431422371B
- 20Container 811422371A
- 21Housing 431422373B
- 22Cover 701422375
- 23Cover 701422377
- 25Cover 431422379
- 26Press Spring 431422381A
- 27Seal Ring 431422383A
- 28Oil Filter 431422385A
- 29Seal Ring N90176301
- 30ABracket 431422475A
- 32Pipe 431422877A
- 33Clamp N90561801
- 34Hose 432422891
- 35Clamp N10258201
- 36Hose 811422887K
- 37Screw N0210621
- 38Seal Ring N0138326
- 40Hose 811422893A
- 40Hose 431422893
- 41Bolt N01024222
- 42Washer N0122283
- 44Grease AOF06300004
Vehicle fitment table6
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi 5000 | 1981-1982 | 41 | 4 | |
| Audi 4000 | 1979-1981 | 7 | 2 | |
| Audi Fox | 1972-1976 | 48 | 1 | 80,L |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| SANTANA 2000 "CN"96>04 | 1996-2004 | 22 | 2 | |
| CADDY-PICKUP "ZA" 96> | 1995- | 11 | 1 | |
| SANTANA/VARIANT "CN"86> | 1985- | 22, 14 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Audi 5000 1981-1982; Audi 4000 1979-1981; Audi Fox 1972-1976; SANTANA 2000 "CN"96>04 1996-2004; CADDY-PICKUP "ZA" 96> 1995-; SANTANA/VARIANT "CN"86> 1985-.
