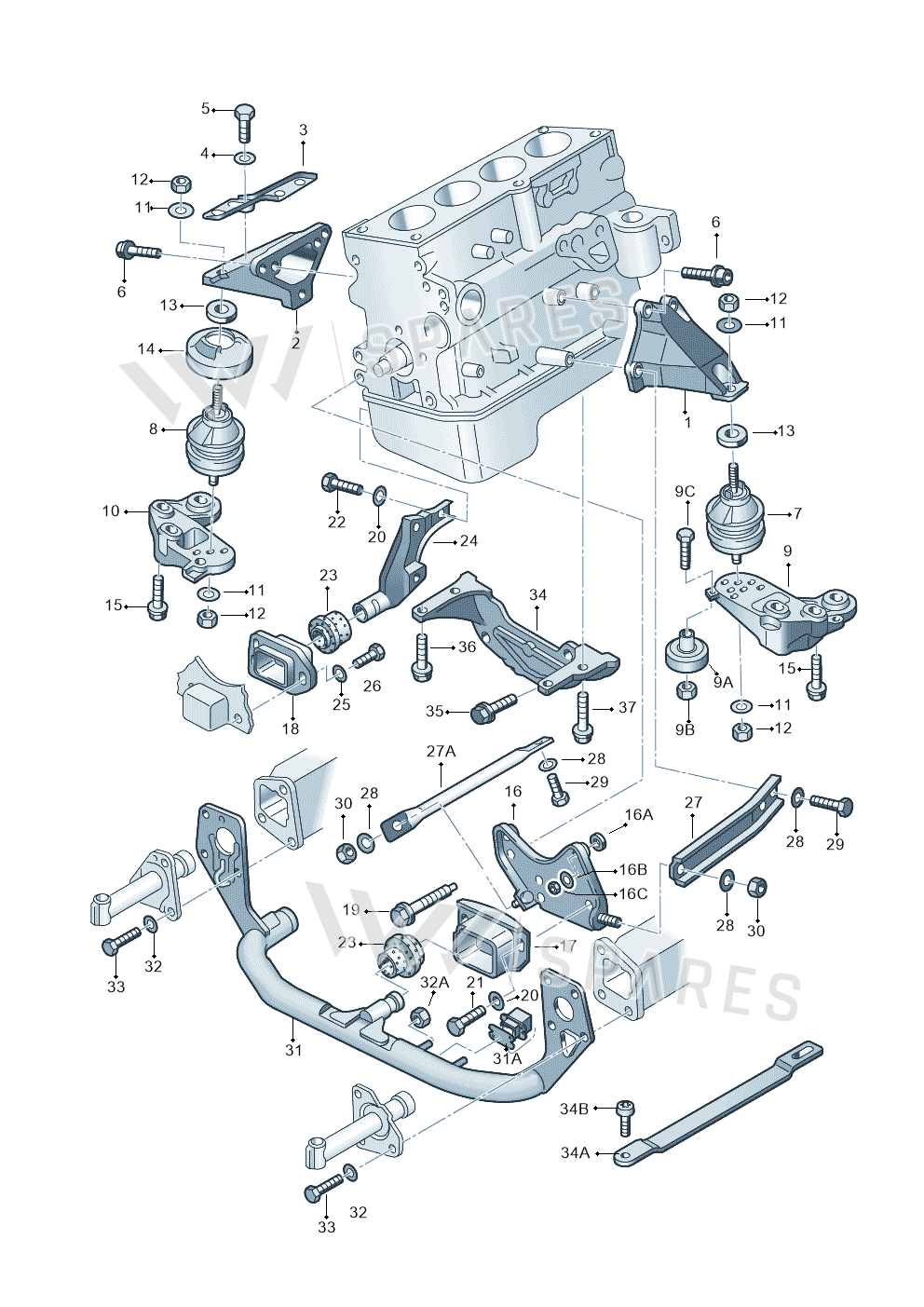

Hexagon Bolt exploded parts diagram — 3B0 platform, position 21 — 3B0 platform · position 21Full diagram ↓

N0102704

N0102704 Hexagon Bolt

Name: N0102704 Hexagon Bolt
Brand: Volkswagen
SKU: N0102704
Price: 0.33 GBP
Availability: Discontinued

£0.33

£0.27 excl. VAT

Supersession roadoldest to newest

N0102704
Not stocked Feb 1991
You are here
N0102706
Discontinued Jun 2022

N0102704This pageNot stocked
Feb 1991
N0102706Discontinued
Jun 2022

Availability: No longer supplied under this number

Quantity:

Special order item. Delivery time may vary.

About This Part

Superseded part number

This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

1 vehicle

Hexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly16

Vehicle fitment table1

Platform / generic diagrams (1)

Vehicle	Years	Pos.
3B0 platform		21
