N0102802 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

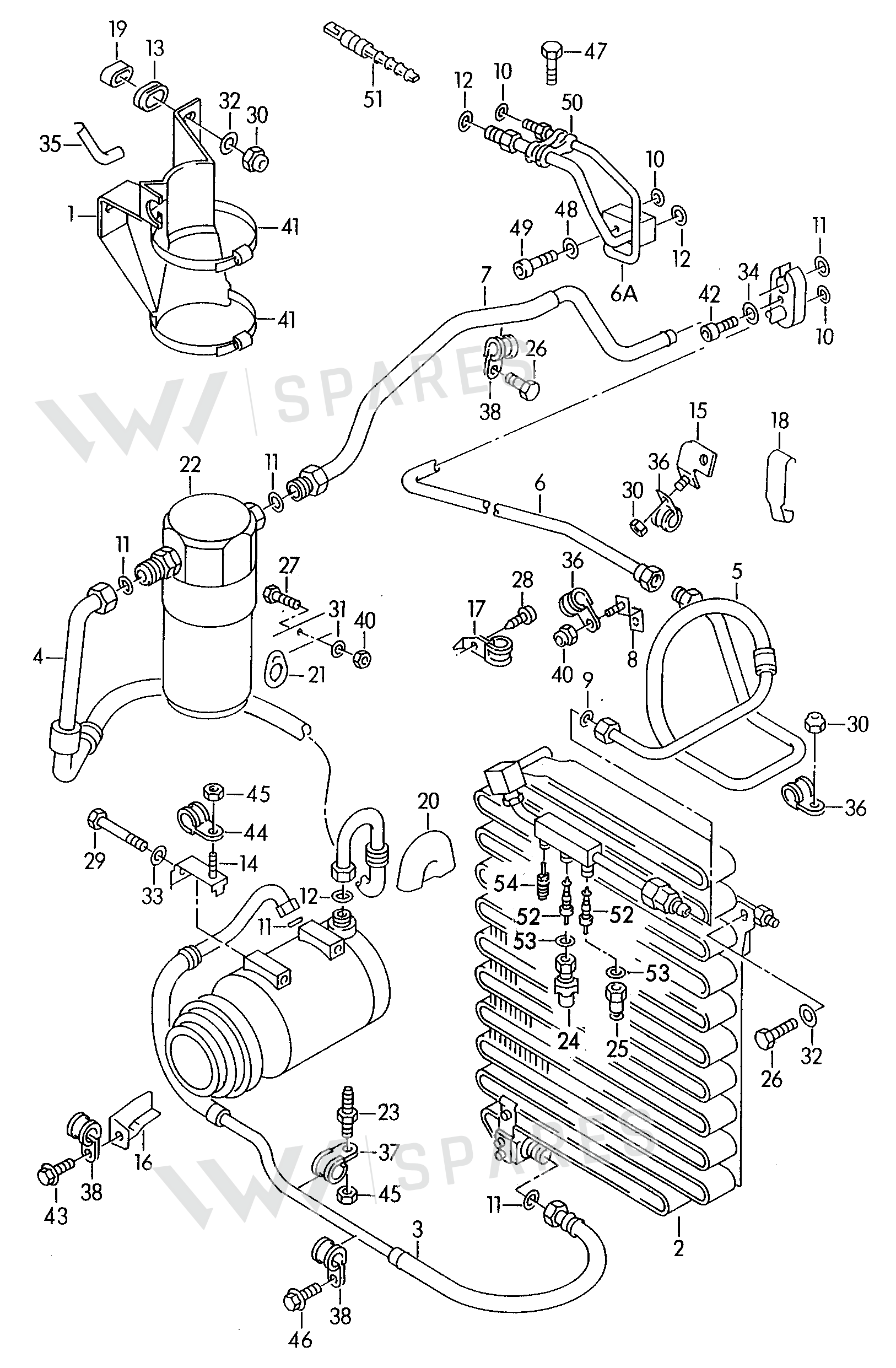

39 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly48
- 1Bracket 895260759A
- 2Capacitor 8A0260403AC
- 3Hose 8A0260701AF
- 4Hose 8A0260707AF
- 5Hose 8A2260712AD
- 5Pipe 8A1260709AB
- 6Pipe 8A1260709AL
- 6Pipe 8A2260709AG
- 7Hose 8A0260740AE
- 7Hose 8A2260740AD
- 8Bracket 8A2260784
- 8Bracket 8A0260759AL
- 9Seal Ring 7H0820896
- 10Seal Ring 8E0260749
- 11Seal Ring 8E0260749D
- 12Seal Ring 7H0820749
- 13Grommet 8A0260753
- 14Bracket 8A0260759AH
- 15Bracket 893260759B
- 16Bracket 8A0260759E
- 19Bush 8A0260767
- 20Part 8A0260774A
- 21Ret Ring 191820140
- 22Drier 8A0820193AB
- 23Stud 855820819
- 24Switch 8A0959482AA
- 25Switch 8A0959482AB
- 26Bolt N01021612
- 27Bolt N01022013
- 28Bolt N0102613
- 29Bolt N0103914
- 30Part N01100636
- 31Washer N01152423
- 33Washer N01152527
- 34Washer N0116552
- 35Part N0203011
- 36Clamp N0206201
- 37Clamp N0206901
- 38Clamp N0206402
- 40Ut Hexagon Nut Self-locking Hexagon Nut N0230026
- 41Clamp N0245083
- 42Screw N0447051
- 43Screw N0903151
- 44Clamp N10160002
- 45Collar Nut N90183802
- 46Bolt N90280901
- 48Washer N0115461
- 49Bolt N10286203
Vehicle fitment table39
Europe (36)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi Coupe quattro/3 96 | 1995-1995 | 47 | 1 | |
| AUDI 80 Av.Rs2 qu. | 1994-1995 | 47, 8 | 1 | |
| Audi 90 qu. 95 | 1994-1995 | 47 | 1 | |
| Audi Coupe/3 | 1994-1995 | 8 | 4 | |
| Audi Cabrio. | 1993-1998 | 72, 47 | 1 | |
| Audi 90 | 1993-1995 | 47, 8 | 1 | |
| Audi 90 qu. | 1992-1994 | 47 | 1 | |
| Audi 90 93 | 1992-1993 | 47 | 1 | |
| Audi V8 | 1989-1993 | 5, 2 | 2 | |
| Audi 80/90 | 1989-1991 | 72, 32 | 1 | |
| Audi Coupe qu. | 1989-1991 | 72, 47 | 1 | |
| Audi 100/Wagon | 1989-1990 | 2, 9 | 4 | |
| AUDI COUPE/3 | 1988-1994 | 32, 72 | 2 | |
| Audi 200 Turbo | 1988-1990 | 2, 9 | 4 | |
| Audi 100/Wagon qu. | 1988-1990 | 2, 9 | 4 | |
| Audi 200T/Wagon qu. | 1988-1990 | 2, 9 | 4 | |
| Audi 100/Wagon 89 | 1988-1989 | 2, 9 | 4 | |
| Audi 80/90 qu. | 1987-1991 | 34, 32 | 1 | |
| Audi 80/90 | 1987-1989 | 72, 32 | 1 | |
| Audi 5000 S/Wagon qu. | 1987-1988 | 16 | 8 | |
| Audi 5000 S/Wagon | 1986-1988 | 16 | 8 | |
| Audi 5000 Turbo | 1984-1988 | 16 | 8 | |
| Audi 5000/Wagon qu. | 1984-1988 | 16 | 8 | |
| Audi 5000 S/Wagon | 1984-1986 | 16 | 8 | |
| Scirocco | 1983-1989 | 8 | 4 | |
| Audi 5000 S/Wagon 84 | 1983-1984 | 16 | 8 | |
| Jetta | 1981-1984 | 8 | 4 | |
| Audi 5000 | 1981-1982 | 16 | 8 | |
| Scirocco | 1980-1981 | 8 | 4 | |
| Audi 5000 Turbo | 1979-1982 | 16 | 8 | |
| Audi 5000/Wagon | 1979-1981 | 16 | 8 | |
| Scirocco | 1978-1980 | 8 | 4 | |
| Scirocco | 1976-1978 | 8 | 4 | |
| Scirocco | 1974-1976 | 8 | 4 | |
| Audi Fox | 1972-1976 | 47 | 1 | |
| ILTIS | 28 | 1 | M54 |
Other markets (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| AUDI 200 CHINA | 1995-1999 | 2, 9 | 4 | |
| AUDI 100 (CHINA) | 1988-1995 | 2, 9 | 4 | |
| Rabbit Conv./Cabrio | 1983-1993 | 8 | 4 |
