N0103473 Hexagon Bolt
- N0103473This pageNot stocked
Jan 1993 - N0102213Discontinued
Apr 2025
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

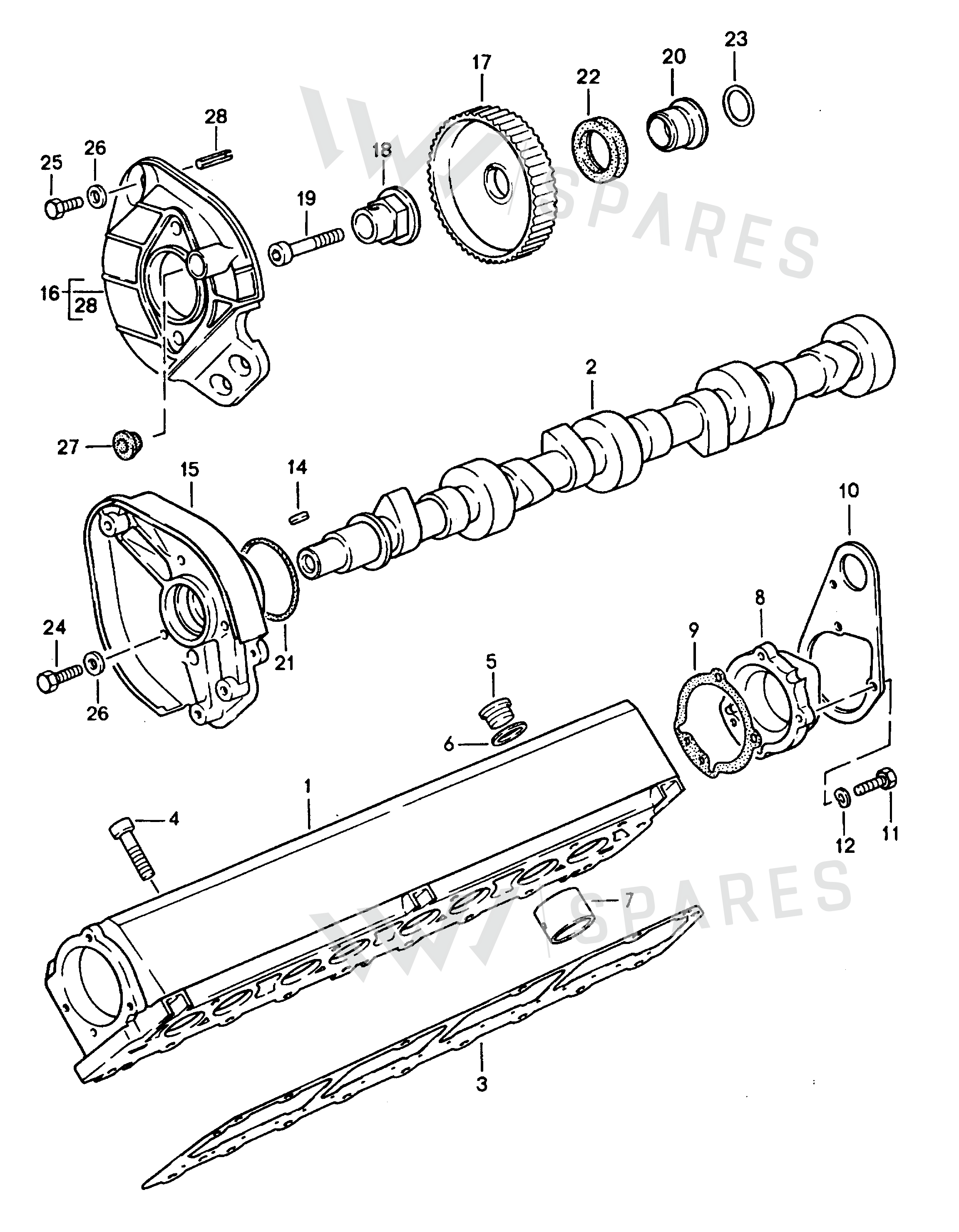

13 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly36
- 1Housing 94410525007
- 2Camshaft 94410515505
- 2Camshaft 94410515510
- 3Seal 94410519903
- 4Screw 90006721401
- 4Part 90006721402
- 5Screw 90021900930
- 6Seal Ring 90012314030
- 7Tappets 92810531106
- 7Tappets 92810531108
- 8Cover 92810515304
- 9Seal 92810518902
- 10Part 94410141302
- 11Part 90007501602
- 11Bolt 90007501603
- 12Washer N0122265
- 14Part 90011704500
- 15Bearing 94410511903
- 16Console 94410502901
- 17Gear 94410554503
- 17Gear 94410554513
- 18Follower 94410514200
- 19Screw 99951002208
- 20Bush 92810513904
- 20Bush 92810513905
- 21Seal Ring 99970160240
- 22Seal 99911334940
- 23Seal 94410532100
- 24Bolt N0102213
- 25Part 90007401502
- 25Bolt 90007401503
- 26Washer N01152427
- 26Part N0115247
- 27Bungs 94410513100
- 28Part 99909510301
- 29Gask Set PCG10090150
Vehicle fitment table13
Europe (12)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Coupe | 1988-1991 | 24 | |
| GOLF,JETTA (MEX) | 1987-1992 | 48 | 5 |
| Audi 80/90 | 1987-1989 | 47, 43, 68, 70 | 5 |
| S Coupe | 1985-1988 | 24 | |
| Audi 5000 Turbo | 1984-1988 | 39 | 5 |
| 944 Coupe | 1984-1988 | 24 | |
| Audi 4000 S | 1984-1987 | 45, 70 | 5 |
| Audi 5000 S/Wagon 84 | 1983-1984 | 70 | 5 |
| 944 Coupe | 1981-1985 | 24 | |
| Audi 5000 | 1981-1982 | 39, 70 | 5 |
| 924 S | 1979-1985 | 7 | |
| Audi Fox | 1972-1976 | 22 | 5 |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| 477 platform | 7 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Coupe 1988-1991; GOLF,JETTA (MEX) 1987-1992; Audi 80/90 1987-1989; S Coupe 1985-1988; Audi 5000 Turbo 1984-1988; 944 Coupe 1984-1988; Audi 4000 S 1984-1987; Audi 5000 S/Wagon 84 1983-1984; 944 Coupe 1981-1985; Audi 5000 1981-1982; 924 S 1979-1985; Audi Fox 1972-1976; 477 platform.
