N0103776 Hexagon Bolt
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

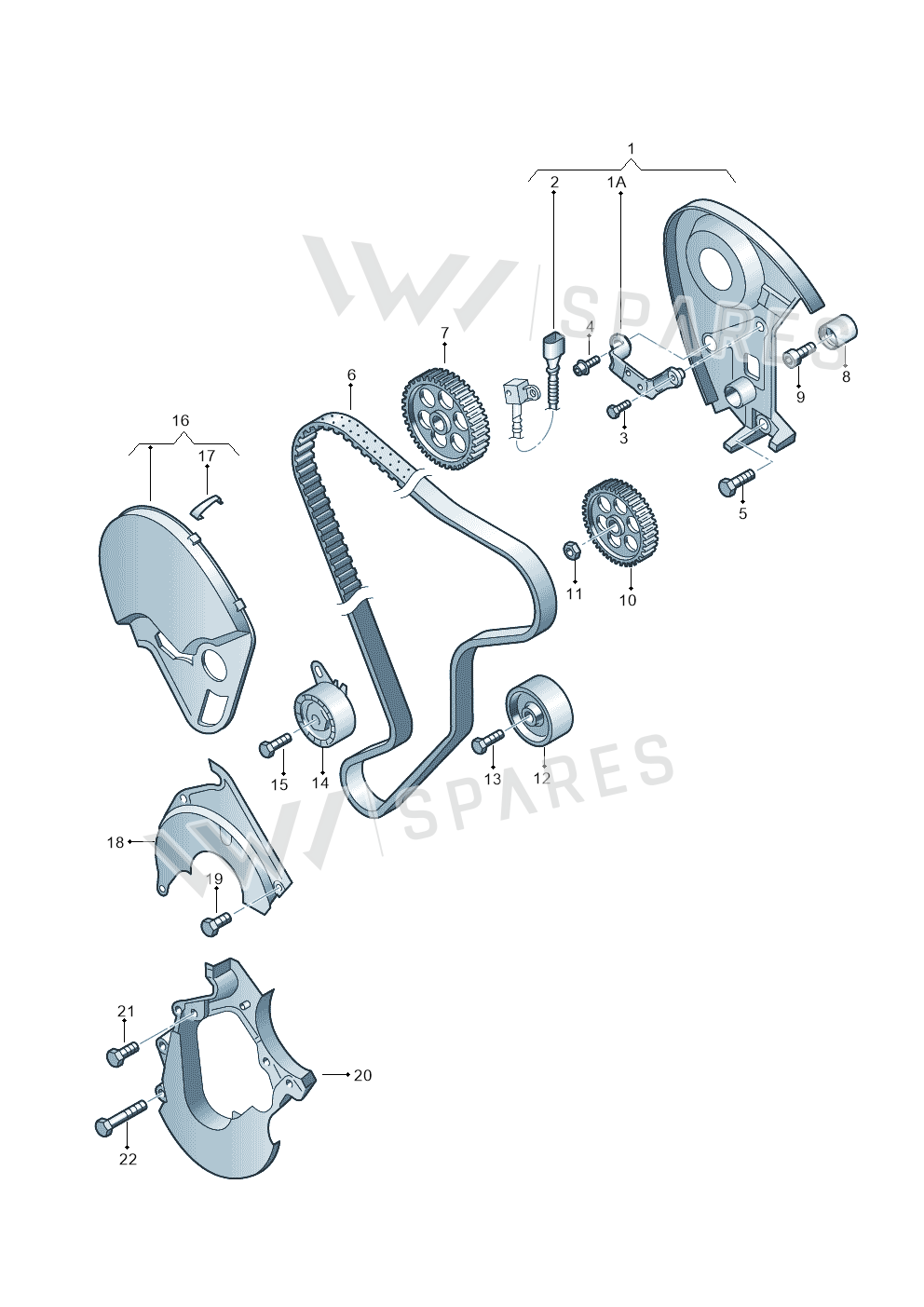

13 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly17
- 1Protection 076109108
- 1ARetaining 076109185A
- 3Bolt N01021813
- 4Screw N10572403
- 5Bolt N01024718
- 6Tooth Belt 076109119A
- 8Roller 03L109244D
- 9Screw N90903502
- 12Roller 038109244M
- 13Bolt N10329102
- 14Tens Roll 074109243E
- 16Protection 076109107
- 17Clip 026109150A
- 18Protection 074109127Q
- 19Bolt N01021020
- 20Protection 074109121C
- 22Bolt N10205604
Vehicle fitment table13
Europe (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Crafter 35 panel | 2011-2016 | 15 | 1 | |
| CRAFTER 06> | 2006- | 15 | 1 | |
| Golf Cabrio | 1994-1996 | 21 | 2 | |
| Jetta 87 | 1986-1987 | 41 | 1 | KR,PL |
| Jetta 86 | 1985-1986 | 41 | 1 | |
| Jetta 85 | 1984-1985 | 21 | 2 | |
| CADDY | 1982-1992 | 21 | 2 | |
| Jetta 81 | 1980-1981 | 21 | 2 | |
| Scirocco | 1978-1980 | 16E | 2 |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| MARINE-MOTOR 02> | 2002- | 4, 11 | 1 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 701 platform | 12 | |||
| 6K0 platform | 21 | 2 | ||
| 914 platform | 29 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: Crafter 35 panel 2011-2016; CRAFTER 06> 2006-; Golf Cabrio 1994-1996; Jetta 87 1986-1987; Jetta 86 1985-1986; Jetta 85 1984-1985; CADDY 1982-1992; Jetta 81 1980-1981; Scirocco 1978-1980; MARINE-MOTOR 02> 2002-; 701 platform; 6K0 platform; 914 platform.
