N01190711 End Cap
This is a catalog item (special order). Delivery time may vary.
Special order item. Delivery time may vary.
About This Part
Available for Purchase
This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

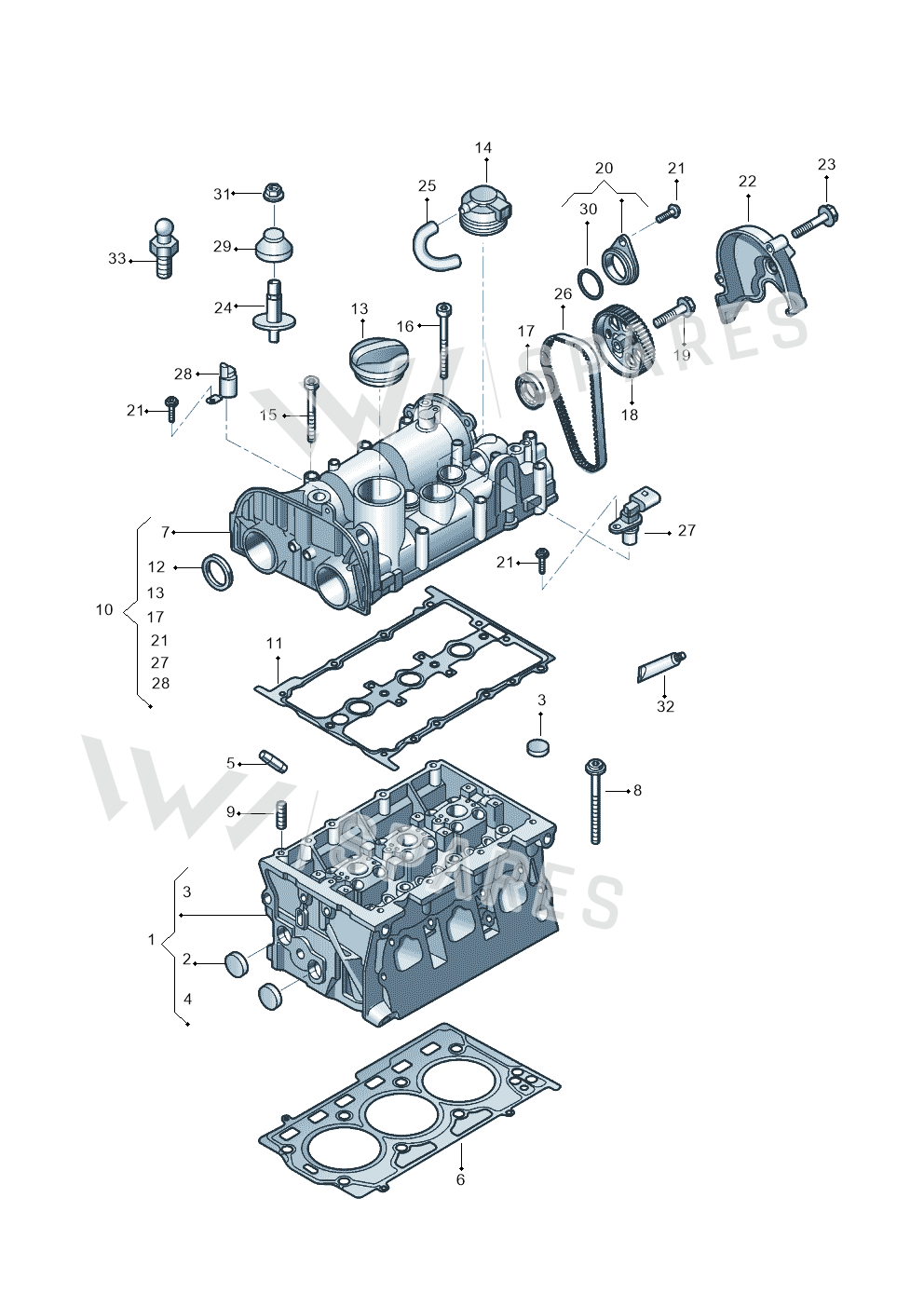

7 vehiclesEnd Cap — locate End Cap in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly34
- 1Cylinder Head 04C103063M
- 2Cover N01190111
- 2Cover N01190110
- 3Cover N01190710
- 4Cover N01191411
- 4Cover N01191410
- 5Bolt N10773501
- 6Seal 04C103383N
- 8Screw WHT007089
- 9Part 026103139
- 10Cylinder Head 04C103469M
- 11Seal 04C103483C
- 11Seal 04C103483G
- 12Seal 04E103085AF
- 13Cover 04E103485A
- 14Valve 04E103175
- 15Bolt N91254401
- 15Bolt N91165001
- 16Bolt N91254301
- 16Bolt N91097401
- 17Seal 04E103085AC
- 18Pulley 04E109111AD
- 19Bolt N91145502
- 20Cover 04C103335
- 21Bolt N91096701
- 22Protection 04C109121E
- 22Protection 04C109121D
- 23Screw N91097201
- 24Part 028103665
- 25Hose 04C103560C
- 29Grommet 038103638L
- 30Seal Ring N90467301
- 31Ut"hex Nut Self-locking With Washer Hex Nut N90570805
- 32Sealant D154102A1
Vehicle fitment table7
Europe (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| up! 1.0 TSI | 2013-2017 | 3 | 1 | CSEA,CSEZ, |
Other markets (6)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Polo Track | 2023- | 3 | 1 | |
| up! 1.0 TSI | 2017-2021 | 3 | 1 | |
| Voyage | 2016-2023 | 3 | 1 | |
| Gol 1.6 | 2015-2023 | 3 | 1 | |
| Crossfox | 2014-2021 | 3 | 1 | |
| GOLF "ZA." | 2005-2007 | 3 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
End Cap is fitted on: up! 1.0 TSI 2013-2017; Polo Track 2023-; up! 1.0 TSI 2017-2021; Voyage 2016-2023; Gol 1.6 2015-2023; Crossfox 2014-2021; GOLF "ZA." 2005-2007.
