About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

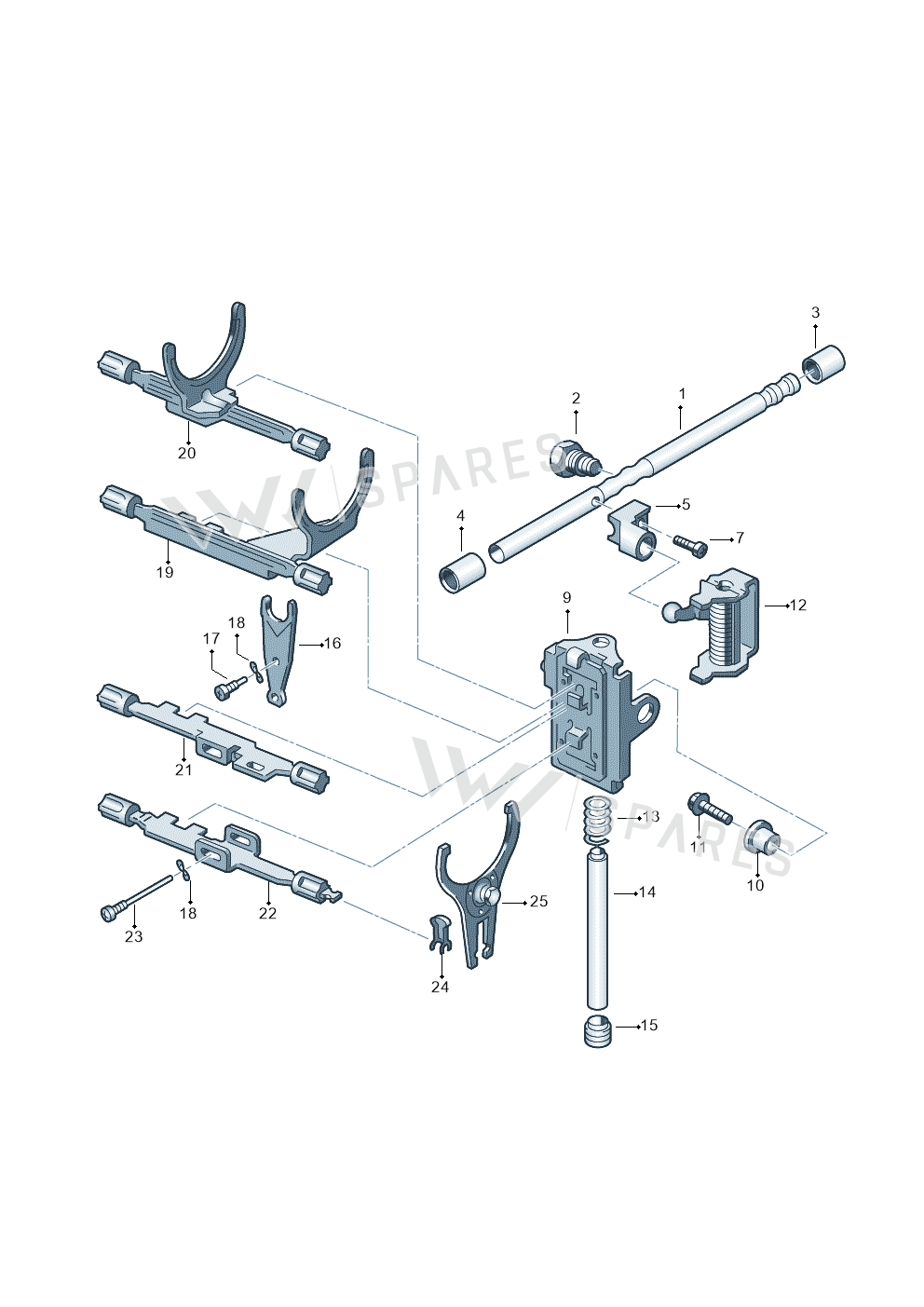

15 vehiclesSpring Washer — locate Spring Washer in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly24
- 1Part 085301249R
- 2Screw 085301241A
- 2Screw 020301241J
- 3Sleeve 085311665A
- 4Sleeve 085311666B
- 7Screw N0147271
- 9Console 085311987K
- 9Console 085311987F
- 10Sleeve 085311992
- 11Bolt N10106901
- 12Finger 085311535M
- 12Finger 085311535N
- 12Finger 085311535J
- 13Press Spring 085311644
- 14Part 085311587
- 15Bungs 085301115
- 16Lever 085311583A
- 17Screw 085311589B
- 19Shaft 085311549A
- 20Shaft 085311559K
- 21Shaft 085311575C
- 22Shaft 085311566A
- 23Screw 085311589C
- 24Clip 085311582
Vehicle fitment table15
Europe (10)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| LUPO/3L TDI | 2003-2005 | 18 | 2 | G0C | |
| LUPO/3L TDI | 1998-2003 | 18 | 2 | ||
| Golf/Ecomatic 95 | 1994-1995 | 32 | 1 | ||
| Jetta GLX 94 | 1993-1994 | 18 | 2 | ||
| Polo/Polo Coupe | 1990-1994 | 18 | 1 | ||
| Carrera 4 Coupe | 1988-1994 | 6 | 1 | 3069 | |
| Carrera Cabrio | 1986-1989 | 20 | 1 | ||
| Carrera Cabrio | 1983-1986 | 20 | 1 | ||
| SC Cabrio | 1979-1983 | 22 | 1 | ||
| 928 Coupe | 1979-1982 | 9 | 1 |
Platform / generic diagrams (5)
| Vehicle | Years | Pos. | Qty | Remark | PR |
|---|---|---|---|---|---|
| 914 platform | 22 | 1 | |||
| 901 platform | 26 | 1 | |||
| 901 platform | 26 | 1 | |||
| 911 platform | 22 | 1 | |||
| 911 platform | 22 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Spring Washer is fitted on: LUPO/3L TDI 2003-2005; LUPO/3L TDI 1998-2003; Golf/Ecomatic 95 1994-1995; Jetta GLX 94 1993-1994; Polo/Polo Coupe 1990-1994; Carrera 4 Coupe 1988-1994; Carrera Cabrio 1986-1989; Carrera Cabrio 1983-1986; SC Cabrio 1979-1983; 928 Coupe 1979-1982; 914 platform; 901 platform; 911 platform.
