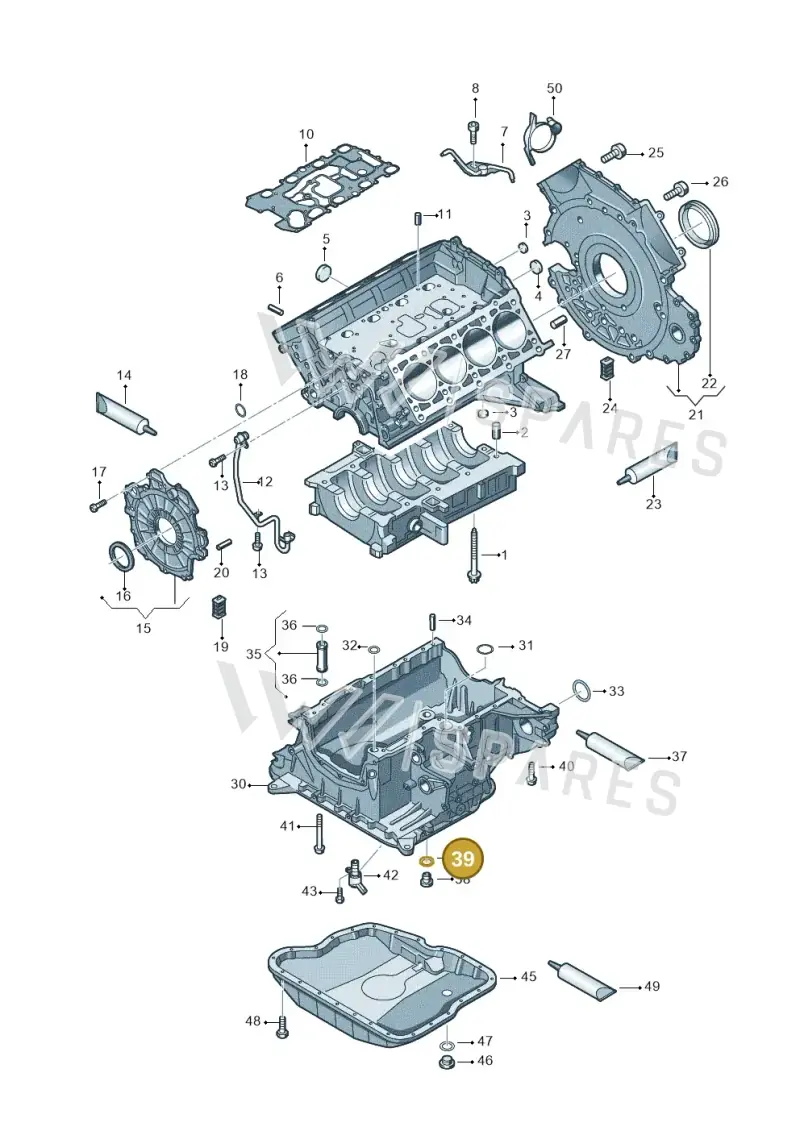

Number 39 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Seal Ring, part number N0138165. This seal ring is designed to seal components within the engine or gearbox selector mechanism. It is located at position 39 in the engine assembly. The seal ring has a diameter of 0.024 m and a height of 0.002 m. Genuine OEM seal rings are manufactured to exact tolerances for reliable sealing and long service life.
Catalogue entry: seal ring 18X24.
Fitted with: 057103601T OIL SUMP, N91008501 SEAL. RING, N90956601 SEAL. RING, N90322804 SEAL. RING, 055105277 spring pin, D176501A1 SEAL, N90853903 SCREW, N91009402 SCREW.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 74198090
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 2.4 × 2.4 × 0.2 cm
- Shipping weight
- 0 kg
Specifications
As recorded in the manufacturer’s parts catalogue for this part number.
- Dimensions
- 18x24
Why buy from WW Spares?
- ✓ Genuine OEM inventory sourced directly from factory networks
- ✓ Fitment support from workshop-seasoned parts specialists
- ✓ Global logistics with customs-ready documentation
Need help confirming compatibility? Talk to a specialist
Parts diagram & fitment

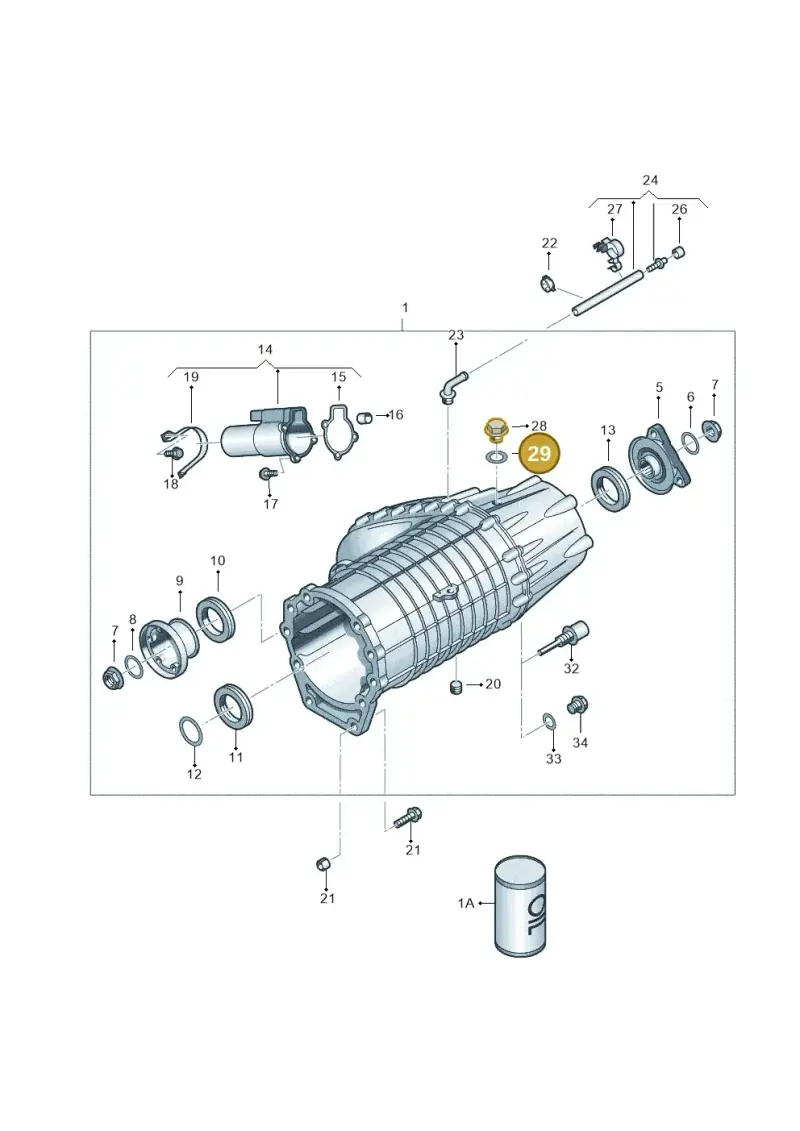

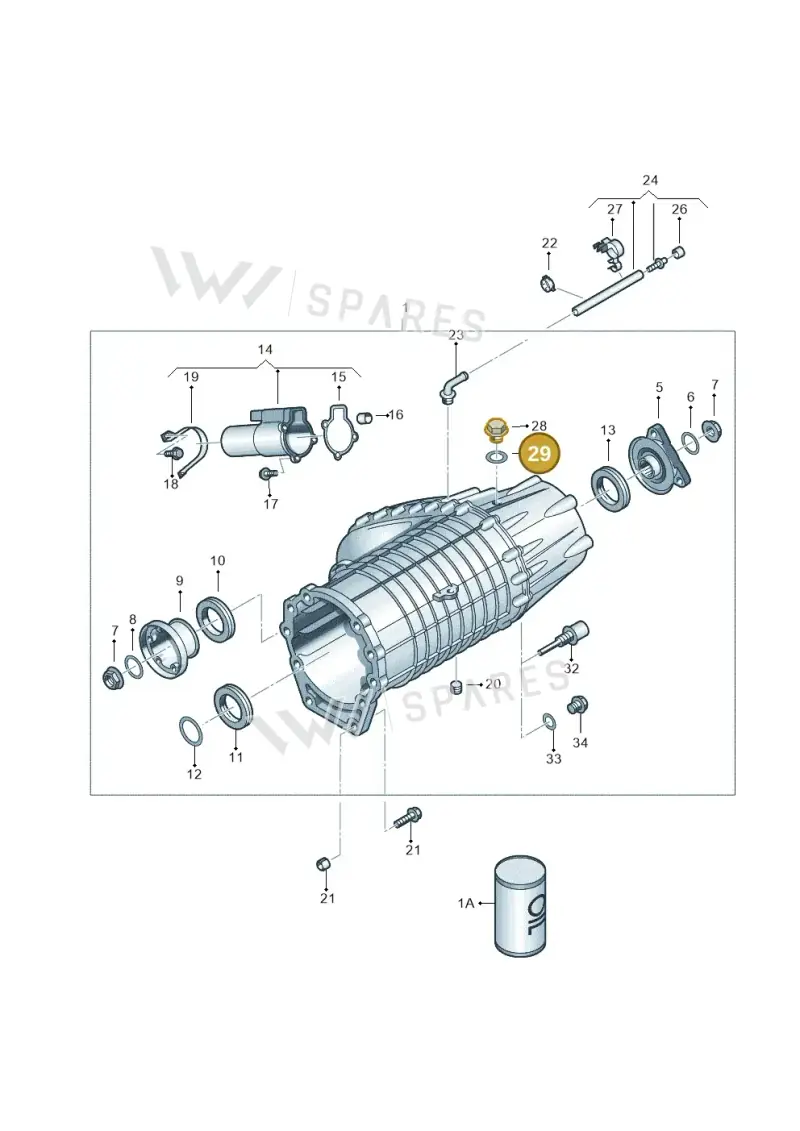

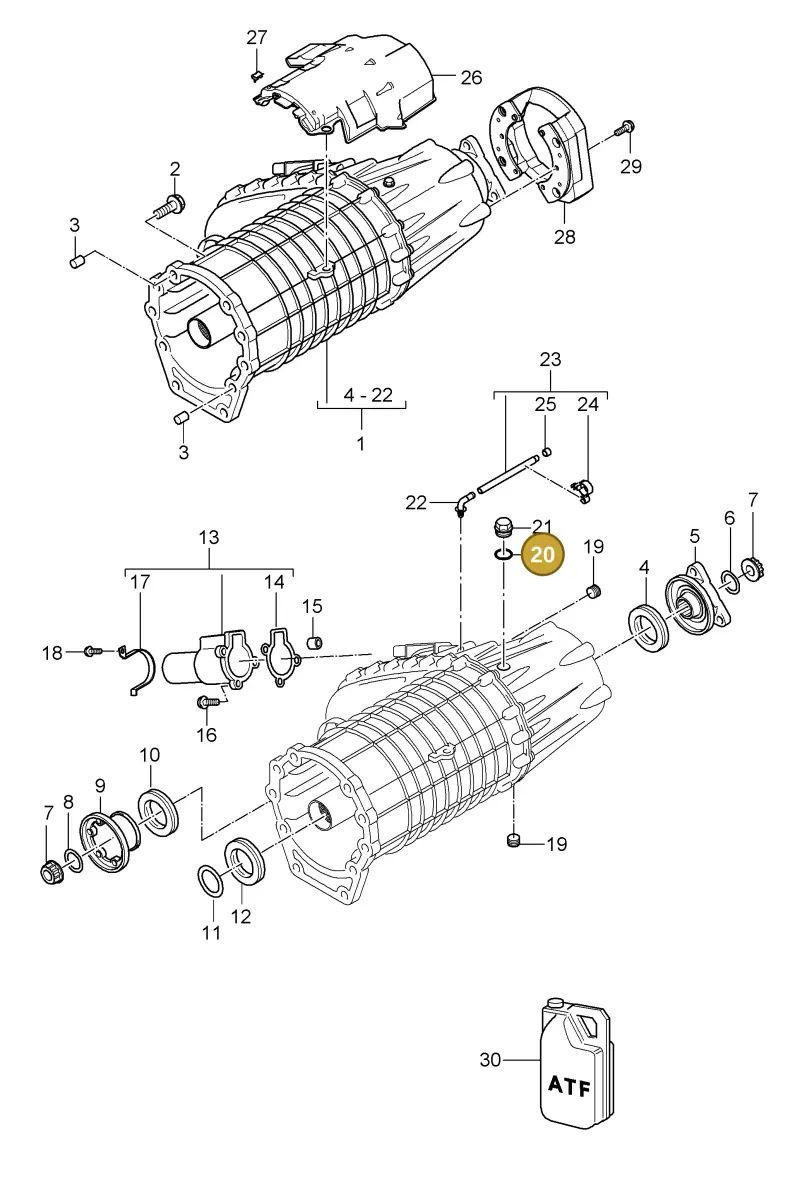

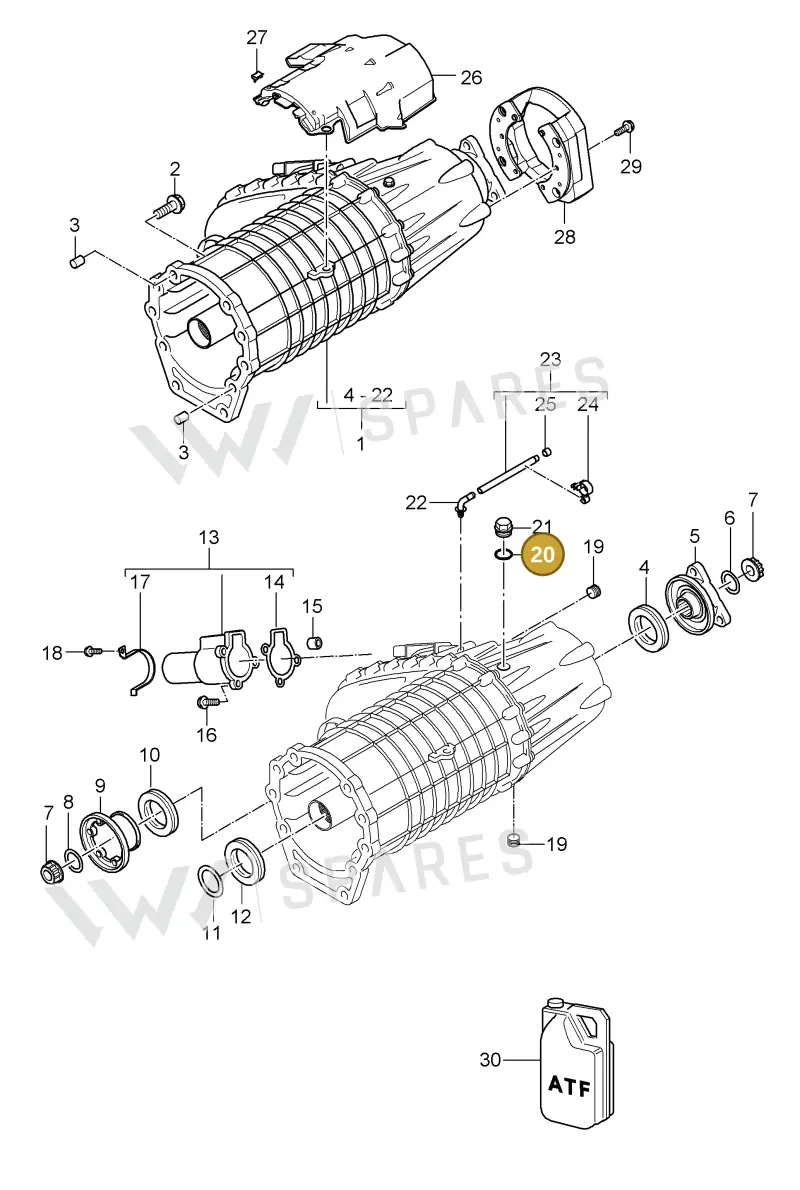

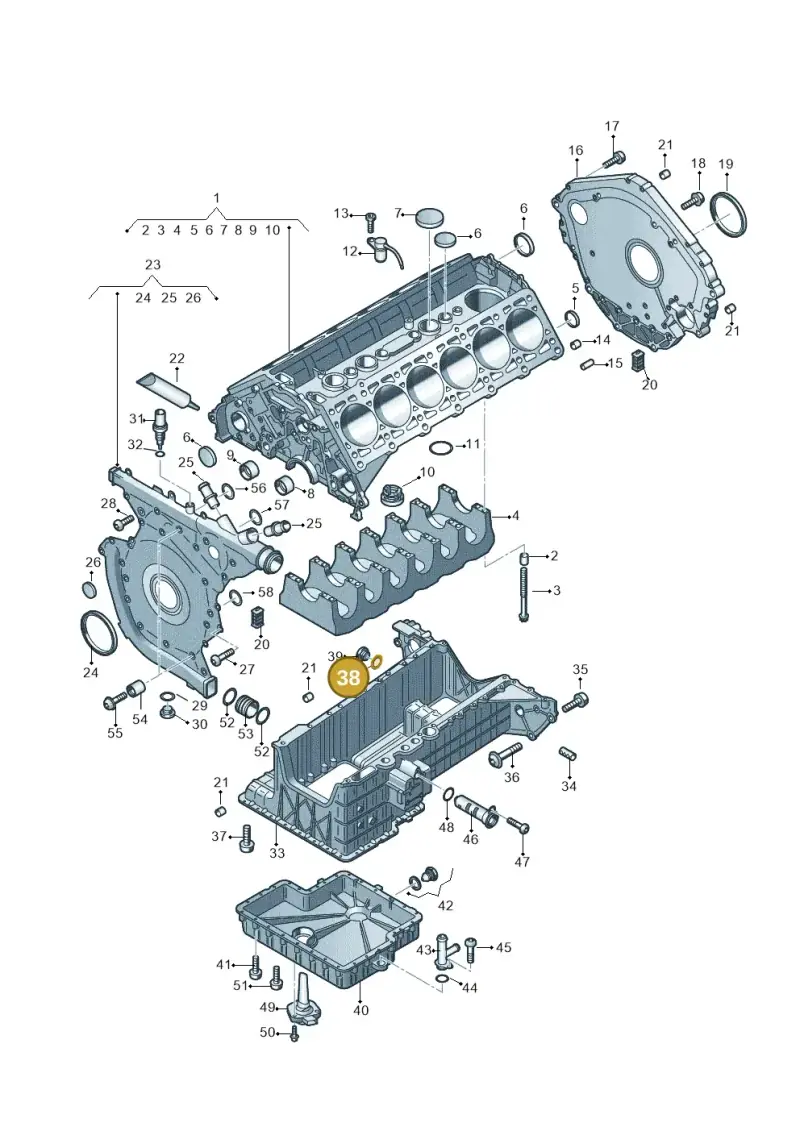

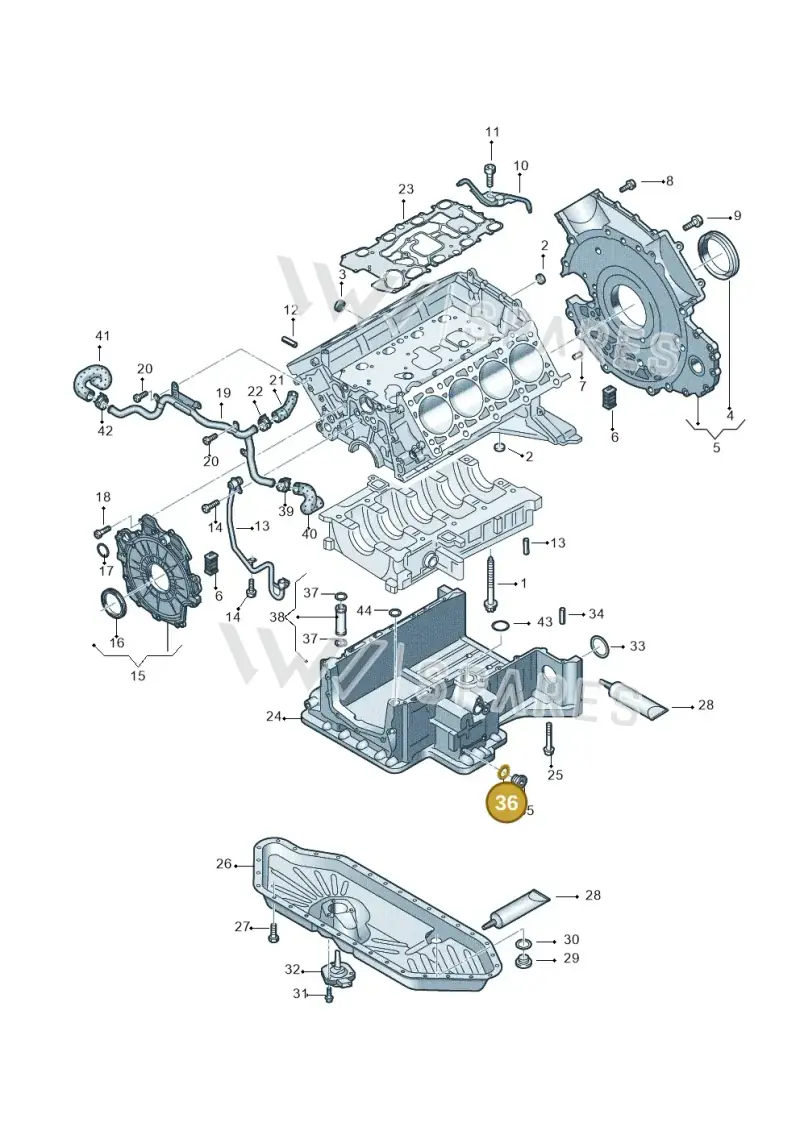

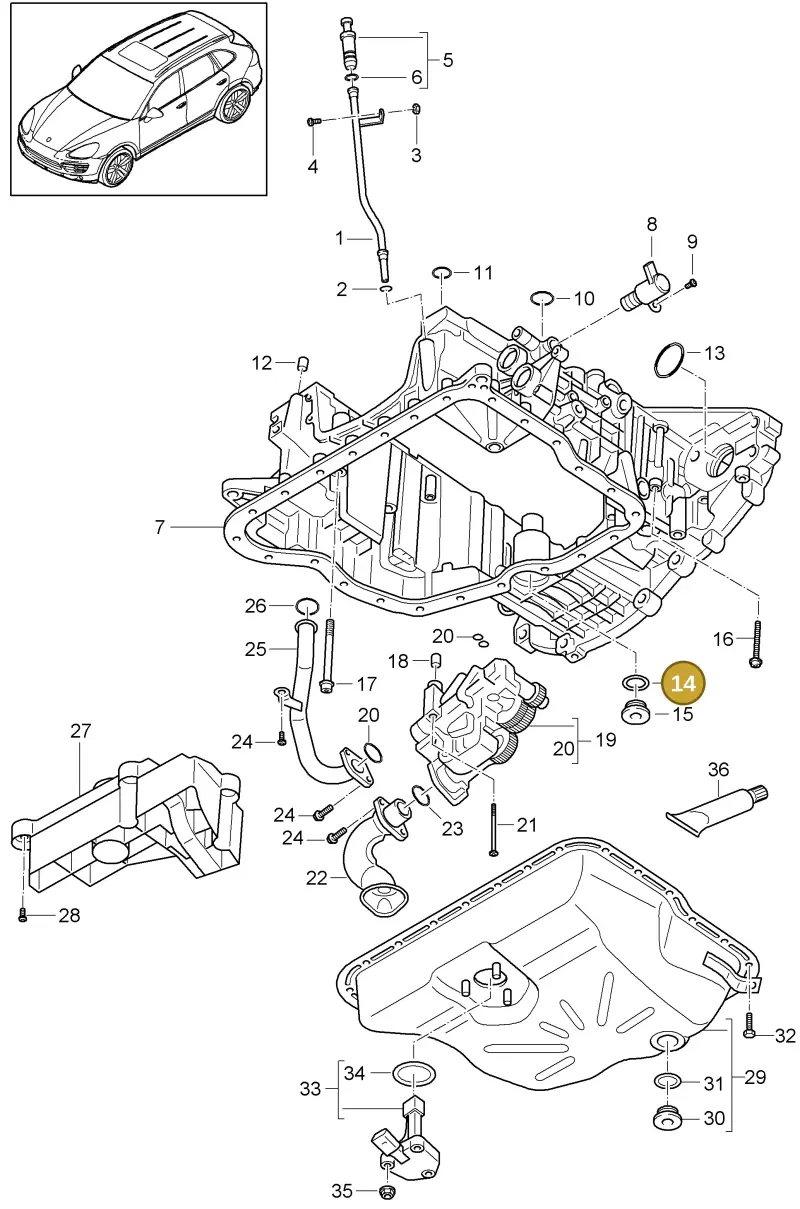

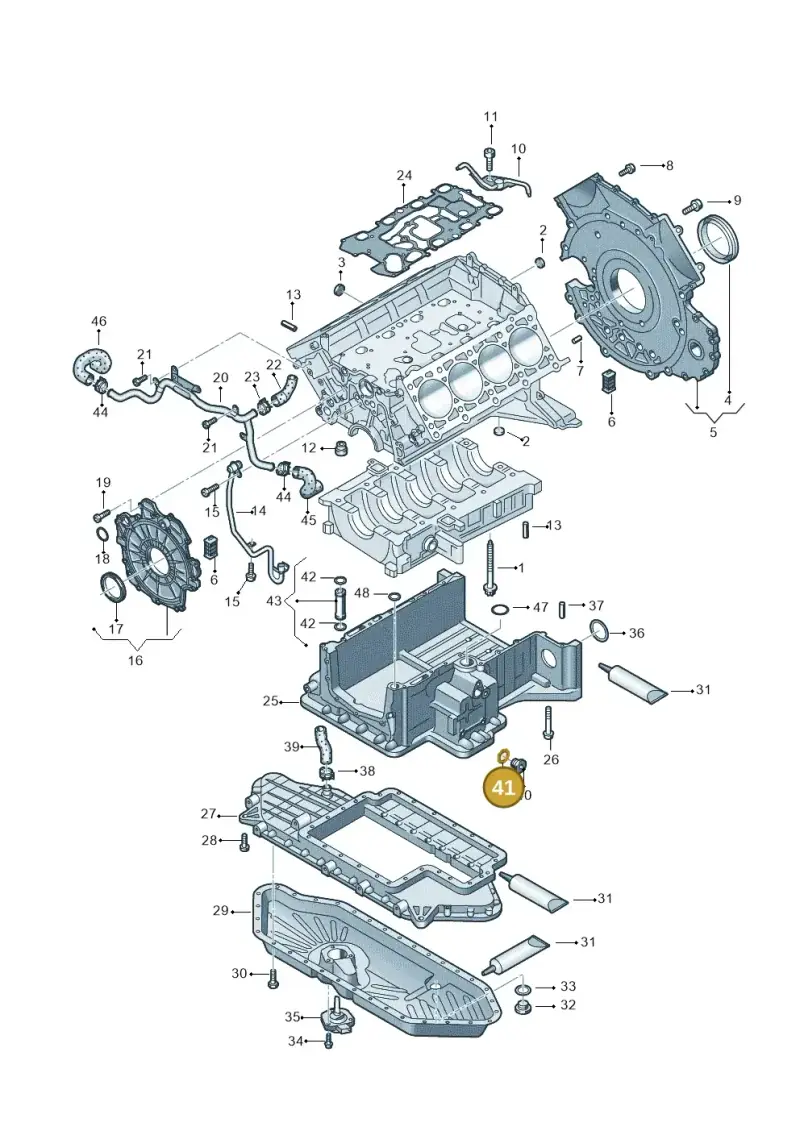

146 vehiclesSeal Ring — locate N0138165 Volkswagen Seal Ring | Engine in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly43
