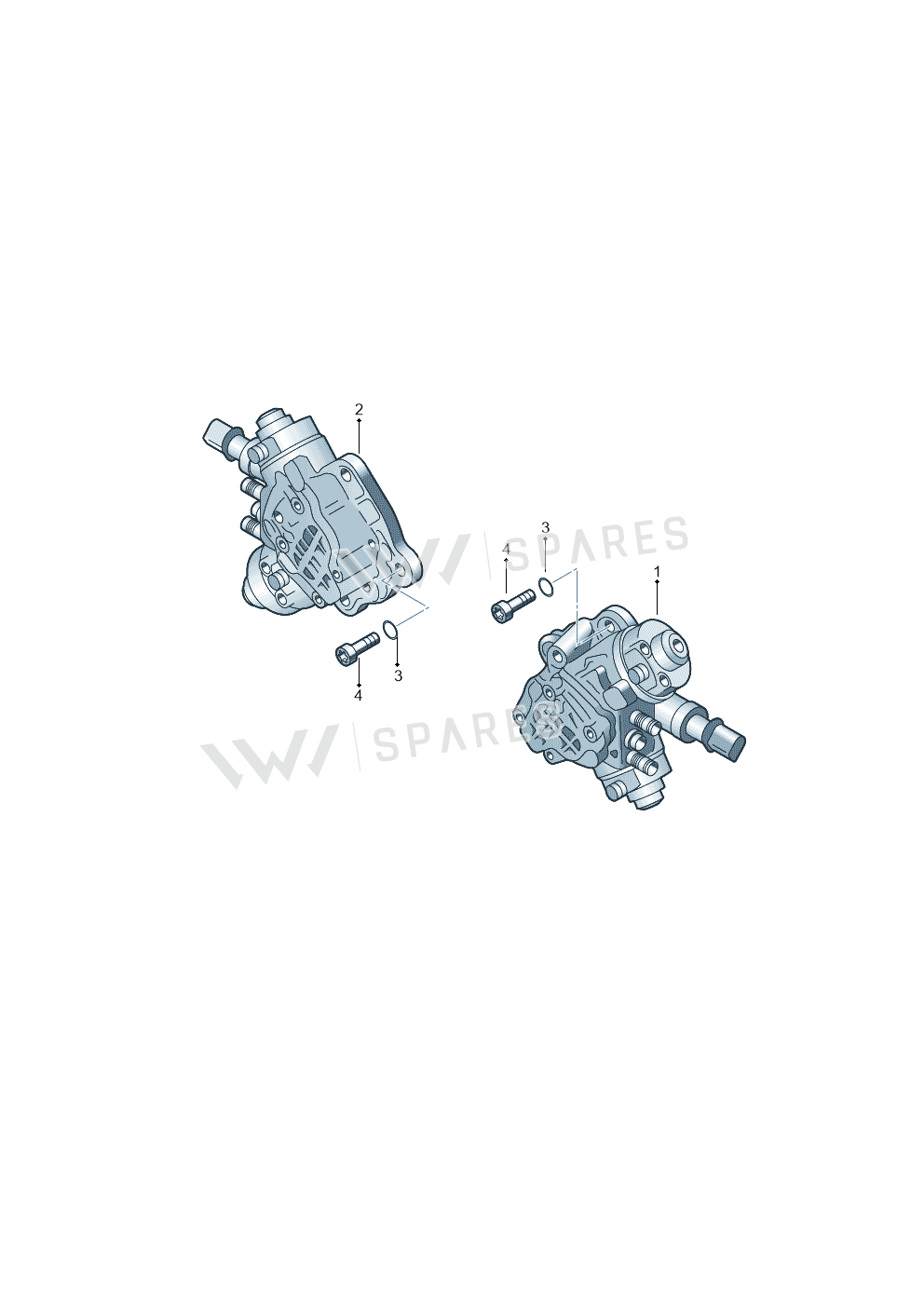

Seal Ring exploded parts diagram — Audi Q7 qu. 3.0 TDI · 2009-2015, position 3
Exploded view
Audi Q7 qu. 3.0 TDI · 2009-2015 · position 3Full diagram ↓
N0138304

N0138304 Seal Ring

£0.50
£0.41 excl. VAT

This is a catalog item (special order). Delivery time may vary.

Availability: Available to order

Special order item. Delivery time may vary.

About This Part

Available for Purchase

This part is available to order directly from the manufacturer. While it's not currently in our warehouse, we can source it for you and have it shipped to your location.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Contact us with your VIN
Genuine OEM Parts
Direct from manufacturer
Secure Ordering
Safe and protected checkout

Parts diagram & fitment

15 vehicles

Seal Ring — locate Seal Ring in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly2
Vehicle fitment table16

Europe (11)

VehicleYearsPos.QtyPR
Audi Q7 qu. 3.0 TDI2009-201536D56
Audi Q7 07>2006-36TD5
L801995-199912, 321
VW 1200 MEX.1978-198513
TIPO 2 (MEX)1971-200172
VW 1302/13031970-198015
Mod. 1811969-1982192
Type 21967-1979102
KAEFER (MEX.)1964-200314
IND.MOT.4-ZYL:1,2-1,81950-19919, 82
VW 1200/1300 F>>1181947-197715

Other markets (4)

VehicleYearsPos.QtyPR
Vanagon1987-1992391
Vanagon syncro1985-1992391
Vanagon1985-1987391
Vanagon1979-1985391

Listed without a diagram position (1)

VehicleYearsPos.QtyPR
644 platform24

Diagrams & fitment data powered by oemdiagrams.com

Seal Ring is fitted on: Audi Q7 qu. 3.0 TDI 2009-2015; Audi Q7 07> 2006-; L80 1995-1999; VW 1200 MEX. 1978-1985; TIPO 2 (MEX) 1971-2001; VW 1302/1303 1970-1980; Mod. 181 1969-1982; Type 2 1967-1979; KAEFER (MEX.) 1964-2003; IND.MOT.4-ZYL:1,2-1,8 1950-1991; VW 1200/1300 F>>118 1947-1977; Vanagon 1987-1992; Vanagon syncro 1985-1992; Vanagon 1985-1987; Vanagon 1979-1985.
