N0147733 Socket Head Bolt
- N0147733This pageNot stocked
Apr 2007 - N0147736Discontinued
Nov 2020
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

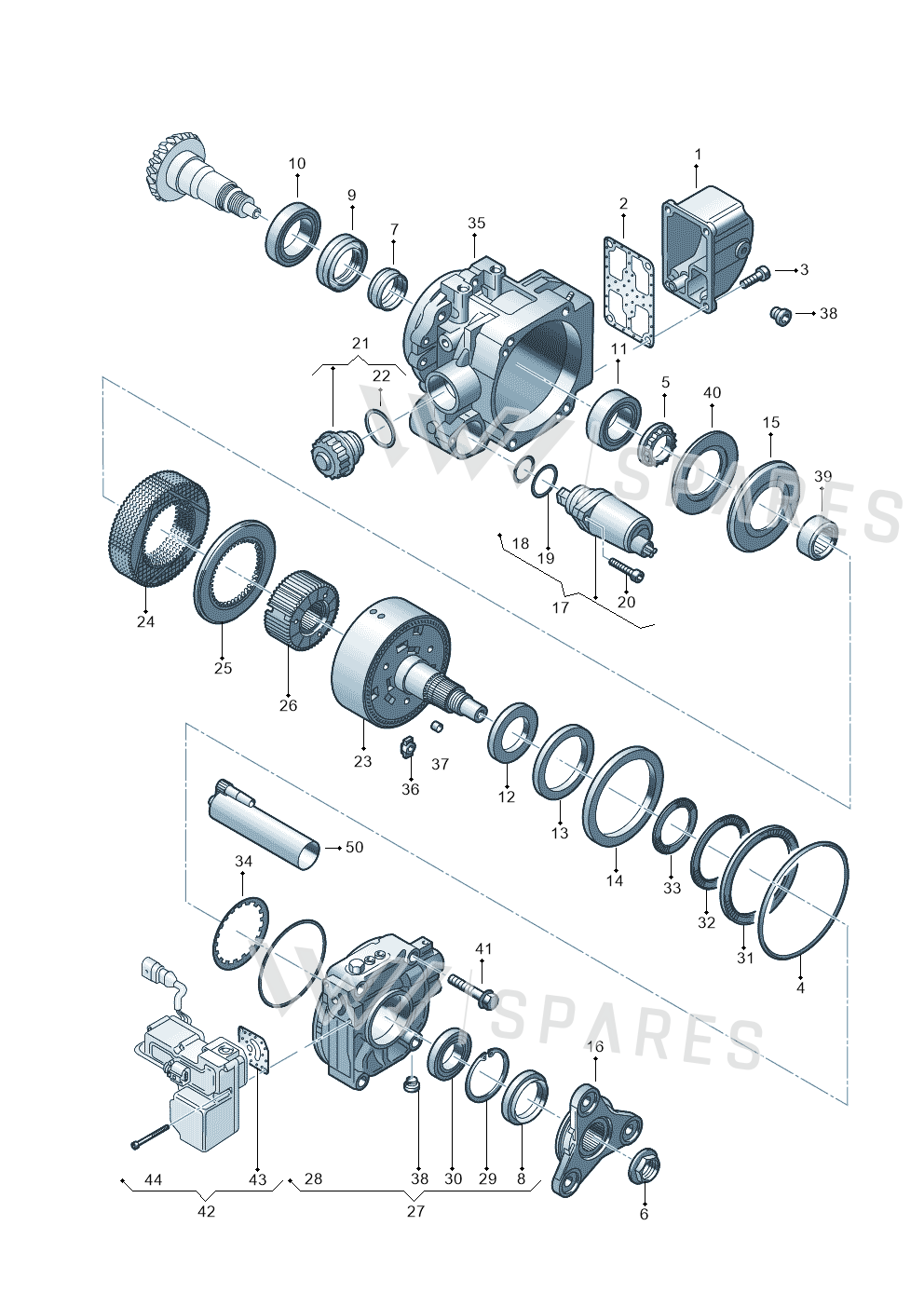

17 vehiclesSocket Head Bolt — locate Socket Head Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly48
- 1Cover 02D525083
- 4Ring 02D525126
- 5Collar Nut 02D525133A
- 6Collar Nut 02D525134
- 7Sleeve 02D525267
- 8Seal 02D525275B
- 9Seal 02D525275C
- 10Mounting 091517185D
- 11Mounting 003519185F
- 12Washer 02D525293
- 13Washer 02D525293A
- 14Washer 02D525293B
- 15Washer 02D525293C
- 16Flange 02D525284
- 17Pump 02D525557
- 18Seal Ring N90295401
- 19Seal Ring N90464201
- 20Screw N10189601
- 21Oil Filter 02D525558A
- 22Seal Ring N90344501
- 23Housing 02D525563C
- 24Blocks 02D525565
- 25Cam Disc 02D525576
- 26Part 02D525634
- 27Cover 02D525577A
- 27Cover 02D525577
- 28Seal Ring N90443401
- 29Ring 02D525731
- 30Bearing 02D525777
- 31Ax Bearing 02D525781A
- 32Ax Bearing 02D525781B
- 33Ax Bearing 02D525781C
- 34Spring 02D525617A
- 34Spring 02D525617
- 35Housing 02D525646B
- 36Roller 02D525599
- 37Roller 02D525647
- 38Screw 02D525729A
- 38Plug 02D525729
- 39Bearing 02D525771
- 40Ax Bearing 02D525781
- 41Bolt N10329102
- 42Control Unit 02D900554DX
- 43Seal Ring 02D525345
- 43Seal Ring 02D525345A
- 43Seal 02D525589
- 44Screw N0200003
- 50Part G052175A1
Vehicle fitment table17
Europe (15)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| Alhambra | 2006-2010 | 3 | 4 | |
| ALHAMBRA/4MOTION | 2005- | 3 | 4 | |
| Cayenne | 2002-2006 | 25 | 1 | |
| ALHAMBRA/4MOTION | 2002-2005 | 3 | 4 | |
| Jetta Wagon | 2001-2001 | 3 | 2 | 1X1 |
| Passat/4Motion/W8 | 2000-2002 | 8, 37 | 2 | T0F |
| ALHAMBRA/4MOTION | 2000-2002 | 3 | 4 | |
| AUDI RS4 AV. QU. | 2000-2001 | 16 | 2 | |
| Audi TT Coupe/Roadster | 1999-2002 | 3 | 2 | |
| Audi A4/Avant | 1999-2001 | 16 | 2 | |
| Audi A4/Av.qu. | 1999-2001 | 16 | 2 | |
| New Beetle | 1998-2001 | 3 | 2 | |
| Golf | 1998-2000 | 3 | 2 | |
| AUDI A3/S3/QUATTRO | 1996-2000 | 3 | 2 | |
| OCTAVIA/COMBI/4X4 | 1996-2000 | 3 | 2 |
Platform / generic diagrams (2)
| Vehicle | Years | Pos. | Qty | PR |
|---|---|---|---|---|
| 7L6 platform | 32 | 1 | ||
| 1J0 platform | 3 | 2 |
Diagrams & fitment data powered by oemdiagrams.com
Socket Head Bolt is fitted on: Alhambra 2006-2010; ALHAMBRA/4MOTION 2005-; Cayenne 2002-2006; ALHAMBRA/4MOTION 2002-2005; Jetta Wagon 2001-2001; Passat/4Motion/W8 2000-2002; ALHAMBRA/4MOTION 2000-2002; AUDI RS4 AV. QU. 2000-2001; Audi TT Coupe/Roadster 1999-2002; Audi A4/Avant 1999-2001; Audi A4/Av.qu. 1999-2001; New Beetle 1998-2001; Golf 1998-2000; AUDI A3/S3/QUATTRO 1996-2000; OCTAVIA/COMBI/4X4 1996-2000; 7L6 platform; 1J0 platform.
