N02035317 Hose In Coils Of 5m 'Order Unit 5'
- N02035317This pageNot stocked
Feb 2005 - N02035333Current number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

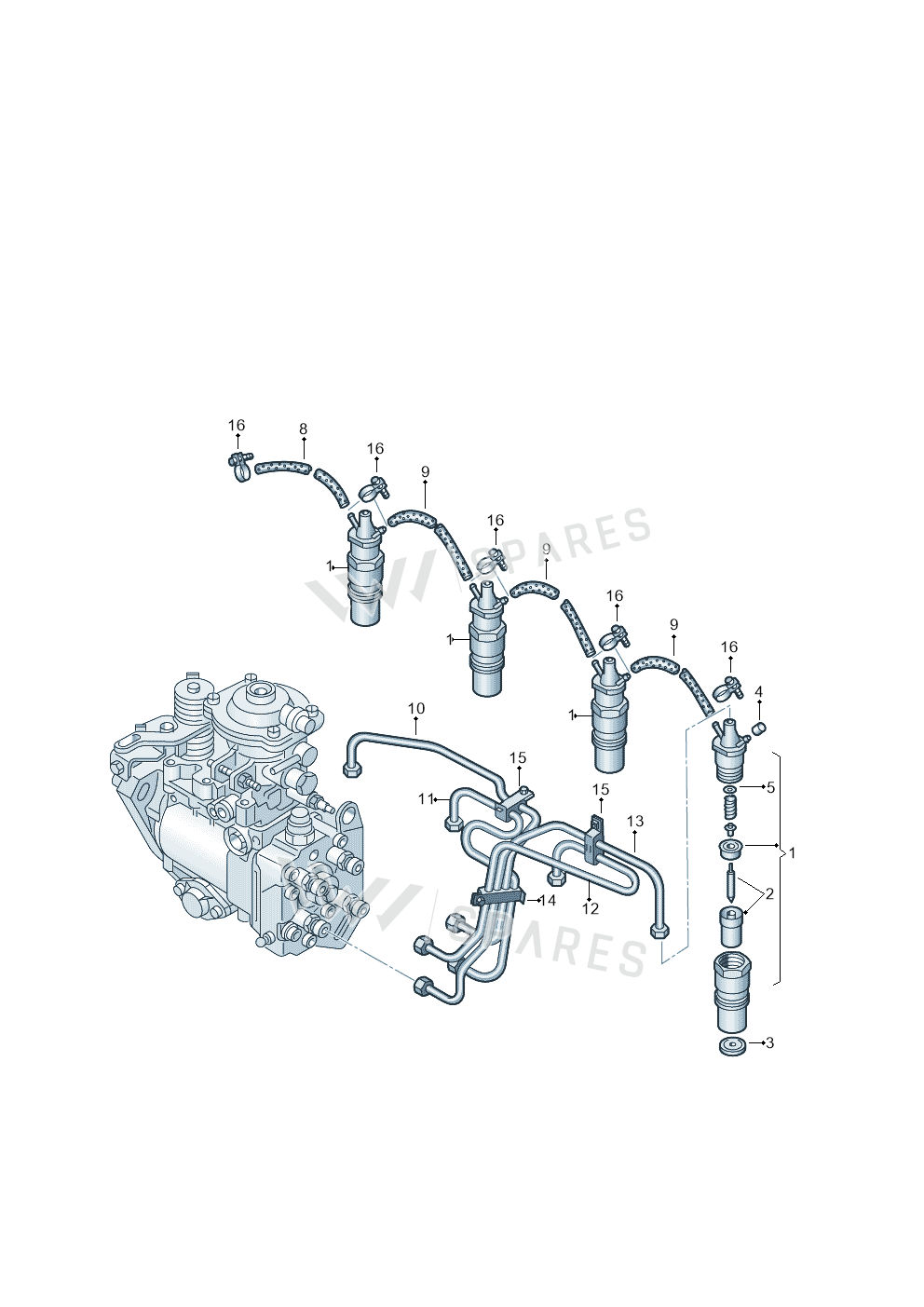

7 vehiclesHose In Coils Of 5m 'order Unit 5' — locate Hose In Coils Of 5m 'Order Unit 5' in the official exploded view and explore the surrounding assembly.
Parts in this assembly33
- 2Nozzle Ndl 068130211H
- 3Seal Plate 068130219
- 4Part 028130229A
- 5Washer 068130252
- 5Washer 068130253
- 5Washer 068130254
- 5Washer 068130255
- 5Washer 068130256
- 5Washer 068130257
- 5Washer 068130258
- 5Washer 068130259
- 5Washer 068130260
- 5Washer 068130261
- 5Washer 068130262
- 5Washer 068130263
- 5Washer 068130264
- 5Washer 068130265
- 5Washer 068130266
- 5Washer 068130267
- 5Washer 068130268
- 5Washer 068130269
- 5Washer 068130270
- 5Washer 068130251
- 10Pipe 028130301L
- 10Pipe 028130301Q
- 11Pipe 028130302Q
- 11Pipe 028130302L
- 12Pipe 028130303M
- 12Pipe 028130303J
- 13Pipe 028130304M
- 13Pipe 028130304H
- 14Clamp 028130431
- 16Clamp N90045501
Vehicle fitment table30
Europe (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| CADDY-KOMBI/KASTENW. 06> | 2005- | 8 | ||
| POLO CLASSIC 06> | 2005- | 8 | ||
| caddy combi./del.van | 1998-2005 | 8 | 1 | 1Y |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Rabbit | 1976-1978 | 29 |
Platform / generic diagrams (3)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 6K0 platform | 8 | |||
| 377 platform | 5 | X | 221 | |
| 6K0 platform | 9 | 1 | 1Y |
Listed without a diagram position (23)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi A8 quattro | 1999-2002 | |||
| AUDI A8 | 1998-2002 | |||
| Audi A8 | 1996-1998 | |||
| Audi A8 qu. | 1996-1998 | |||
| Golf 96 | 1995-1996 | |||
| Golf Var./Vento 96 | 1995-1996 | |||
| Audi A6/S6/Wagon qu. 96 | 1995-1996 | |||
| Golf/Ecomatic 95 | 1994-1995 | |||
| Golf Var./Vento 95 | 1994-1995 | |||
| Jetta GLX 94 | 1993-1994 | |||
| Audi 100/Wagon 94 | 1993-1994 | |||
| Transporter syncro | 1992-1995 | |||
| Audi 100/Wagon 93 | 1992-1993 | |||
| GOLF/Ecomatic | 1991-1994 | |||
| Passat | 1991-1993 | |||
| Jetta 85 | 1984-1985 | |||
| Audi 5000 S/Wagon 84 | 1983-1984 | |||
| LT, LT 4x4 (28-55) | 1982-1989 | |||
| POLO/COUPE/DERBY | 1981-1990 | |||
| Jetta | 1981-1984 | |||
| Quantum | 1981-1984 | |||
| Rabbit Conv. | 1981-1983 | |||
| Vanagon | 1979-1985 |
Diagrams & fitment data powered by oemdiagrams.com
Hose In Coils Of 5m 'Order Unit 5' is fitted on: CADDY-KOMBI/KASTENW. 06> 2005-; POLO CLASSIC 06> 2005-; caddy combi./del.van 1998-2005; Rabbit 1976-1978; 6K0 platform; 377 platform.
