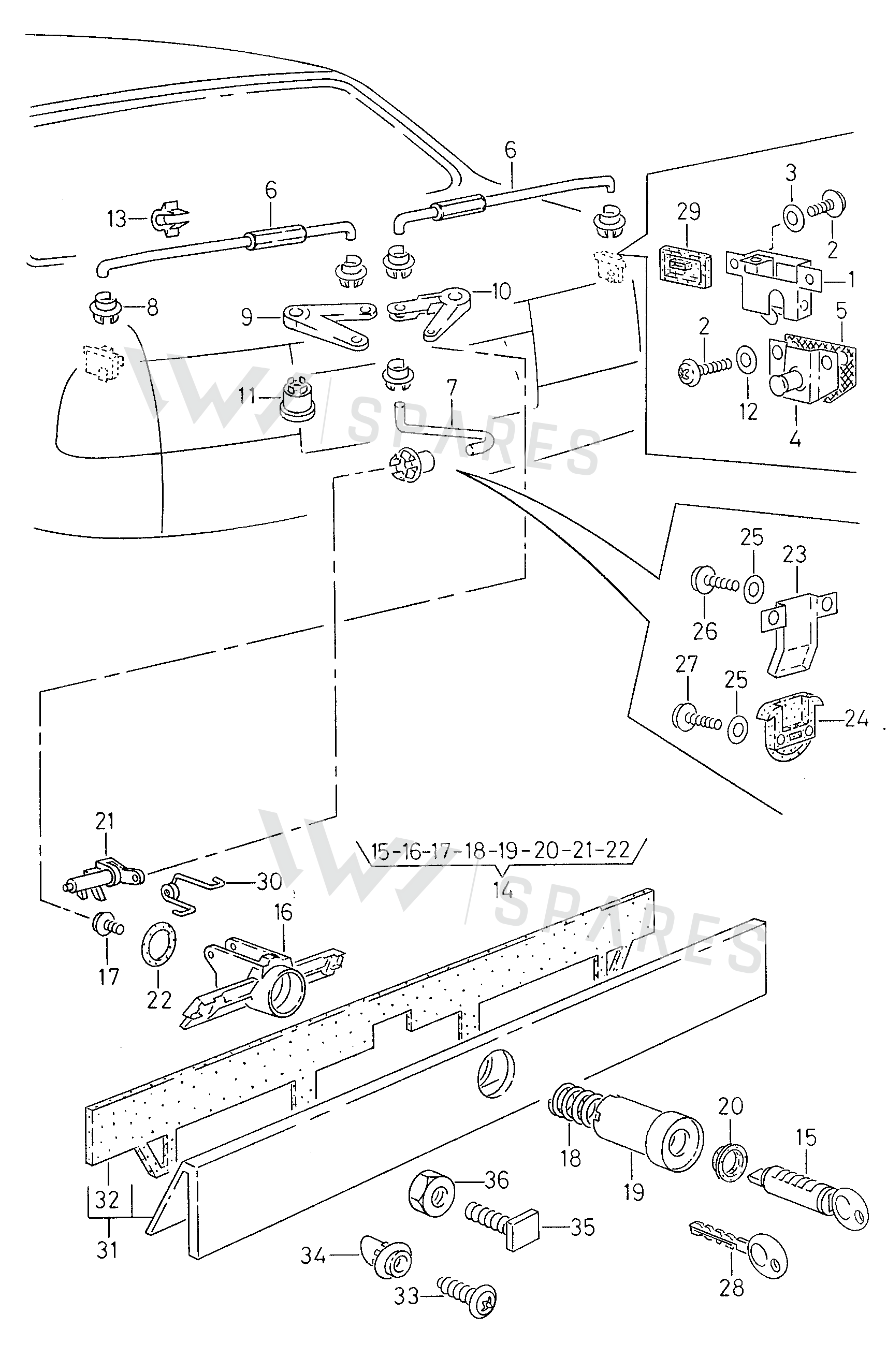

Oval Head Countersunk Bolt exploded parts diagram — TOLEDO SEAT MOD.97>99 · 1996-1999, position 17 — TOLEDO SEAT MOD.97>99 · 1996-1999 · position 17Full diagram ↓

N0301191

N0301191 Oval Head Countersunk Bolt

Name: N0301191 Oval Head Countersunk Bolt
Brand: Volkswagen
SKU: N0301191
Price: 0.28 GBP
Availability: Discontinued

£0.28

£0.23 excl. VAT

Supersession roadoldest to newest

N0142079
Not stocked Oct 1999
N0301191
Discontinued Sep 2013
You are here

N0142079Not stocked
Oct 1999
N0301191This pageDiscontinued
Sep 2013

Availability: Discontinued — no longer orderable

Quantity:

Special order item. Delivery time may vary.

About This Part

Discontinued by the manufacturer

This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.

Order Processing & Delivery

This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.

Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.

* Delivery times are estimates and may vary based on manufacturer availability and your location.

Verify Vehicle Fitment

To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.

Genuine OEM Parts

Direct from manufacturer

Secure Ordering

Safe and protected checkout

Parts diagram & fitment

58 vehicles

Oval Head Countersunk Bolt — locate Oval Head Countersunk Bolt in the official exploded view and explore the surrounding assembly.

Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.

Parts in this assembly40

Vehicle fitment table58

Europe (44)

Vehicle	Years	Pos.	Qty
TOLEDO SEAT MOD.97>99	1996-1999	17	1
L80	1995-1999	27	2
TOLEDO SEAT	1991-1996	17	1
Polo/Polo Coupe	1990-1994	18	2
LT, LT 4x4 (28-55)	1989-1995	8, 20, 13	1
Jetta	1989-1991	21	2
Jetta 89	1988-1989	21	2
GOLF,JETTA (MEX)	1987-1992	20	2
Jetta 88	1987-1988	21	2
AUDI COUPE/2 88	1987-1987	30	2
Jetta 87	1986-1987	21	2
Golf/Jetta syn, Rallye	1985-1991	21	2
Jetta 86	1985-1986	21	2
Audi 4000 S	1984-1987	30	2
Audi 4000 S/CS qu.	1984-1987	34	2
AUDI COUPE QUATTRO/2	1984-1987	30	2
Jetta 85	1984-1985	21	2
Scirocco	1983-1989	21	2
Audi 4000 S qu. 84	1983-1984	34	2
CADDY	1982-1992	11	2
LT, LT 4x4 (28-55)	1982-1989	8, 20, 13	1
POLO/COUPE/DERBY	1981-1990	18	2
Audi Coupe	1981-1987	30	2
Jetta	1981-1984	24	2
Audi 4000	1981-1984	30	2
Scirocco	1981-1983	21	2
Audi 5000	1981-1982	31, 33, 32	1
Scirocco	1981-1981	21	2
PASSAT,-VARIANT/2 81	1980-1981	21	2
Jetta 81	1980-1981	24	2
Scirocco	1980-1981	21A	2
Audi 5000 Turbo	1979-1982	28, 33	1
Audi 5000/Wagon	1979-1981	31, 33, 32	1
Scirocco	1978-1980	21A	2
Dasher	1977-1980	23	2
Audi 5000	1977-1979	23, 33	1
Audi Fox	1976-1978	17C	2
LT 28-40 F>28-d-007273	1975-1982	8, 20, 13	1
POLO,DERBY,AUDI 50	1974-1981	21	2
POLO,DERBY,AUDI 50	1974-1981	21	2
Dasher	1973-1977	17	2
Audi Fox	1972-1976	17C	2
TIPO 2 (MEX)	1971-2001	34	X
Type 2	1967-1979	36, 32	X

Other markets (14)

Vehicle	Years	Pos.	Qty
JETTA (FAW) 91>	1991-	21	2
Golf/Jetta "USA","MEX"89>92	1988-1992	21	2
Quantum	1986-1988	21	2
Quantum syncro	1985-1988	21	2
Quantum 86	1985-1986	21	2
Quantum 85	1984-1985	21	2
Rabbit Conv./Cabrio	1983-1993	23A	1
Quantum	1981-1984	21	2
Rabbit Conv.	1981-1983	23A	2
Rabbit Conv. 81	1980-1981	23A	2
Rabbit/Jetta	1978-1980	23	X
Rabbit Conv.	1978-1980	23A	2
Rabbit	1976-1978	19	X
Rabbit	1974-1976	19	X
