About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

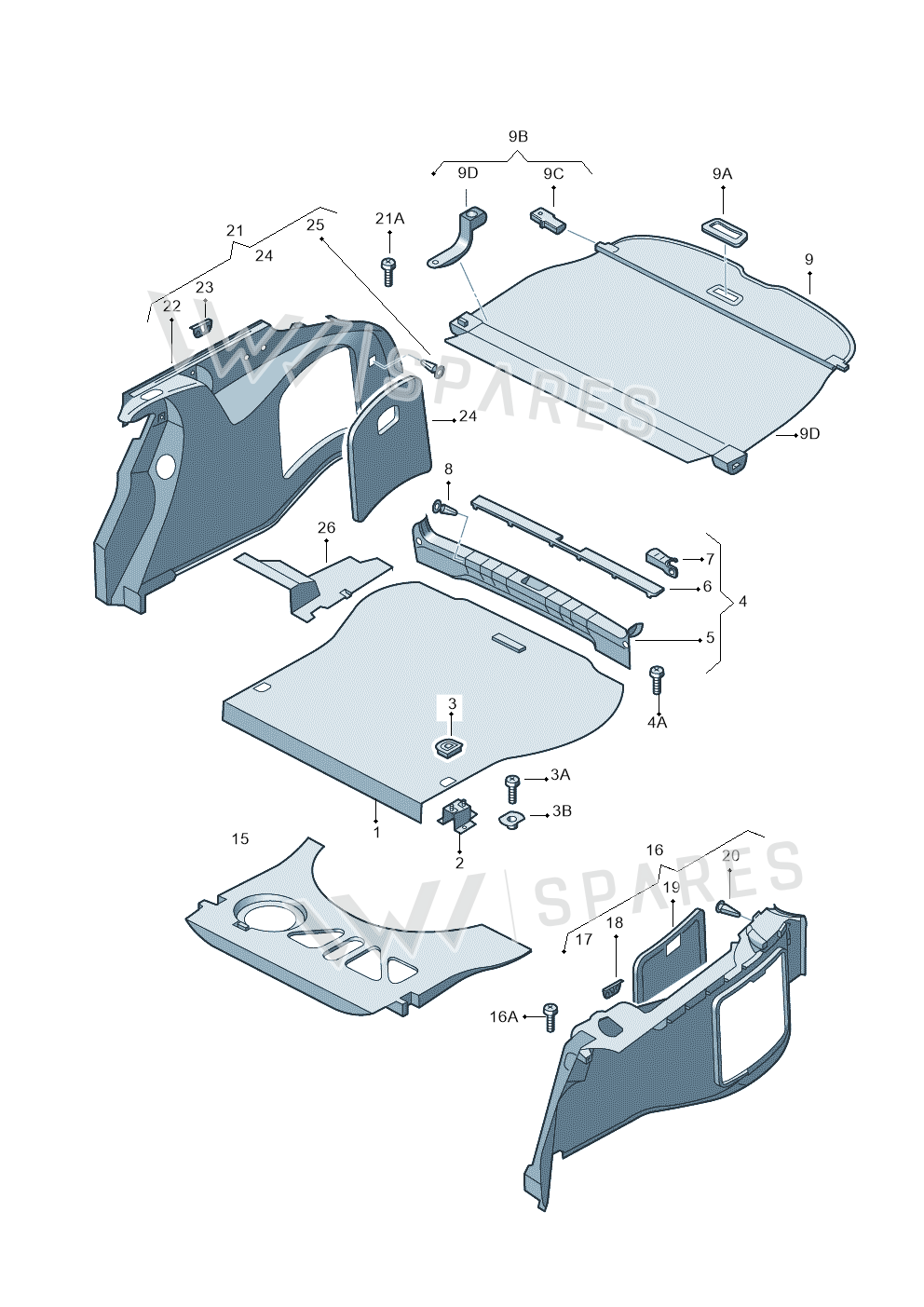

6 vehiclesCountersunk Bolt — locate Countersunk Bolt in the official exploded view and explore the surrounding assembly.
Parts in this assembly28
- 1Floor 8D9863462A
- 2BracketRight8D9864202
- 2BracketLeft8D9864201B
- 3Eyelet 8D9864203
- 3AScrew N0141395
- 3ABolt N90480801
- 3AScrew N0141335
- 3BPart N0114052
- 4Cover 8D9864483
- 4ABolt N90775001
- 4APart 811807577C
- 6Trim 8D9864487
- 7BufferRight8D9863238
- 7BufferLeft8D9863237
- 8Clip 4B0867276A
- 9Roller 8D9863553A
- 9Roller 8D9863553B
- 9Roller 8D9863553
- 9BRepair Kit 8D9898553B
- 15Filler Piece 8D9863599
- 16TrimLeft8D9863879
- 16AScrew N0139713
- 18SupportLeft8D9867433
- 19CoverLeft8D9863989
- 21TrimRight8D9863880
- 23SupportRight8D9867434
- 24CoverRight8D9863990
- 26TrayLeft8D9864897
Vehicle fitment table6
Europe (5)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Audi A4 F>8D-W-.. | 1995-1997 | 3A | 4 | |
| Audi A4 qu. F>8D-W-.. | 1995-1997 | 3A | 4 | |
| Audi 90 | 1993-1995 | 8 | 2 | |
| Audi 90 qu. | 1992-1994 | 8 | 2 | |
| Campmobile-LT | 1982-1995 | 18B, 14B | 20 | 217 009, |
Other markets (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| Vanagon | 1979-1985 | 5 | 4 |
Diagrams & fitment data powered by oemdiagrams.com
Countersunk Bolt is fitted on: Audi A4 F>8D-W-.. 1995-1997; Audi A4 qu. F>8D-W-.. 1995-1997; Audi 90 1993-1995; Audi 90 qu. 1992-1994; Campmobile-LT 1982-1995; Vanagon 1979-1985.
