N0402371 Hexagon Bolt
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

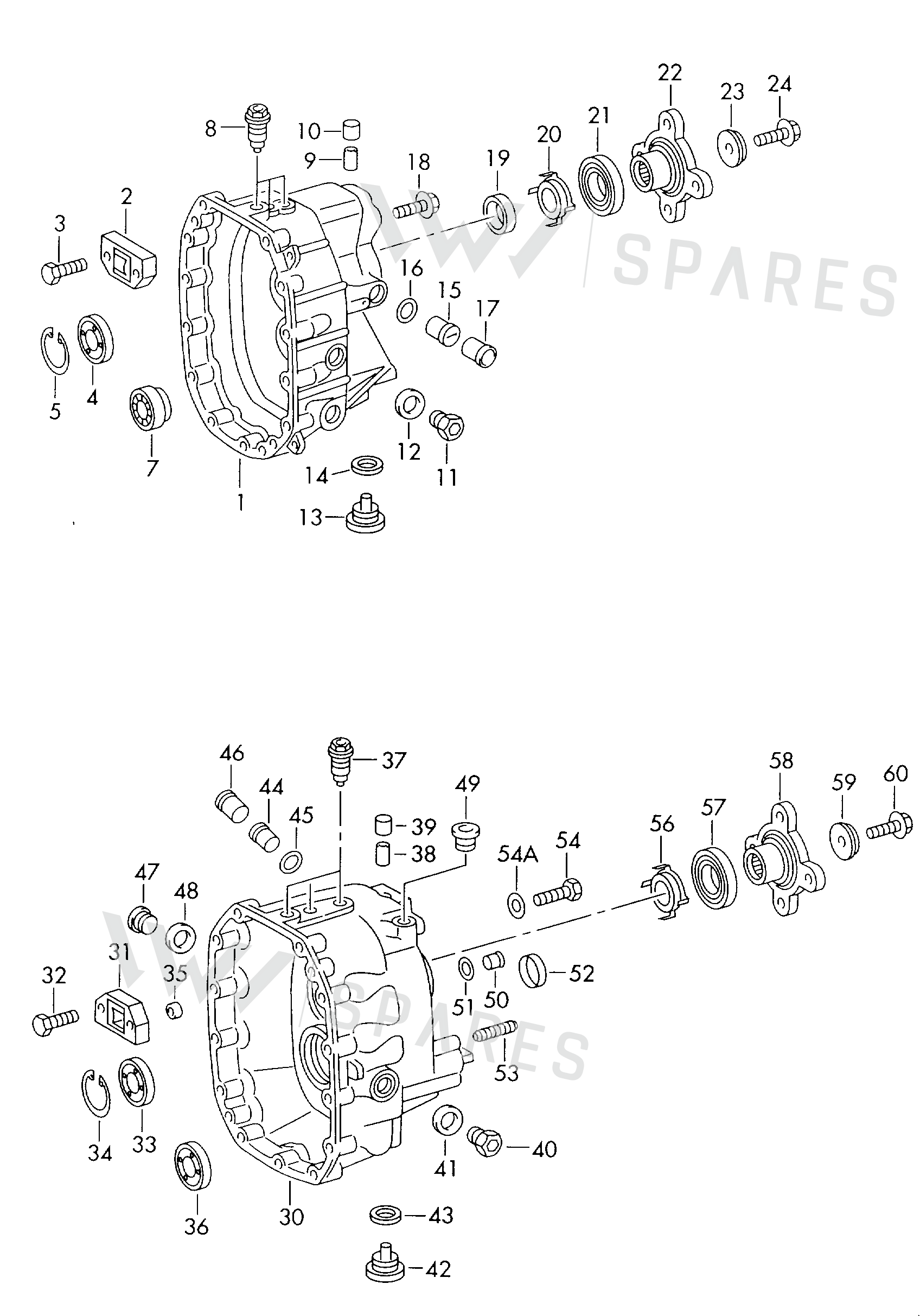

23 vehiclesHexagon Bolt — locate Hexagon Bolt in the official exploded view and explore the surrounding assembly.
Standard part (a norm part such as a bolt, nut or clip) — used across many models; the vehicle list shows where this exact number is fitted.
Parts in this assembly31
- 1Cover 000301211C
- 1Cover 000301211
- 2Guide 000301090D
- 3Bolt N0102478
- 8Screw 000301241
- 9Sleeve 000301473
- 10Ap Cap For Venting The Gearbox Cap For Venting 000301485
- 11Screw 000301127
- 12Seal Ring N0438092
- 13Plug 000301141
- 16Seal Ring 000409133
- 17Bush 000409639
- 19Sleeve 000409267
- 20Drivewheel 000409182A
- 20Drivewheel 000409182
- 21Seal Washer 000409189A
- 22Flange 000409271A
- 23Washer 000409164
- 24Bolt N10454301
- 30Part 000301211D
- 32Bolt N0103404
- 35Ring 000409227
- 47Screw N0160275
- 48Seal Ring N0138493
- 49Screw N0160291
- 50Bungs 000301115
- 51Seal Ring 000301185
- 52Cover 000301252
- 53Bolt N90815101
- 54Bolt N0102464
- 54AWasher N01155811
Vehicle fitment table23
Europe (21)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| LT, LT 4X4 | 2003-2006 | 18 | |
| LT, LT 4X4 | 1996-2003 | 18 | 12 |
| Carrera 4 Cabrio | 1993-1998 | 5 | 1 |
| TOLEDO SEAT | 1991-1996 | 22, 17 | 1 |
| Passat syncro | 1991-1993 | 26 | 1 |
| Passat | 1991-1993 | 26 | 1 |
| Corrado | 1989-1995 | 26 | 1 |
| Passat | 1989-1991 | 26 | 1 |
| Jetta | 1989-1991 | 26 | 1 |
| Carrera 4 Coupe | 1988-1994 | 5 | 1 |
| Jetta 89 | 1988-1989 | 26 | 1 |
| GOLF,JETTA (MEX) | 1987-1992 | 22 | 1 |
| Jetta 88 | 1987-1988 | 26 | 1 |
| Carrera Cabrio | 1986-1989 | 9 | 1 |
| Jetta 87 | 1986-1987 | 26 | 1 |
| Golf/Jetta syn, Rallye | 1985-1991 | 26 | 1 |
| Jetta 86 | 1985-1986 | 26 | 1 |
| Jetta 85 | 1984-1985 | 26 | 1 |
| Scirocco | 1983-1989 | 27, 26 | 1 |
| Carrera Cabrio | 1983-1986 | 9 | 1 |
| Jetta | 1981-1984 | 27 | 1 |
Other markets (2)
| Vehicle | Years | Pos. | Qty |
|---|---|---|---|
| Golf/Jetta "USA","MEX"89>92 | 1988-1992 | 26 | 1 |
| Rabbit Conv./Cabrio | 1983-1993 | 27, 26 | 1 |
Diagrams & fitment data powered by oemdiagrams.com
Hexagon Bolt is fitted on: LT, LT 4X4 2003-2006; LT, LT 4X4 1996-2003; Carrera 4 Cabrio 1993-1998; TOLEDO SEAT 1991-1996; Passat syncro 1991-1993; Passat 1991-1993; Corrado 1989-1995; Passat 1989-1991; Jetta 1989-1991; Carrera 4 Coupe 1988-1994; Jetta 89 1988-1989; GOLF,JETTA (MEX) 1987-1992; Jetta 88 1987-1988; Carrera Cabrio 1986-1989; Jetta 87 1986-1987; Golf/Jetta syn, Rallye 1985-1991; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; Carrera Cabrio 1983-1986; Jetta 1981-1984; Golf/Jetta "USA","MEX"89>92 1988-1992; Rabbit Conv./Cabrio 1983-1993.
