N0420011 Spring Ring
Special order item. Delivery time may vary.
About This Part
Discontinued by the manufacturer
This part number has been discontinued and can no longer be ordered. Contact us and we will look for an alternative.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VAG is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

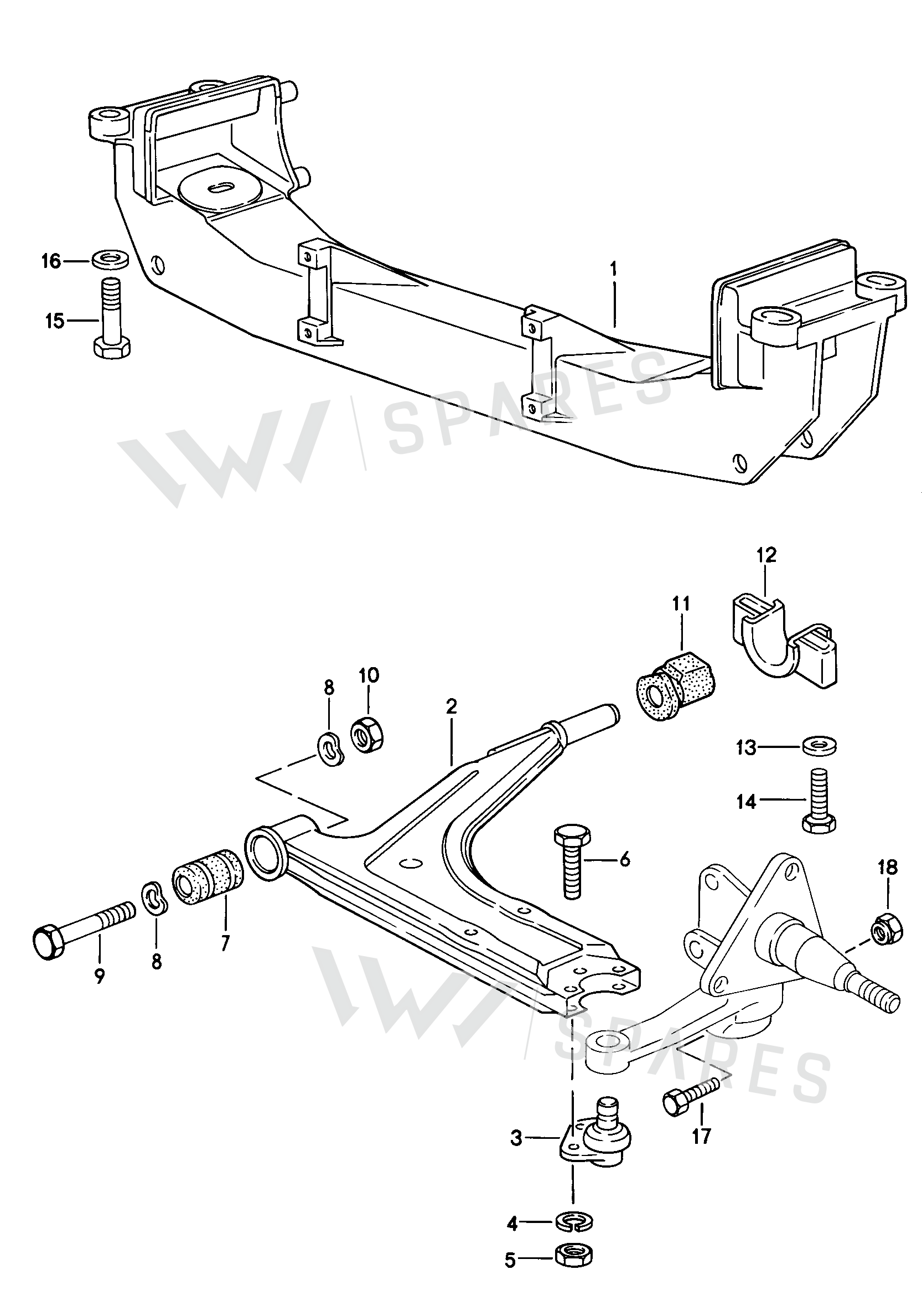

35 vehiclesSpring Ring — locate Spring Ring in the official exploded view and explore the surrounding assembly.
Parts in this assembly24
- 1Cross Member 94434110306
- 1Cross Member 94534110304
- 2Wishbone 171407153D
- 3Joint 171407365G
- 5Part N0110077
- 6Bolt N0402043
- 7Rubber Bush 171407182D
- 8Part 90002801402
- 8Washer 90002801403
- 9Bolt N0101904
- 10Ut Hexagon Nut Self-locking Hexagon Nut N0211311
- 11Rubber Bush 477407181A
- 11Rubber Bush 477407181B
- 12Clamp 477407169
- 13Washer 477407425
- 14Bolt N0403211
- 15Bolt N0101831
- 15Bolt N10628601
- 16Washer 99902507401
- 16Washer 99902507402
- 17Bolt 90007437202
- 17Part N0104456
- 18Part N0211302
- 18Ut Hexagon Nut Self-locking Hexagon Nut N0221492
Vehicle fitment table35
Europe (25)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| S Coupe | 1985-1988 | 4 | 6 | |
| Jetta 86 | 1985-1986 | 9 | 3 | |
| Jetta 85 | 1984-1985 | 9 | 3 | |
| Scirocco | 1983-1989 | 9, 41 | 3 | |
| CADDY | 1982-1992 | 21, 41 | X | |
| 944 Coupe | 1981-1985 | 4 | 6 | |
| Jetta | 1981-1984 | 9, 15 | 3 | |
| Scirocco | 1981-1983 | 15 | 6 | |
| Scirocco | 1981-1981 | 15, 9 | 6 | |
| Jetta 81 | 1980-1981 | 9, 15 | 3 | |
| Scirocco | 1980-1981 | 15, 9 | 6 | |
| 924 S | 1979-1985 | 4 | 6 | |
| Audi 5000 Turbo | 1979-1982 | 21 | 2 | |
| Scirocco | 1978-1980 | 15, 26 | 6 | |
| Scirocco | 1976-1978 | 15, 17 | 6 | |
| LT 28-40 F>28-d-007273 | 1975-1982 | 25 | 4 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 31 | 2 | |
| POLO,DERBY,AUDI 50 | 1974-1981 | 31 | 2 | |
| Scirocco | 1974-1976 | 15, 17 | 6 | FB,FD,FH,FK, |
| TIPO 2 (MEX) | 1971-2001 | 23 | 6 | |
| K 70 | 1970-1975 | 10 | 14 | |
| Type 2 | 1967-1979 | 17 | 6 | |
| KAEFER (MEX.) | 1964-2003 | 21 | 6 | |
| Type 3 | 1961-1973 | 38 | 2 | |
| VW 1200/1300 F>>118 | 1947-1977 | 4 | 6 |
Other markets (9)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| CITI GOLF "ZA"M.96> | 1996- | 15, 41 | 6 | |
| CADDY-PICKUP "ZA" 96> | 1995- | 15, 41 | 6 | |
| Rabbit Conv./Cabrio | 1983-1993 | 9, 41 | 3 | |
| Rabbit Conv. | 1981-1983 | 15, 9 | 6 | |
| Rabbit Conv. 81 | 1980-1981 | 15, 9 | 6 | |
| Rabbit/Jetta | 1978-1980 | 26, 15 | 3 | FA,FJ,GF,GG |
| Rabbit Conv. | 1978-1980 | 15, 26 | 6 | |
| Rabbit | 1976-1978 | 17, 30 | 3 | |
| Rabbit | 1974-1976 | 17, 30 | 3 | FA,FJ |
Platform / generic diagrams (1)
| Vehicle | Years | Pos. | Qty | Remark |
|---|---|---|---|---|
| 477 platform | 20 | 6 |
Diagrams & fitment data powered by oemdiagrams.com
Spring Ring is fitted on: S Coupe 1985-1988; Jetta 86 1985-1986; Jetta 85 1984-1985; Scirocco 1983-1989; CADDY 1982-1992; 944 Coupe 1981-1985; Jetta 1981-1984; Scirocco 1981-1983; Scirocco 1981-1981; Jetta 81 1980-1981; Scirocco 1980-1981; 924 S 1979-1985; Audi 5000 Turbo 1979-1982; Scirocco 1978-1980; Scirocco 1976-1978; LT 28-40 F>28-d-007273 1975-1982; POLO,DERBY,AUDI 50 1974-1981; Scirocco 1974-1976; TIPO 2 (MEX) 1971-2001; K 70 1970-1975; Type 2 1967-1979; KAEFER (MEX.) 1964-2003; Type 3 1961-1973; VW 1200/1300 F>>118 1947-1977; CITI GOLF "ZA"M.96> 1996-; CADDY-PICKUP "ZA" 96> 1995-; Rabbit Conv./Cabrio 1983-1993; Rabbit Conv. 1981-1983; Rabbit Conv. 81 1980-1981; Rabbit/Jetta 1978-1980; Rabbit Conv. 1978-1980; Rabbit 1976-1978; Rabbit 1974-1976; 477 platform.
